Copper QSFP+ Cable | 40 Gbps | Passive DAC | Lifetime Warranty

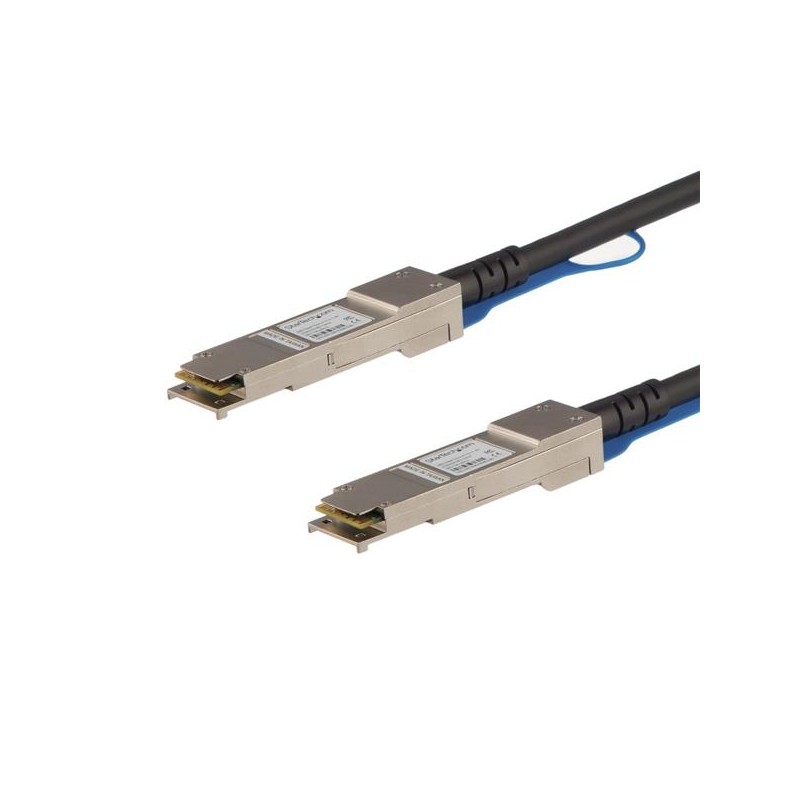

The QSFP40GPC5M is an MSA compliant direct-attach copper QSFP+ cable that’s designed, programmed and tested to work in 40G network deployments. It delivers dependable 40 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.
This passive Twinax cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. The cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
At 5 meters long and designed for high-speed performance, this copper QSFP+ cable is ideal for medium-distance applications such as across-rack network switch or server connections.
StarTech.com SFP Cables
All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- Delivers reliable 40Gbps connections for 40GBase-T compliant networks
- StarTech.com SFP cables are backed by a lifetime warranty
- Uses a cost-effective cabling alternative to fiber-optic setups
AWG wire size |
28 |
Cable colour |
Black |
Cable length |
5 m |
Certification |
CE, FCC |
Connector 1 |
QSFP+ |
Connector 2 |
QSFP+ |
Data transfer rate |
40000 Mbit/s |
Depth |
5000 mm |
Height |
13 mm |
Input impedance |
100 Ω |
Jacket material |
Polyvinyl chloride (PVC) |
Operating temperature (T-T) |
0 - 70 °C |
Package depth |
320 mm |
Package height |
25 mm |
Package weight |
464 g |
Package width |
250 mm |
Plug and Play |
Y |
Quantity per pack |
1 pc(s) |
RoHS compliance |
Y |
Storage temperature (T-T) |
-40 - 80 °C |
Weight |
446 g |
Width |
18 mm |
Connector gender |
Male connector/Male connector |
Specific References
- EAN13
- 0065030875332
Download
StarTech.com MSA Compliant QSFP+ Direct-Attach Twinax Cable - 5 m (16.4 ft) Data Sheet
Download (133.44KB)
