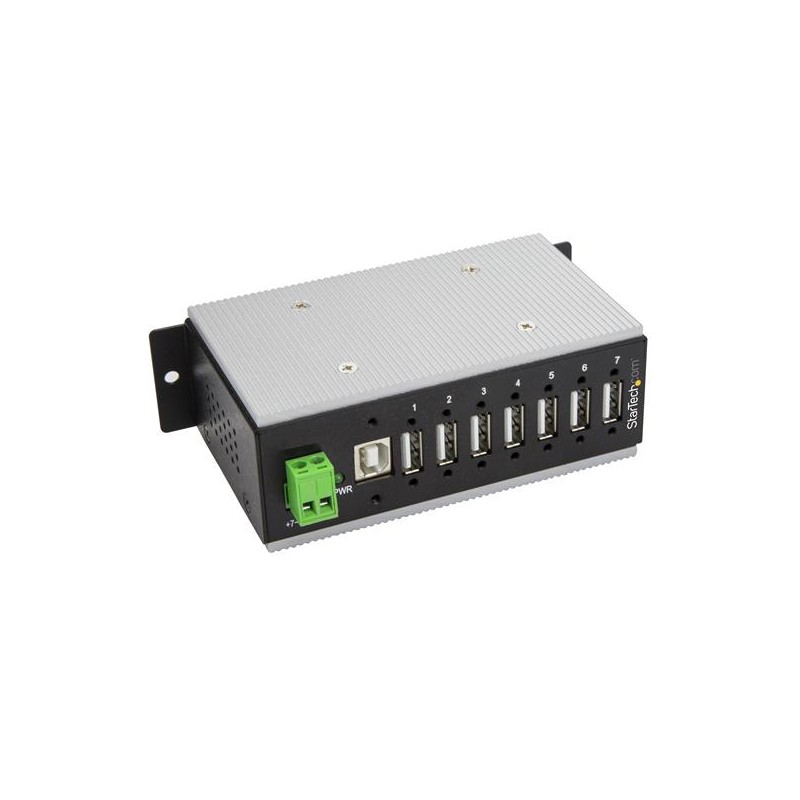

StarTech.com 7-Port Industrial USB Hub - USB 2.0 - 15kV ESD Protection
  • StarTech.com 7-Port Industrial USB Hub - USB 2.0 - 15kV ESD Protection
  • StarTech.com 7-Port Industrial USB Hub - USB 2.0 - 15kV ESD Protection
  • StarTech.com 7-Port Industrial USB Hub - USB 2.0 - 15kV ESD Protection
  • StarTech.com 7-Port Industrial USB Hub - USB 2.0 - 15kV ESD Protection
Add seven USB 2.0 ports to a computer system located in a harsh operating environment, with this DIN rail or surface-mountable metal hub

This TAA compliant 7-port industrial USB hub provides seven USB 2.0 ports to connect your devices. The USB 2.0 hub can be surface or DIN rail mounted, providing convenient USB connectivity in a work area, server room, or industrial environment.

Built for tough environments

The USB hub, with its rugged metal housing and IP30 protection rating, is built to meet the harsh demands of industrial environments. To keep connections secure and protect against accidental disconnections, the hub supports screw-locking cables. The 15kV ESD Protection (Level 4) reduces the risk of disruption caused by high static industrial environments, which can lead to costly service calls and downtime. To ensure maximum performance in areas with extreme temperature variances, the industrial USB hub provides an extended temperature range (-40°C - 85°C).

Flexible power options

The hub's wide-range 7-48V DC terminal block input gives you the flexibility to power the hub as required, based on your own power input capabilities.

Easy setup and use

For easy port access, the 7-port industrial USB hub can be surface or wall-mounted, and includes an optional DIN rail mount kit. The ports are plug-and-play making it easy to connect printers, cameras, sensors and other devices. Each port in the USB hub also features its own Transaction Translator (TT), to assist with load balancing and ensure each port can operate at peak performance.

The HB20A7AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- TAA Compliant
- Expand your USB connectivity with seven USB 2.0 ports
- Protect your installation with 15kV ESD Protection Level 4
Cables included USB
Certification CE, FCC, TAA, RoHS
Chipset Genesys Logic - GL852GT
Data transfer rate 480 Mbit/s
Depth 112 mm
Height 63 mm
Host interface USB 2.0 Type-B
Hub interfaces USB 2.0
Input current 4 A
Input voltage 7 - 48 V
LED indicators Power
Manual Y
Material Metal
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) -40 - 85 °C
Package depth 242 mm
Package height 55 mm
Package weight 700 g
Package width 166 mm
Plug and Play Y
Ports quantity 7
Power consumption (typical) 28 W
Storage temperature (T-T) -40 - 85 °C
Surge protection Y
Terminal block port Y
USB 2.0 ports quantity 7
Weight 500 g
Width 43 mm
Product colour Black
DIN rail kit included Y

Specific References

EAN13
0065030878616

HB20A7AME.pdf

StarTech.com 7-Port Industrial USB Hub - USB 2.0 - 15kV ESD Protection Data Sheet

StarTech.com 7-Port Industrial USB Hub - USB 2.0 - 15kV ESD Protection

StarTech.com 7-Port Industrial USB Hub - USB 2.0 - 15kV ESD Protection
Out of Stock
£217.85
£181.54 Ex. VAT
Reference: HB20A7AME
