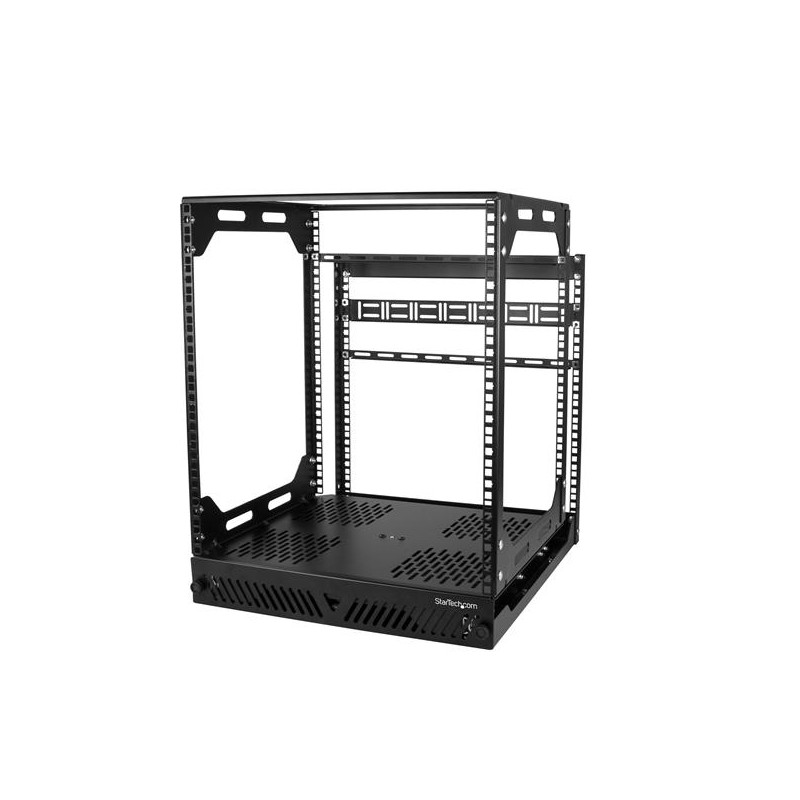

This 12U slide-out server rack helps you save space while keeping your rack-mount equipment organized and accessible. The compact open-frame rack is easy to pull out and rotate, which makes it easy to install and access your equipment or perform maintenance when needed.
The rack supports a total load capacity of 125 lb. (56.7 kg).
Save space in your office or server room
The rack helps you save valuable floor space. It’s designed for installation in small areas such as below a table or in a cabinet or cupboard. Its versatility makes this the perfect rack for storing your servers in a boardroom, small office/home office, restaurant or any place where space is at a premium.
Keep your equipment cool and accessible
For easy equipment installation and maintenance, the 12U server rack’s base is on sliding rails, which means it’s easier to access the back of your equipment. With its open-frame design, the rack not only maximizes accessibility but also offers unobstructed airflow to your equipment, providing passive cooling to keep your rack-mounted equipment running at optimal temperatures.
Save money on shipping
The rack comes in a flat-packed box, which reduces shipping volume and significantly lowers cost when compared to racks that ship fully assembled. Plus, because the rack is packaged efficiently, it’s easy to transport and store.
The PORACK12U is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Cable management |
Y |
Certification |
RoHS |
Colour of product |
Black |
Compliance industry standards |
EIA-310-D, DIN 41494, EIA/ECA-310-E, IEC 60297-3-100 |
Depth |
568 mm |
Height |
615 mm |
Inner height |
534 mm |
Inner width |
451 mm |
Manual |
Y |
Material |
Steel |
Mounting depth (max) |
425 mm |
Mounting kit |
Y |
Package depth |
600 mm |
Package height |
220 mm |
Package weight |
24900 g |
Package width |
550 mm |
Rack capacity |
12U |
Type |
Freestanding rack |
Weight |
23100 g |
Width |
487 mm |
Frame type |
open |
Maximum weight capacity |
56.7 kg |
Design |
4-post |
Castor wheels |
N |
Nuts included |
Y |
Number of nuts |
48 |
Front door key lock |
N |
Adjustable mounting rails |
N |
Mounting hole shape |
Square |
Specific References
- EAN13
- 0065030873949
StarTech.com 12U Slide-Out Server Rack - Rotating - 4-Post Rack Data Sheet
