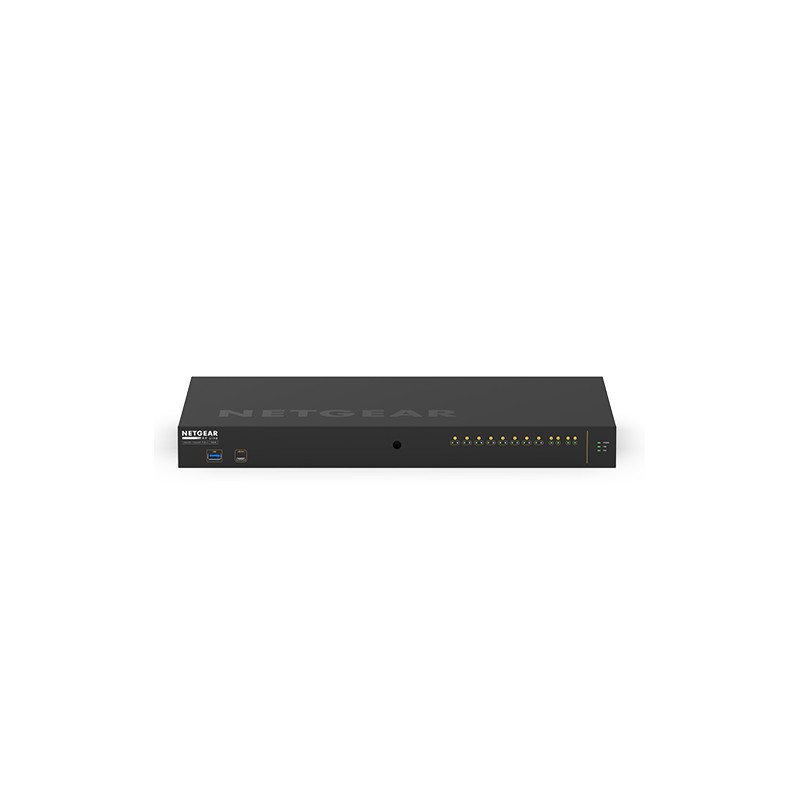

Netgear M4250-10G2XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
  • Netgear M4250-10G2XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
  • Netgear M4250-10G2XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
  • Netgear M4250-10G2XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
  • Netgear M4250-10G2XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
  • Netgear M4250-10G2XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
  • Netgear M4250-10G2XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
  • Netgear M4250-10G2XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.



M4250 Support for Audio Video Bridging (AVB)

One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
10G support No
Access Control List (ACL) Y
Yes
Yes
Basic switching RJ-45 Ethernet ports quantity 10
10
10
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (10/100/1000)
Broadcast storm control Y
Yes
Yes
Built-in processor Y
Yes
Yes
Depth 200 mm
Form factor 1U
Full duplex Y
Yes
Yes
Heat dissipation 2859.91 BTU/h
2859.91 BTU/h
2859.91 BTU/h
Height 43.2 mm
IGMP snooping Y
Yes
Yes
Internal memory 2048 MB
2048 MB
2048 MB
Jumbo frames support Y
Yes
Yes
Latency (1 Gbps) 1.837 µs
1.837 µs
1.837 µs
LED indicators PoE, Power, Status
PoE,Power,Status
PoE, Power, Status
Link aggregation Y
Yes
Yes
MAC address table 16000 entries
16000 entries
16000 entries
Mean time between failures (MTBF) 947871 h
947871 h
947871 h
Multicast support Y
Yes
Yes
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Noise level 66.23 dB
66.23 dB
66.23 dB
Non-operating altitude 0 - 3000 m
0 - 3000 m
0 - 3000 m
Number of queues 8
8
8
Number of VLANs 4093
4093
4093
Operating altitude 0 - 3000 m
0 - 3000 m
0 - 3000 m
Operating relative humidity (H-H) 0 - 90 %
0 - 90%
0 - 90%
Operating temperature (T-T) 0 - 50 °C
Packet buffer memory 16 MB
16 MB
16 MB
Power consumption (typical) 837.7 W
837.7 W
837.7 W
Power over Ethernet (PoE) Yes
Yes
Yes
Power over Ethernet plus (PoE+) ports quantity 8
8
Processor frequency 1250 MHz
1250 MHz
1250 MHz
Processor model ARM Cortex-A9
ARM Cortex-A9
ARM Cortex-A9
Quality of Service (QoS) support Y
Yes
Yes
Rack mounting Yes
Yes
Yes
Rate limiting Y
Yes
Yes
Spanning tree protocol Y
Yes
Yes
SSH/SSL support Y
Yes
Yes
Storage relative humidity (H-H) 0 - 95 %
0 - 95%
0 - 95%
Storage temperature (T-T) -20 - 70 °C
-20 - 70 °C
-20 - 70 °C
Store-and-forward Y
Yes
Yes
Switch layer L2/L3
L2/L3
L2/L3
Switch type Managed
Managed
Managed
Switching capacity 60 Gbit/s
60 Gbit/s
60 Gbit/s
Throughput 44.64 Mpps
44.64 Mpps
44.64 Mpps
Total Power over Ethernet (PoE) budget 720 W
720 W
720 W
VLAN support Y
Yes
Yes
Weight 3.83 kg
Width 440 mm
Jumbo frames 12000
12000
12000
Installed SFP modules quantity 0
0
SFP+ module slots quantity 2
2
2
BPDU filtering/protection Y
Yes
Yes
Loop protection Y
Yes
Yes
Authentication MAC-based authentication
MAC-based authentication
MAC-based authentication
Installed SFP+ modules quantity 0
0
Authentication type RADIUS
RADIUS
RADIUS
Product colour Black
IPv4 multicast entries 2000
2000
2000
IPv6 multicast entries 2000
2000
2000
Virtual LAN features MAC address-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
DHCP features DHCP Option 82,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 relay,DHCPv6 server,DHCPv6 snooping
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Harmonized System (HS) code 85176990

Specific References

EAN13
0606449149623

GSM4212UX-100EUS.pdf

NETGEAR M4250-10G2XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black Data Sheet

Netgear M4250-10G2XF-PoE++

60 Gbps, 8x 1G PoE+ RJ-45, 2x 1G RJ-45, 2x SFP+, 720 W PoE, 440x200x43.2 mm
In Stock
£1,502.48
£1,252.07 Ex. VAT
Reference: GSM4212UX-100EUS
Quantity
