The GS110EMX and GS110MX come with 8 Gigabit Ethernet ports and 2 uplink 10-Gigabit/Multi-Gigabit (5-speed) ports that provide either 100 Megabit, 1-Gigabit, 2.5-Gigabit, 5-Gigabit or 10-Gigabit connectivity.
The two uplink ports automatically detects which speed is needed by the connected device and provides the adequate speed. Moreover these two Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6 wiring, therefore reducing wiring costs and hassle.
The GS110MX and GS110EMX offer flexible mounting options - they can be mounted in a rack, on a wall or can be used as a desktop switch. Moreover the compact and fanless design make the GS110MX and GS110EMX ideal for any home or business environment.
The two uplink ports automatically detects which speed is needed by the connected device and provides the adequate speed. Moreover these two Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6 wiring, therefore reducing wiring costs and hassle.
The GS110MX and GS110EMX offer flexible mounting options - they can be mounted in a rack, on a wall or can be used as a desktop switch. Moreover the compact and fanless design make the GS110MX and GS110EMX ideal for any home or business environment.
| 10G support | Yes |
| AC adapter included | Y |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cable types supported | Cat5,Cat5e,Cat6,Cat6a,Cat7 |
| Certification | 47 CFR FCC Part 15, SubpartB, Class B\nICES-003:2016 Issue 6, Class B\nANSI C63.4:2014\nN 55032:2012 +AC:2013 / CISPR 32:2012 / AS/NZS CISPR 32:2013, Class B\nEN 55032:2015 +AC:2016 / CISPR 32:2015 +COR1:2016 / AS/NZS CISPR 32:2015, Class B\nEN 61000-3-2: |
| Depth | 102 mm |
| Electromagnetic compatibility | Class B |
| Flow control support | Y |
| Forwarding rate | 41.664 Mpps |
| Full duplex | Y |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Heat dissipation | 45.14 BTU/h |
| Height | 27 mm |
| Housing material | Metal |
| Jumbo frames support | Y |
| Latency (1 Gbps) | 4 μs |
| Latency (10 Gbps) | 3 µs |
| Latency (10-100 Mbps) | 7 µs |
| LED indicators | Link,Power,Speed |
| MAC address table | 16000 entries |
| Networking standards | IEEE 802.1p,IEEE 802.3az,IEEE 802.3x |
| Non-operating altitude | 0 - 3000 m |
| Number of queues | 8 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Packet buffer memory | 0.128 MB |
| Power consumption (max) | 13.2 W |
| Power consumption (typical) | 4.8 W |
| Power over Ethernet (PoE) | No |
| Quick start guide | Y |
| Rack mount kit | Y |
| Rack mounting | Yes |
| Rubber feet | Y |
| Safety | UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, AS/NZS 60950.1:2015 |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Switch type | Unmanaged |
| Switching capacity | 56 Gbit/s |
| VLAN support | N |
| Wall mountable | Y |
| Wall mounting kit | Y |
| Weight | 740 g |
| Width | 236 mm |
| Jumbo frames | 10240 |
| Power connector | DC-in jack |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Product colour | Black |
Specific References
- EAN13
- 0606449128888

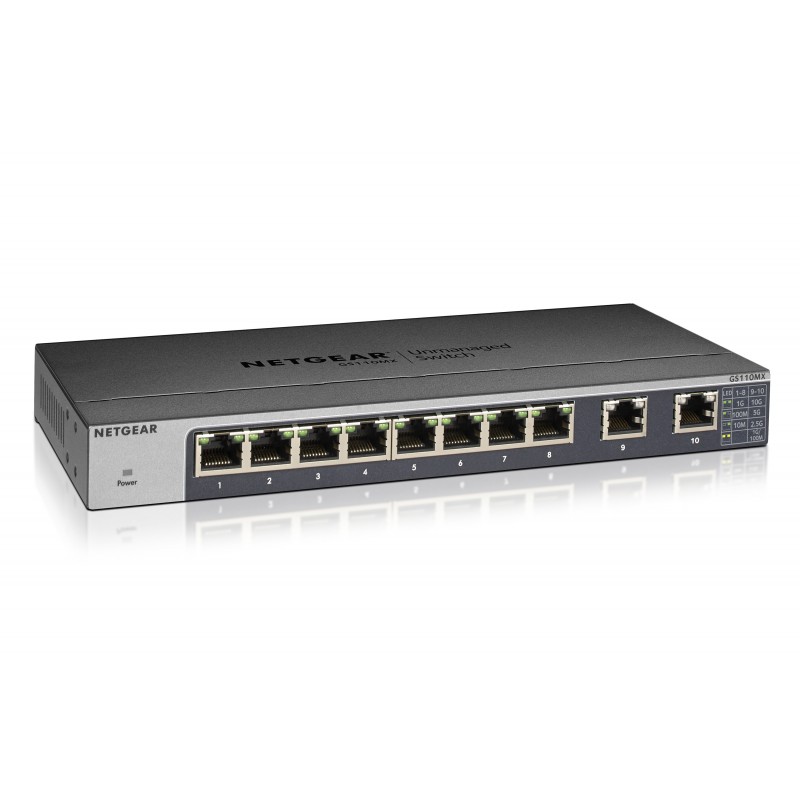

Netgear GS110MX
8-port Gigabit Switch with 10-Gigabit/Multi-Gigabit Uplinks, Unmanaged, 56 Gbps, Fanless, United Kingdom, 0.74 kg
£258.51
£215.43 Ex. VAT
8-port Gigabit Switch with 10-Gigabit/Multi-Gigabit Uplinks, Unmanaged, 56 Gbps, Fanless, United Kingdom, 0.74 kg
