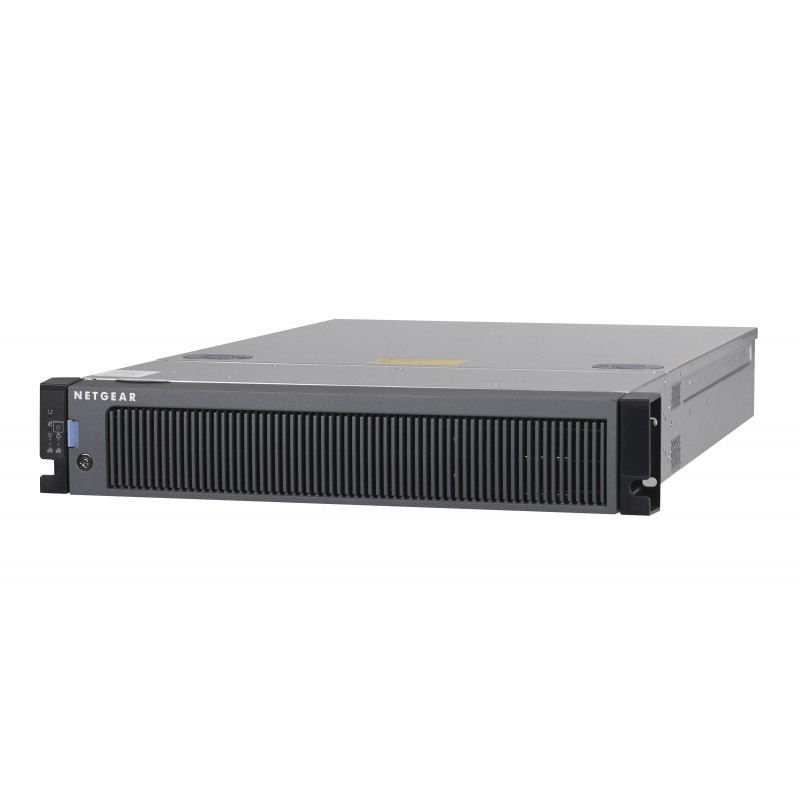

Netgear RR4312X4-20000S NAS/storage server E3-1245V5 Ethernet LAN Rack (2U) Black
  • Netgear RR4312X4-20000S NAS/storage server E3-1245V5 Ethernet LAN Rack (2U) Black
  • Netgear RR4312X4-20000S NAS/storage server E3-1245V5 Ethernet LAN Rack (2U) Black
  • Netgear RR4312X4-20000S NAS/storage server E3-1245V5 Ethernet LAN Rack (2U) Black
  • Netgear RR4312X4-20000S NAS/storage server E3-1245V5 Ethernet LAN Rack (2U) Black
  • Netgear RR4312X4-20000S NAS/storage server E3-1245V5 Ethernet LAN Rack (2U) Black
  • Netgear RR4312X4-20000S NAS/storage server E3-1245V5 Ethernet LAN Rack (2U) Black
  • Netgear RR4312X4-20000S NAS/storage server E3-1245V5 Ethernet LAN Rack (2U) Black
ReadyNAS 3312 and 4312X are powered by a 5th generation Intel Xeon Enterprise Server Processor. The RR4312X has two built-in 10Gigabit Ethernet interfaces to meet the throughput speed of next generation network in businesses of all sizes.



Application data, virtual images, client files, email… the types of data central to running a successful business can seem endless. With ReadyNAS you finally have an advanced and easy-to-use solution for centralizing, securing and controlling access to your digital assets. Way more than just simple unified (NAS and SAN) storage for your company, ReadyNAS allows you to do more than you ever thought you could afford by pairing the latest in performance with innovative efficiency technologies such as unlimited snapshots, thin provisioning and cloud-managed replication.



Every networked attached storage (NAS) device from NETGEAR runs on the revolutionary ReadyNAS operating system. This custom-built OS protects stored data with XRAID2™ automatic expansion and offers continuous data protection with unlimited snapshots.



Real-time anti-virus and native encryption comes standard. The RR4312 Series offers two builtin 10GbE ports, requiring no additional installation and offering compatibility assurance.



Designed specifically for the unique needs of business users, ReadyNAS devices utilize proprietary ReadyCLOUD™ technology for cloud-based discovery, provisioning and ongoing management. In addition, these devices are virtualization-ready with iSCSI support, thin provisioning capability and certification with VMware and Microsof.



To maximize storage capacity, ReadyNAS 4312X features two SAS interfaces for expansion chassis support. Expansion chassis from NETGEAR, EDA4000 and EDA2000, offer 24 and 12 bay expansion respectively.
AC input frequency 50/60 Hz
AC input voltage 100-240 V
Access Control List (ACL) Y
Backup features Cloud
Backup function Y
Browser supported Microsoft Internet Explorer 9+, Mozilla Firefox 14+, Google Chrome 20+, Apple Safari 5+
Built-in BitTorrent client Y
Bundled software ReadyCLOUD-PC-App
Bus type DMI3
Certification FCC, CE, VCCI
Chassis type Rack (2U)
Cooling type active
Copper ethernet cabling technology 10GBASE-T
CPU configuration (max) 1
Depth 707 mm
Device class Large Enterprise Business
DHCP client Y
Embedded options available N
Enhanced Intel SpeedStep Technology Y
eSATA ports quantity 2
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 6
Ethernet LAN data rates 10,100,1000,10000 Mbit/s
Execute Disable Bit Y
Fan diameter 80 mm
Flash memory 256 MB
Graphics & IMC lithography 14 nm
Height 88 mm
Hot-swap drive bays Y
Idle States Y
Installed storage drive type HDD
Intel 64 Y
Intel Enhanced Halt State Y
Intel Trusted Execution Technology Y
Intel TSX-NI Y
Intel Virtualization Technology for Directed I/O (VT-d) Y
Intel VT-x with Extended Page Tables (EPT) Y
Internal memory 16 GB
Internal memory type DDR4
iSCSI support Y
Jumbo frames support Y
LED indicators Y
Linux operating systems supported Y
Mac operating systems supported Y
Maximum number of PCI Express lanes 16
Maximum supported storage capacity 120 TB
Mean time between failures (MTBF) 159519 h
Noise level 30 dB
Number of fans 3 fan(s)
Number of power supply units 2
Number of storage drives installed 12
Number of storage drives supported 12
Number of users 8192 user(s)
On-board graphics adapter model Intel HD Graphics P530
On/off switch Y
Operating relative humidity (H-H) 20 - 80 %
Operating system installed ReadyNAS OS
Operating temperature (T-T) 0 - 40 °C
Package depth 880 mm
Package height 248 mm
Package type box
Package weight 25270 g
Package width 578 mm
PCI Express configurations 1x16,1x8+2x4,2x8
PCI Express slots version 3.0
Power supply location Built-in
Power supply unit (PSU) capacity 550 W
Pre-installed software ReadyCLOUD-PC-App
Processor boost frequency 3.9 GHz
Processor cache 8 MB
Processor codename Skylake
Processor cores 4
Processor family Intel Xeon E3 v5
Processor frequency 3.5 GHz
Processor lithography 14 nm
Processor manufacturer Intel
Processor model E3-1245V5
Processor operating modes 64-bit
Processor socket LGA 1151 (Socket H4)
Processor threads 8
RAID levels 0,1,5,6,10,JBOD
RAID support Y
Redundant power supply (RPS) support Y
RoHS compliance Y
Scalability 1S
Server operating systems supported Windows Server 2008,Windows Server 2008 R2,Windows Server 2012
Stepping R0
Storage drive capacity 4000 GB
Storage drive interface Serial ATA III
Storage drives installed Y
Supported file systems FAT32,HFS+,NTFS,ext3,ext4
Supported network protocols TCP/IP, HTTP, HTTPS, FTP, SSH
Supported storage drive types HDD
System bus rate 8 GT/s
Thermal Design Power (TDP) 80 W
Thermal Monitoring Technologies Y
Total installed storage capacity 48 TB
Type NAS
USB port Y
Web-based management Y
Weight 11960 g
Wi-Fi No
Width 445 mm
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64
Processor cache type Smart Cache
Maximum internal memory supported by processor 64 GB
Memory types supported by processor DDR3L-SDRAM,DDR4-SDRAM
Memory bandwidth supported by processor (max) 34.1 GB/s
Memory channels supported by processor Dual
ECC supported by processor Y
Intel Virtualization Technology (VT-x) Y
Intel Clear Video Technology Y
Memory voltage supported by processor 1.35 V
Processor package size 37.5 x 37.5 mm
On-board graphics adapter base frequency 400 MHz
On-board graphics adapter dynamic frequency (max) 1150 MHz
Maximum on-board graphics adapter memory 1 GB
On-board graphics adapter DirectX version 12.0
On-board graphics adapter OpenGL version 4.4
Processor series Intel Xeon E3-1200 v5
Intel Secure Key Technology version 1.00
Intel TSX-NI version 1.00
On-board graphics adapter ID 0x191D
Built-in UPnP AV media server Y
Built-in iTunes server Y
S.M.A.R.T. support Y
Number of displays supported (on-board graphics) 3
Intel® Wireless Display (Intel® WiDi) Y
Intel® Insider™ Y
Intel® Clear Video HD Technology (Intel® CVT HD) Y
Intel® AES New Instructions (Intel® AES-NI) Y
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) Y
Intel® Hyper Threading Technology (Intel® HT Technology) Y
Intel® Secure Key Y
Intel® OS Guard Y
Intel® Turbo Boost Technology 2.0
Intel® Quick Sync Video Technology Y
Processor ARK ID 88173
System log Y
Intel® InTru™ 3D Technology Y
Hot spare Y
Load balancing system Y
Network Time Protocol (NTP) client Y
Share folder 1024
Share folder access right management Y
Product colour Black
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Conflict-Free processor Y

Specific References

EAN13
0606449142617

rr4312x4-20000s.pdf

Netgear RR4312X4-20000S Data Sheet

Netgear RR4312X4-20000S

2U, Intel Xeon E3-1245 v5, 16GB DDR4 ECC, 2x 10Gbps, USB3.0, 100-240VAC, 4x 4TB, 11.96 kg, Enterprise HDD, ReadyCLOUD-PC-App
Out of Stock
£7,996.51
£6,663.76 Ex. VAT
Reference: RR4312X4-20000S
Quantity
