AC input frequency | 50/60 Hz |
AC input voltage | 100-240 V |
Backup function | Y |
Browser supported | Microsoft Internet Explorer 9+, Microsoft Edge, Mozilla Firefox 14+, Google Chrome 20+, Apple Safari 5+ |
Built-in display | Y |
Certification | FCC, CE, VCCI |
Chassis type | Desktop |
Colour of product | Black |
Cooling type | active |
CPU configuration (max) | 1 |
Depth | 239 mm |
Device class | Small & Medium Business |
DHCP client | Y |
Display type | LCD |
Embedded options available | N |
eSATA ports quantity | 1 |
Ethernet LAN | Y |
Ethernet LAN (RJ-45) ports | 2 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Execute Disable Bit | Y |
Fan diameter | 92 mm |
Height | 194 mm |
Hot-swap drive bays | Y |
Installed storage drive type | HDD |
Intel Virtualization Technology for Directed I/O (VT-d) | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
iSCSI support | Y |
Jumbo frames support | Y |
LED indicators | Y |
Link aggregation | Y |
Mac compatibility | Y |
Mac operating systems supported | Y |
Maximum number of PCI Express lanes | 10 |
Number of fans | 1 fan(s) |
Number of storage drives installed | 2 |
Number of storage drives supported | 2 |
Number of users | 8192 user(s) |
On/off switch | Y |
Operating relative humidity (H-H) | 5 - 95 % |
Operating system installed | ReadyNAS OS |
Operating system version | 6 |
Operating temperature (T-T) | 0 - 45 °C |
PCI Express configurations | 1x2,1x4,1x8 |
PCI Express slots version | 3.0 |
Power consumption (off) | 0.27 W |
Power consumption (typical) | 34.86 W |
Power supply unit (PSU) capacity | 60 W |
Processor boost frequency | 2.20 GHz |
Processor cache | 4 MB |
Processor code | SR36E |
Processor cores | 2 |
Processor family | Intel Atom |
Processor frequency | 1.50 GHz |
Processor lithography | 14 nm |
Processor model | C3338 |
Processor operating modes | 64-bit |
Processor socket | BGA 1310 |
Processor threads | 2 |
RAID levels | 0,1,5,6,10,JBOD |
RAID support | Y |
RoHS compliance | Y |
Security algorithms | 256-bit AES |
Server operating systems supported | Windows Server 2008,Windows Server 2012 R2 |
Stepping | B0 |
Storage drive capacity | 2000 GB |
Storage drive interface | Serial ATA III |
Storage drive size | 2.5/3.5 " |
Storage drives installed | Y |
Supported file systems | FAT32,HFS+,NTFS,ext3,ext4 |
Supported storage drive types | HDD,SSD |
Tcase | 89 °C |
Thermal Design Power (TDP) | 9 W |
Tjunction | 100 °C |
Total installed storage capacity | 4000 GB |
Type | NAS |
USB port | Y |
Weight | 3520 g |
Wi-Fi | No |
Width | 135.5 mm |
Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Wind |
Maximum internal memory supported by processor | 64 GB |
Memory types supported by processor | DDR3L,DDR4-SDRAM |
Memory channels supported by processor | single |
ECC supported by processor | Y |
Intel Virtualization Technology (VT-x) | Y |
Processor package size | 34 x 28 mm |
Built-in UPnP AV media server | Y |
Power consumption (sleep) | 4.5 W |
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
Conflict Free processor | Y |
S.M.A.R.T. support | Y |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Intel® Hyper Threading Technology (Intel® HT Technology) | N |
Intel® Turbo Boost Technology | N |
Processor ARK ID | 97928 |
Intel QuickAssist Technology | Y |
Network Time Protocol (NTP) client | Y |
RAM capacity | 2 GB |
RAM type | DDR4 |

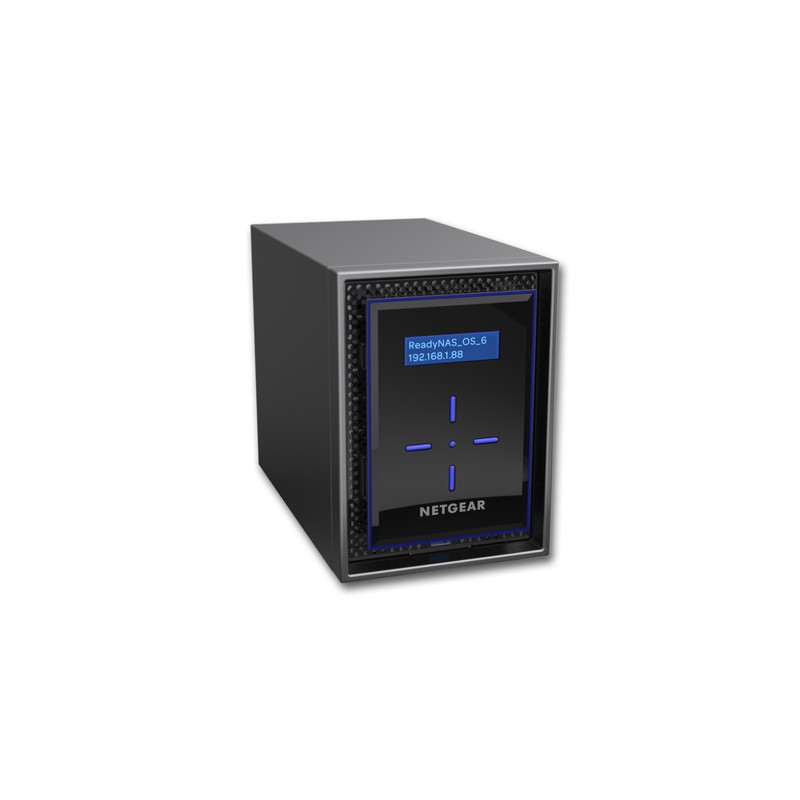

2-bay Desktop, 2x 2TB Enterprise, Dual Core Intel C-3338 Atom, 2GB DDR4, 2x Gigabit-Ports
RN422E2-100NES
