AC input frequency | 50/60 Hz |
AC input voltage | 100-240 V |
Backup function | Yes |
Bus type | DMI3 |
Chassis type | Rack (4U) |
Colour of product | Black |
Cooling type | active |
CPU configuration (max) | 1 |
Depth | 922 mm |
Device class | Large Enterprise Business |
DHCP client | Yes |
Embedded options available | Yes |
Enhanced Intel SpeedStep Technology | Yes |
eSATA ports quantity | 2 |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 6 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Execute Disable Bit | Yes |
External mini-SAS ports | 3 |
Graphics & IMC lithography | 14 nm |
Height | 175 mm |
Hot-swap drive bays | Yes |
Idle States | Yes |
Installed storage drive type | No |
Intel 64 | Yes |
Intel Enhanced Halt State | Yes |
Intel Trusted Execution Technology | Yes |
Intel TSX-NI | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
iSCSI support | Yes |
Jumbo frames support | Yes |
Link aggregation | Yes |
Maximum number of PCI Express lanes | 16 |
Maximum RAM supported | 64 GB |
Maximum supported storage capacity | 600 TB |
Number of fans | 5 fan(s) |
Number of power supply units | 2 |
Number of users | 160 user(s) |
On-board graphics adapter model | Intel HD Graphics P530 |
PCI Express configurations | 1x16,1x8+2x4,2x8 |
PCI Express slots version | 3.0 |
Power supply location | Built-in |
Power supply unit (PSU) capacity | 700 W |
Processor boost frequency | 3.70 GHz |
Processor cache | 8 MB |
Processor codename | Skylake |
Processor cores | 4 |
Processor family | Intel Xeon E3 v5 |
Processor frequency | 3.3 GHz |
Processor lithography | 14 nm |
Processor model | E3-1225V5 |
Processor operating modes | 64-bit |
Processor socket | LGA 1151 (Socket H4) |
Processor threads | 4 |
RAID levels | 0,1,5,6,10,50,60 |
RAID support | Yes |
Scalability | 1S |
Storage drive interface | Serial ATA III |
Storage drive size | 3.5 " |
Storage drives installed | No |
Supported storage drive types | HDD,SSD |
System bus rate | 8 GT/s |
Thermal Design Power (TDP) | 80 W |
Thermal Monitoring Technologies | Yes |
Type | NAS |
Weight | 33200 g |
Wi-Fi | No |
Width | 445 mm |
Processor cache type | Smart Cache |
Maximum internal memory supported by processor | 64 GB |
Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
Memory bandwidth supported by processor (max) | 34.1 GB/s |
Memory channels supported by processor | Dual |
ECC supported by processor | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Intel Clear Video Technology | Yes |
Memory voltage supported by processor | 1.35 V |
Processor package size | 37.5 x 37.5 mm |
On-board graphics adapter base frequency | 400 MHz |
On-board graphics adapter dynamic frequency (max) | 1150 MHz |
Maximum on-board graphics adapter memory | 1.7 GB |
On-board graphics adapter DirectX version | 12.0 |
On-board graphics adapter OpenGL version | 4.4 |
Processor series | Intel Xeon E3-1200 v5 |
On-board graphics adapter ID | 0x191D |
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
Conflict Free processor | Yes |
Number of displays supported (on-board graphics) | 3 |
Intel® Wireless Display (Intel® WiDi) | Yes |
Intel® Insider™ | Yes |
Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Intel® Smart Cache | Yes |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | No |
Intel® Secure Key | Yes |
Intel® OS Guard | Yes |
Intel® Turbo Boost Technology | 2.0 |
Intel® Quick Sync Video Technology | Yes |
Processor ARK ID | 88168 |
Intel® InTru™ 3D Technology | Yes |
Load balancing system | Yes |
RAM capacity | 16 GB |
RAM type | DDR4 |

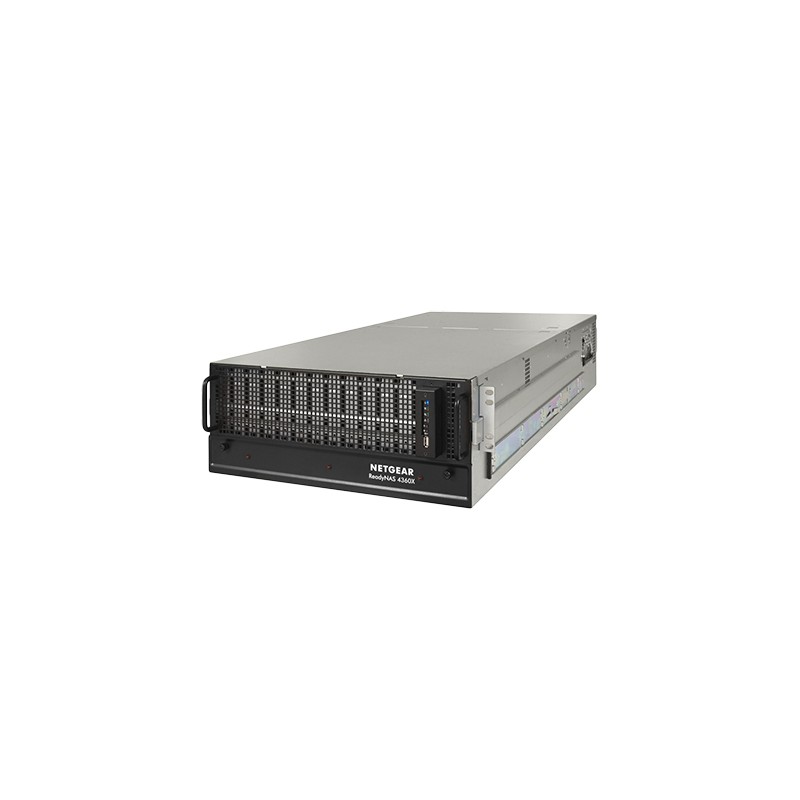

ReadyNAS 4360X 4U 60-bay, 10Base-T, Intel Xeon E3-1225v5 3.3GHz, 16GB DDR4 ECC, 600TB max, SAS/SATAIII 3.5 HDD / SSD, USB 3.0, 33.2kg
RR4360X0-10000S
