AC input frequency | 50/60 Hz |
AC input voltage | 100-240 V |
Access Control List (ACL) | Yes |
Backup function | Yes |
Built-in BitTorrent client | Yes |
Certification | FCC, CE, VCCI |
Chassis type | Mini Tower |
Colour of product | Black,Silver |
Cooling type | active |
CPU configuration (max) | 1 |
Depth | 288.55 mm |
DHCP client | Yes |
Display type | LCD |
Embedded options available | No |
Enhanced Intel SpeedStep Technology | Yes |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 2 |
Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
Execute Disable Bit | Yes |
Fan diameter | 120 mm |
Height | 319 mm |
Hot-swap drive bays | Yes |
Idle States | Yes |
Installed storage drive type | No |
Intel 64 | Yes |
Intel Enhanced Halt State | Yes |
Intel Trusted Execution Technology | Yes |
Intel TSX-NI | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Internal RAM | 8 GB |
Internal RAM type | DDR4 |
iSCSI support | Yes |
Jumbo frames support | Yes |
LED indicators | Yes |
Linux operating systems supported | Yes |
Mac operating systems supported | Yes |
Maximum number of PCI Express lanes | 32 |
Number of fans | 1 fan(s) |
Number of storage drives supported | 8 |
On/off switch | Yes |
Other operating systems supported | Android,iOS |
PCI Express configurations | 1x16,1x4,1x8 |
PCI Express slots version | 2.0,3.0 |
Power consumption (max) | 250 W |
Processor boost frequency | 2.70 GHz |
Processor cache | 6 MB |
Processor code | SR2DF |
Processor codename | Broadwell |
Processor cores | 4 |
Processor family | Intel Xeon |
Processor frequency | 2.40 GHz |
Processor lithography | 14 nm |
Processor model | D-1521 |
Processor operating modes | 64-bit |
Processor socket | BGA1667 |
Processor threads | 8 |
RAID levels | 0,1,5,6,10 |
RAID support | Yes |
RoHS compliance | Yes |
Scalability | 1S |
Server operating systems supported | Windows Server 2008 R2,Windows Server 2012 |
Stepping | V2 |
Storage drive interface | Serial ATA III |
Storage drive size | 2.5/3.5 " |
Storage drives installed | No |
Supported storage drive types | SSD |
Thermal Design Power (TDP) | 45 W |
Thermal Monitoring Technologies | Yes |
Type | NAS |
UART | Yes |
USB port | Yes |
Web-based management | Yes |
Weight | 9380 g |
Wi-Fi | No |
Width | 192 mm |
Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64 |
Maximum internal memory supported by processor | 128 GB |
Memory types supported by processor | DDR3-SDRAM,DDR4-SDRAM |
Memory channels supported by processor | Dual |
ECC supported by processor | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Processor package size | 37.5 x 37.5 mm |
Built-in UPnP AV media server | Yes |
Built-in iTunes server | Yes |
Built-in FTP server | Yes |
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
Conflict Free processor | Yes |
S.M.A.R.T. support | Yes |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
Intel® Secure Key | Yes |
Intel® OS Guard | Yes |
Intel® Turbo Boost Technology | 2.0 |
Processor ARK ID | 91202 |
System log | Yes |
Hot spare | Yes |
Password authentication | Yes |
Network Time Protocol (NTP) client | Yes |
Share folder | 1024 |

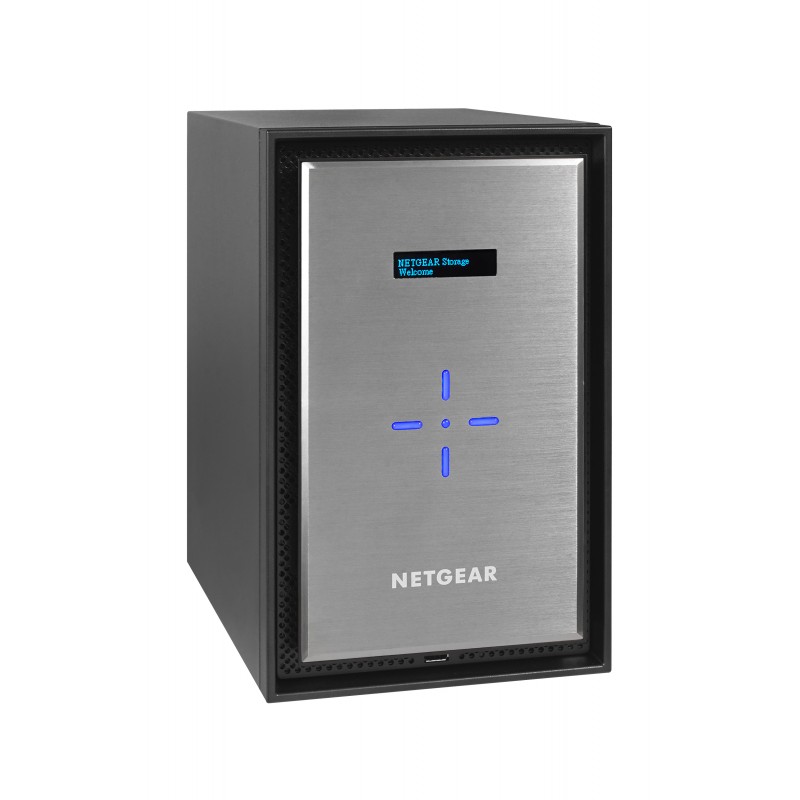

Intel D-1521 Dual Core 2.4GHz, 8GB DDR4 ECC, 8 Drive Bays, 2.5/3.5” SATA/SSD, 10Gbps LAN, USB, 250W, 9.4kg
RN628X00-100NES
Out of Stock
