AC input frequency | 50/60 Hz |
AC input voltage | 100-240 V |
Access Control List (ACL) | Yes |
Backup features | Cloud |
Backup function | Yes |
Browser supported | Microsoft Internet Explorer 9+, Mozilla Firefox 14+, Google Chrome 20+, Apple Safari 5+ |
Built-in BitTorrent client | Yes |
Bus type | DMI3 |
Certification | FCC, CE, VCCI |
Chassis type | Rack (2U) |
Colour of product | Black |
Cooling type | active |
CPU configuration (max) | 1 |
Depth | 707 mm |
DHCP client | Yes |
Embedded options available | Yes |
Enhanced Intel SpeedStep Technology | Yes |
eSATA ports quantity | 2 |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Execute Disable Bit | Yes |
Fan diameter | 80 mm |
Flash memory | 256 MB |
Graphics & IMC lithography | 14 nm |
Height | 88 mm |
Hot-swap drive bays | Yes |
Idle States | Yes |
Installed storage drive type | SSD |
Intel 64 | Yes |
Intel Enhanced Halt State | Yes |
Intel Trusted Execution Technology | Yes |
Intel TSX-NI | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Internal RAM | 8 GB |
Internal RAM type | DDR4 |
iSCSI support | Yes |
Jumbo frames support | Yes |
LED indicators | Yes |
Linux operating systems supported | Yes |
Mac operating systems supported | Yes |
Maximum number of PCI Express lanes | 16 |
Maximum RAM supported | 128 GB |
Maximum supported storage capacity | 120 TB |
Mean time between failures (MTBF) | 159519 h |
Noise level | 30 dB |
Number of fans | 3 fan(s) |
Number of storage drives installed | 12 |
Number of storage drives supported | 12 |
Number of users | 8192 user(s) |
On-board graphics adapter model | Intel HD Graphics P530 |
On/off switch | Yes |
Operating relative humidity (H-H) | 20 - 80 % |
Operating temperature (T-T) | 0 - 40 °C |
PCI Express configurations | 1x16,1x8+2x4,2x8 |
PCI Express slots version | 3.0 |
Power supply location | Built-in |
Power supply unit (PSU) capacity | 550 W |
Processor boost frequency | 3.70 GHz |
Processor cache | 8 MB |
Processor codename | Skylake |
Processor cores | 4 |
Processor family | Intel Xeon E3 v5 |
Processor frequency | 3.3 GHz |
Processor lithography | 14 nm |
Processor model | E3-1225V5 |
Processor operating modes | 64-bit |
Processor socket | LGA1151 |
Processor threads | 4 |
RAID levels | 0,1,5,10,JBOD |
RAID support | Yes |
RoHS compliance | Yes |
Scalability | 1S |
Server operating systems supported | Windows Server 2008,Windows Server 2008 R2,Windows Server 2012 |
Storage drive capacity | 4000 GB |
Storage drive interface | Serial ATA III |
Storage drives installed | Yes |
Supported file systems | FAT32,HFS+,NTFS,ext3,ext4 |
Supported network protocols | TCP/IP, HTTP, HTTPS, FTP, SSH |
Supported storage drive types | SSD |
System bus rate | 8 GT/s |
Thermal Design Power (TDP) | 80 W |
Thermal Monitoring Technologies | Yes |
Total installed storage capacity | 48000 GB |
Type | NAS |
USB port | Yes |
Web-based management | Yes |
Weight | 11960 g |
Wi-Fi | No |
Width | 445 mm |
Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64 |
Processor cache type | Smart Cache |
Maximum internal memory supported by processor | 64 GB |
Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
Memory bandwidth supported by processor (max) | 34.1 GB/s |
Memory channels supported by processor | Dual |
ECC supported by processor | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Intel Clear Video Technology | Yes |
Memory voltage supported by processor | 1.35 V |
Processor package size | 37.5 x 37.5 mm |
On-board graphics adapter base frequency | 400 MHz |
On-board graphics adapter dynamic frequency (max) | 1150 MHz |
Maximum on-board graphics adapter memory | 1.7 GB |
On-board graphics adapter DirectX version | 12.0 |
On-board graphics adapter OpenGL version | 4.4 |
Processor series | Intel Xeon E3-1200 v5 |
On-board graphics adapter ID | 0x191D |
Built-in UPnP AV media server | Yes |
Built-in iTunes server | Yes |
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
Conflict Free processor | Yes |
S.M.A.R.T. support | Yes |
Number of displays supported (on-board graphics) | 3 |
Intel® vPro™ Technology | Yes |
Intel® Wireless Display (Intel® WiDi) | Yes |
Intel® Insider™ | Yes |
Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Intel® Smart Cache | Yes |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | No |
Intel® Secure Key | Yes |
Intel® OS Guard | Yes |
Intel® Turbo Boost Technology | 2.0 |
Intel® Quick Sync Video Technology | Yes |
Processor ARK ID | 88168 |
System log | Yes |
Intel® InTru™ 3D Technology | Yes |
Hot spare | Yes |
Load balancing system | Yes |
Network Time Protocol (NTP) client | Yes |
Share folder | 1024 |
Share folder access right management | Yes |

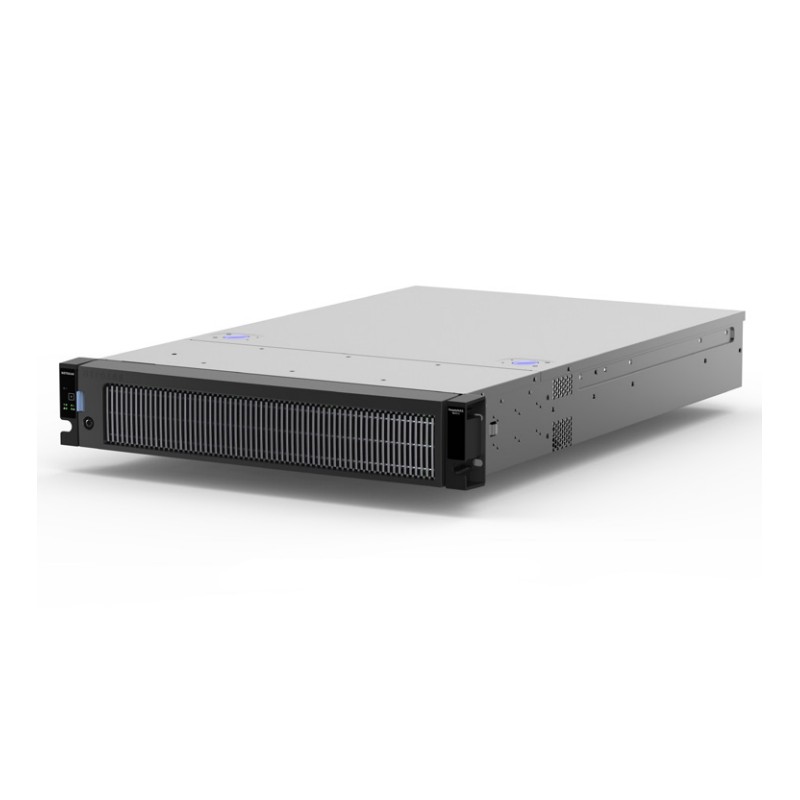

2U, Intel Xeon E3-1225 v5, 8GB DDR4 ECC, USB3.0, 100-240VAC, 12x 4TB, 11.96 kg
RR3312G4-10000S
