AC input frequency | 50/60 Hz |
AC input voltage | 100-240 V |
Certification | FCC Cl. B, CE Cl. B, VCCI Cl. B |
Chassis type | Rack (1U) |
Colour of product | Black,Grey |
Cooling type | active |
Depth | 486 mm |
eSATA ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Fan diameter | 40 mm |
Flash memory | 128 MB |
Height | 44 mm |
Installed storage drive type | HDD |
Internal RAM | 2 GB |
LED indicators | Activity,HDD,LAN,Power |
Management protocols | SNMP v2, v3 |
Maximum supported storage capacity | 24 TB |
Noise level | 28 dB |
Number of fans | 3 |
Number of power supply units | 1 |
Number of storage drives installed | 4 |
Number of storage drives supported | 4 |
Number of users | 75 user(s) |
Operating relative humidity (H-H) | 5 - 95 % |
Operating system installed | ReadyNAS OS |
Operating system version | 6.2 |
Operating temperature (T-T) | 0 - 40 °C |
Other operating systems supported | Android,iOS |
Power consumption (off) | 0.3 W |
Power consumption (typical) | 38 W |
Power supply location | Built-in |
Power supply unit (PSU) capacity | 180 W |
Processor cores | 2 |
Processor family | Intel Atom |
Processor frequency | 1.7 GHz |
Processor model | C2338 |
RAID levels | 0,1,5,6,10,JBOD |
Security algorithms | 256-bit AES |
Server operating systems supported | Windows Server 2008 R2,Windows Server 2012 |
Storage drive capacity | 3000 GB |
Storage drive interface | Serial ATA |
Storage drive size | 2.5/3.5 " |
Supported file systems | FAT32,HFS+,NTFS,ext3,ext4 |
Supported network protocols | TCP/IP, IPv4, IPv6, SSH, NTP |
Supported storage drive types | HDD,SSD |
Total installed storage capacity | 12000 GB |
Type | NAS |
USB 2.0 ports quantity | 1 |
Weight | 5190 g |
Width | 406 mm |
Windows operating systems supported | Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Wind |
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |

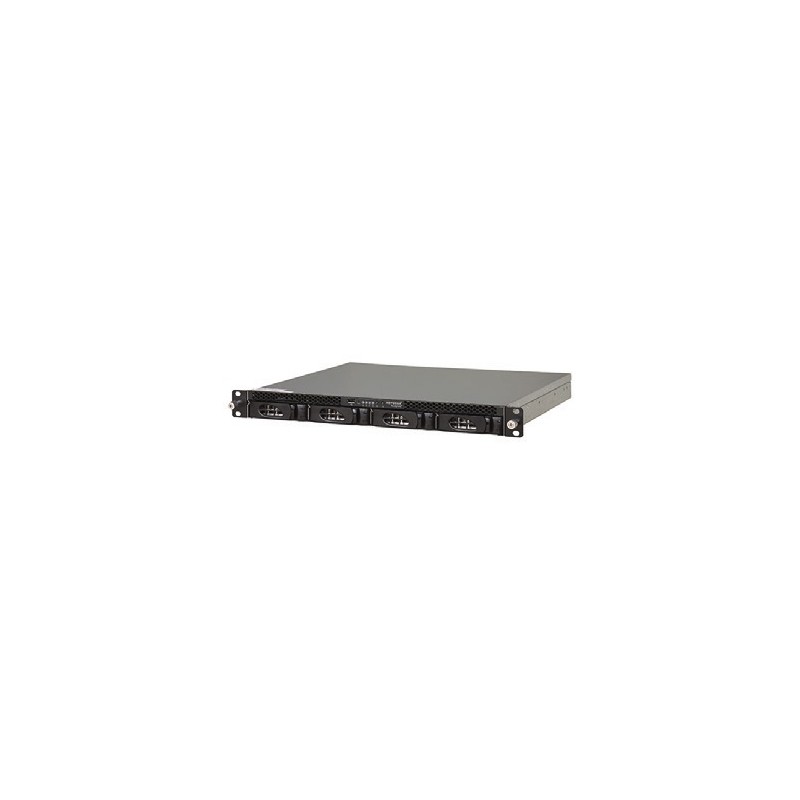

ReadyNAS 3130 - 1U, Intel Atom C2338 1.7GHz, 2GB UDIMM RAM, 4x 3TB HDD, 2x eSATA, Gigabit Ethernet, USB 3.0/2.0, 180 W, 5.2 kg, ReadyNAS OS 6.2
RN31343E-100NES
