Superior connections for quality digital video performance.

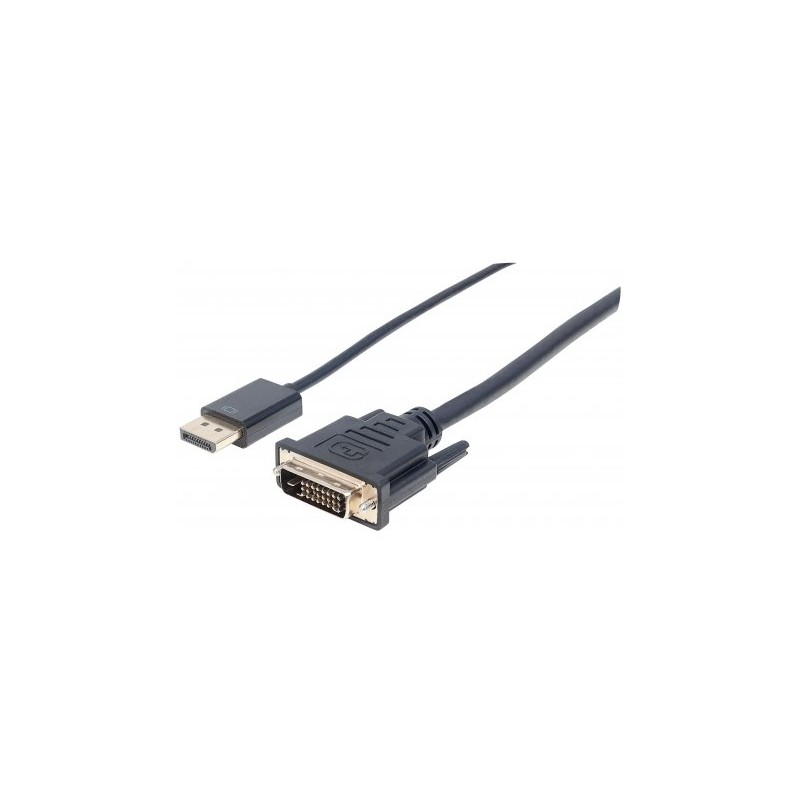

Manhattan DisplayPort 1.2a to DVI Cables help deliver the brightest, most accurate colors and sharpest detail when connecting high-definition monitors, LCD and plasma displays, digital projectors and other DVI- or DP-equipped display devices. Manhattan DisplayPort 1.2a to DVI Cables are engineered and constructed of quality materials to deliver dependable signals in digital video applications. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections help provide maximum conductivity and clear, crisp signal transmissions with reduced distortion.
AWG wire size |
28 |
Certification |
UL 20276 |
Connector 1 |
DisplayPort |
Connector 2 |
DVI-D |
Connector contacts plating |
Gold |
Converter type |
Passive video converter |
Depth |
3000 mm |
DisplayPort version |
1.2A |
Dual Link DVI |
Y |
Maximum data transfer rate |
2.7 Gbit/s |
Operating temperature (T-T) |
0 - 50 °C |
Relative humidity |
0 - 96 % |
Storage temperature (T-T) |
-10 - 80 °C |
Supported video modes |
1080p |
Weight |
4 g |
Connector gender |
Male connector/Male connector |
Product colour |
Black |
Specific References
- EAN13
- 0766623152136
Manhattan 152136 Data Sheet
