With two processors installed, the two processors are connected together using one UPI link. With four processors installed, the processors are connected together using a ring topology, using two UPI links, one to each adjacent processor in the ring.
Processors with the T suffix have more robust thermal characteristics (higher T-case). Processors with the M suffix support support greater than 768 GB per processor.
Processors with the T suffix have more robust thermal characteristics (higher T-case). Processors with the M suffix support support greater than 768 GB per processor.
| Component for | server/workstation |
| Embedded options available | N |
| Enhanced Intel SpeedStep Technology | Y |
| Execute Disable Bit | Y |
| Intel 64 | Y |
| Intel Trusted Execution Technology | Y |
| Intel TSX-NI | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Maximum number of PCI Express lanes | 48 |
| On-board graphics adapter | N |
| PCI Express slots version | 3.0 |
| Processor boost frequency | 3.7 GHz |
| Processor cache | 19.25 MB |
| Processor codename | Skylake |
| Processor cores | 6 |
| Processor family | Intel Xeon Gold |
| Processor frequency | 3.4 GHz |
| Processor lithography | 14 nm |
| Processor model | 6128 |
| Processor operating modes | 64-bit |
| Processor socket | LGA 3647 |
| Processor threads | 12 |
| Scalability | S4S |
| Stepping | H0 |
| Tcase | 74 °C |
| Thermal Design Power (TDP) | 115 W |
| Processor cache type | L3 |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory channels supported by processor | Hexa |
| ECC supported by processor | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Conflict Free processor | Y |
| Intel® vPro™ Technology | Y |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Turbo Boost Max Technology 3.0 | N |
| Intel® Optane™ Memory Ready | N |
| Cooler included | Y |
| Intel® Speed Shift Technology | Y |
Specific References
- EAN13
- 0889488458301

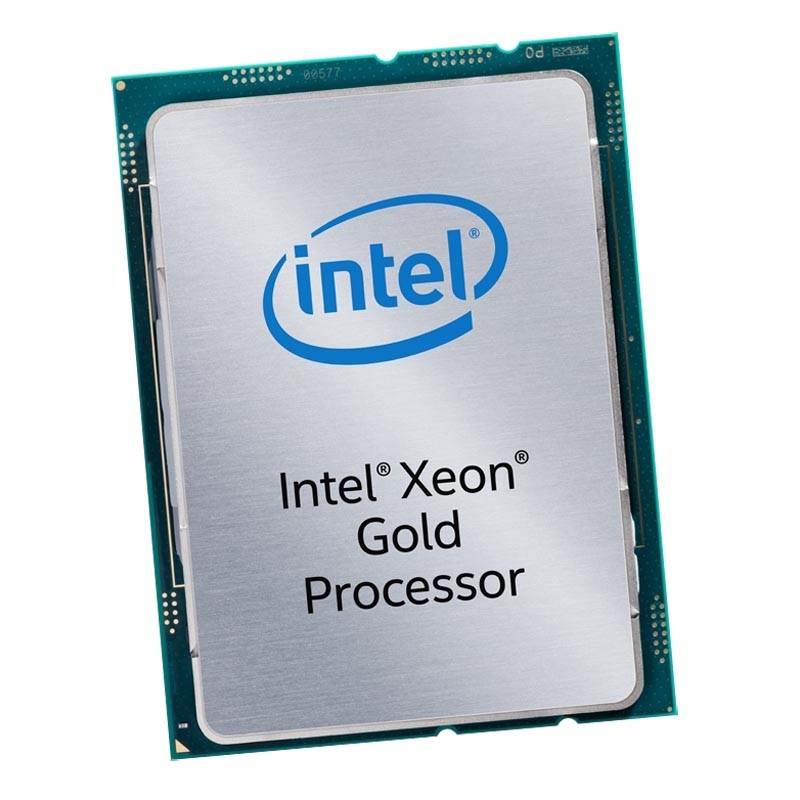

Lenovo Intel Xeon Gold 6128
Intel Xeon Gold 6128 6C 115W 3.4GHz ThinkSystem SR630 Processor option kit
£2,739.79
Tax excluded
Intel Xeon Gold 6128 6C 115W 3.4GHz ThinkSystem SR630 Processor option kit
