For the SR550 server models that come standard with one processor, the second processor can be ordered, if required. The second processor must be of the same model as the first processor. The second processor option includes a processor, a heatsink, and an additional system fan.
| Component for | server/workstation |
| Embedded options available | Y |
| Intel 64 | Y |
| Intel Trusted Execution Technology | Y |
| Intel TSX-NI | Y |
| Maximum number of PCI Express lanes | 48 |
| On-board graphics adapter | N |
| PCI Express slots version | 3.0 |
| Processor boost frequency | 3.7 GHz |
| Processor cache | 19.25 MB |
| Processor cores | 12 |
| Processor family | Intel Xeon Gold |
| Processor frequency | 2.6 GHz |
| Processor lithography | 14 nm |
| Processor model | 6126 |
| Processor operating modes | 64-bit |
| Processor socket | LGA 3647 |
| Processor threads | 24 |
| Scalability | S4S |
| Supported instruction sets | AVX,AVX 2.0,AVX-512,SSE4.2 |
| Tcase | 86 °C |
| Thermal Design Power (TDP) | 125 W |
| Processor cache type | L3 |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory channels supported by processor | Hexa |
| ECC supported by processor | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Processor package size | 76 x 56.5 mm |
| Conflict Free processor | Y |
| Intel® vPro™ Technology | Y |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Turbo Boost Max Technology 3.0 | N |
| Intel® Optane™ Memory Ready | N |
| Cooler included | Y |
| Intel® Speed Shift Technology | Y |

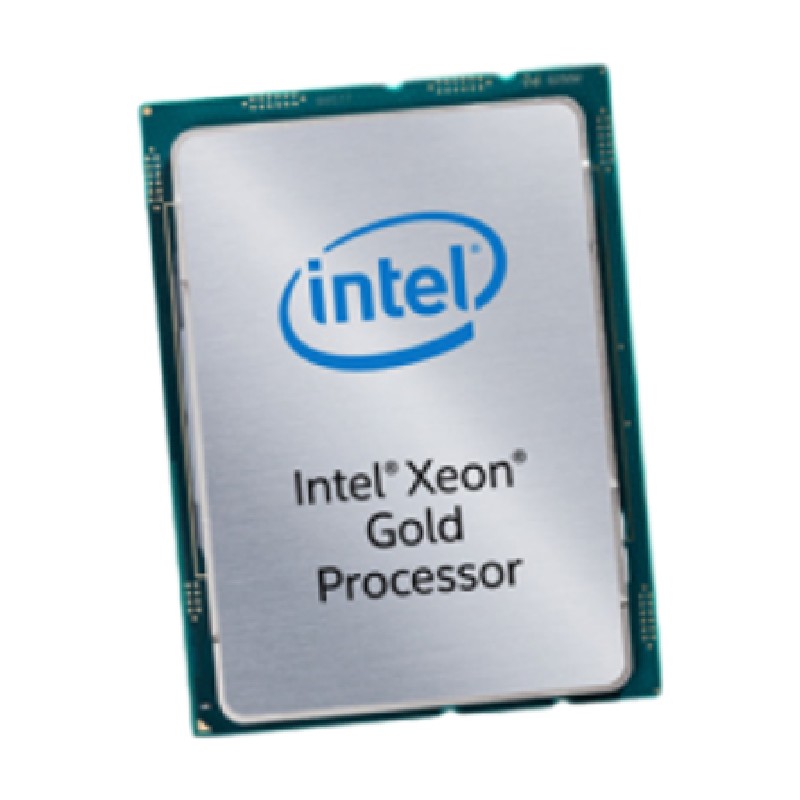

Lenovo Intel Xeon Gold 6126
ThinkSystem SR550 Intel Xeon Gold 6126 12C 125W 2.6GHz Processor Option Kit processor
£3,965.30
£3,304.42 Ex. VAT
ThinkSystem SR550 Intel Xeon Gold 6126 12C 125W 2.6GHz Processor Option Kit processor
