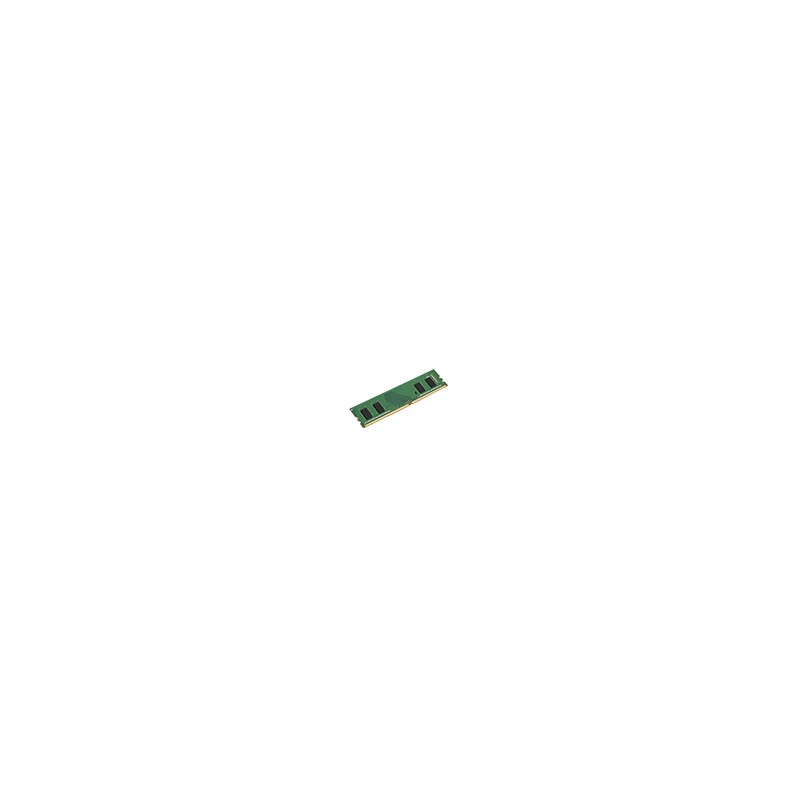

ValueRAM's KVR26N19S6/4 is a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

CAS latency	19
Compatible products	370 ROG STRIX H370-F GAMING\nD840MA Desktop Series\nD840MB Desktop Series\nD840SA Desktop Series\nPRIME B350 - PLUS \nPRIME B350-PLUS\nPRIME B350M - A \nPRIME B350M-A\nPRIME B350M-A/CSM\nPRIME B360-PLUS/CSM\nPRIME B360M-A\nPRIME B360M-C/CSM\nPRIME B360M-
Component for	PC/server
ECC	N
Height	31.25 mm
Internal memory	4 GB
Internal memory type	DDR4
Lead plating	Gold
Linux operating systems supported	Y
Mac operating systems supported	Y
Memory clock speed	2666 MHz
Memory form factor	288-pin DIMM
Memory layout (modules x size)	1 x 2 + 1 x 4 GB
Memory ranking	1
Memory voltage	1.2 V
Module configuration	512M X 64
Operating temperature (T-T)	0 - 85 °C
Refresh row cycle time	350 ns
RoHS compliance	Y
Row active time	32 ns
Row cycle time	45.75 ns
Storage temperature (T-T)	-55 - 100 °C
Unbuffered memory	Y
Width	133.35 mm
Windows operating systems supported	Y
Halogen free	Y
Programming power voltage (VPP)	1.2 V
JEDEC standard	Y
