This document describes ValueRAM's KVR26S19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. This 260-pin DIMM uses gold contact fingers.
| CAS latency | 19 |
| Compatible products | Acer - Aspire Nitro 5 (AN515-42-xxx)\nAcer - Aspire Nitro 5 (AN515-52-xxx)\nAcer - Aspire Nitro 5 (AN515-53-xxx)\nAcer - Predator Helios 300 (PH315-xx-xxx)\nASUS/ASmobile - ROG G703GI Notebook\nASUS/ASmobile - ROG SCAR Edition GL703GE Notebook\nASUS/ASmob |
| Component for | notebook |
| Depth | 3.7 mm |
| ECC | N |
| Height | 30 mm |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Memory clock speed | 2666 MHz |
| Memory form factor | 260-pin SO-DIMM |
| Memory layout (modules x size) | 1 x 8 GB |
| Memory ranking | 1 |
| Memory voltage | 1.2 V |
| Module configuration | 1024M x 64 |
| Operating temperature (T-T) | 0 - 85 °C |
| Refresh row cycle time | 350 ns |
| RoHS compliance | Y |
| Row active time | 32 ns |
| Row cycle time | 45.75 ns |
| Storage temperature (T-T) | -55 - 100 °C |
| Width | 69.6 mm |
| Windows operating systems supported | Y |
| Halogen free | Y |
| Programming power voltage (VPP) | 2.5 V |
| JEDEC standard | Y |
Specific References
- EAN13
- 0740617280630

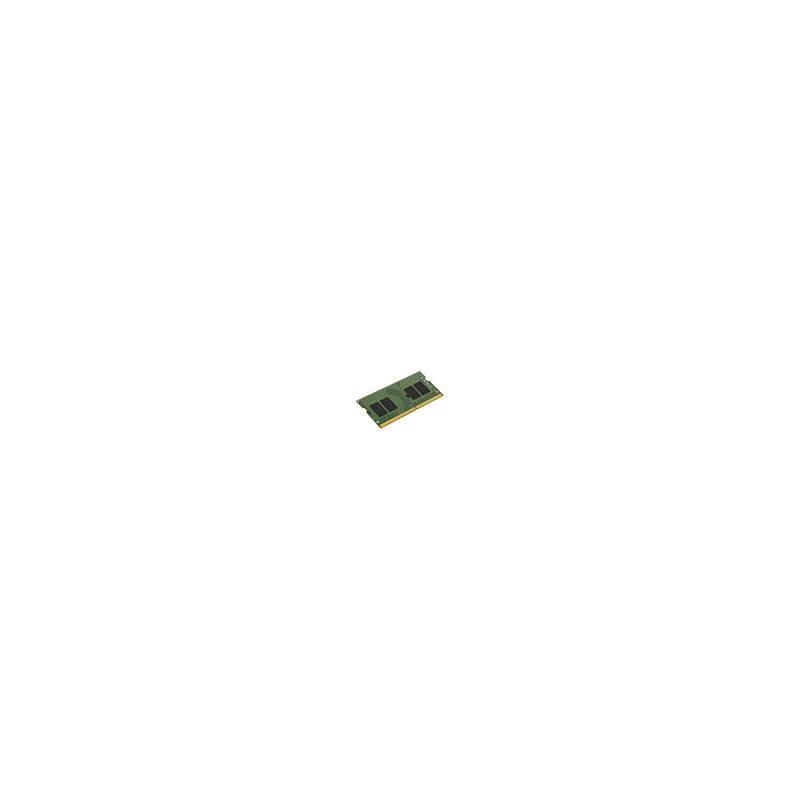

Kingston Technology KVR26S19S8/8
8GB, DDR4, 2666 MHz, CL19, 260-pin SODIMM
£20.32
£16.94 Ex. VAT
8GB, DDR4, 2666 MHz, CL19, 260-pin SODIMM
