The HP 5130 EI Switch Series is comprised of Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers. High availability, simplified
management, and comprehensive security control policies are among the key features that distinguish this series.
management, and comprehensive security control policies are among the key features that distinguish this series.
| 10G support | No |
| AC input voltage | 100-240 V |
| Access Control List (ACL) | Yes |
| Broadcast storm control | Yes |
| Colour of product | Black |
| Console port | RJ-45 |
| Depth | 360 mm |
| DHCP client | Yes |
| DHCP server | Yes |
| Flash memory | 128 MB |
| Flow control support | Yes |
| Form factor | 1U |
| Heat dissipation | 204 BTU/h |
| Height | 43.6 mm |
| IGMP snooping | Yes |
| Input current | 5.0 A |
| Internal memory | 1024 MB |
| IP routing | Yes |
| Latency (1 Gbps) | 5 µs |
| Latency (10 Gbps) | 1.5 µs |
| Link aggregation | Yes |
| MAC address table | 16384 entries |
| Memory type | SDRAM |
| Multicast support | Yes |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Noise level | 50.7 dB |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Packet buffer memory | 1.5 MB |
| Power consumption (typical) | 60 W |
| Power over Ethernet (PoE) | No |
| Power over Ethernet (PoE) support | No |
| Power supply included | No |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Spanning tree protocol | Yes |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 128 Gbit/s |
| Throughput | 96 Mpps |
| VLAN support | Yes |
| Weight | 8000 g |
| Width | 440 mm |
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 4 |
Specific References
- EAN13
- 0888182606803

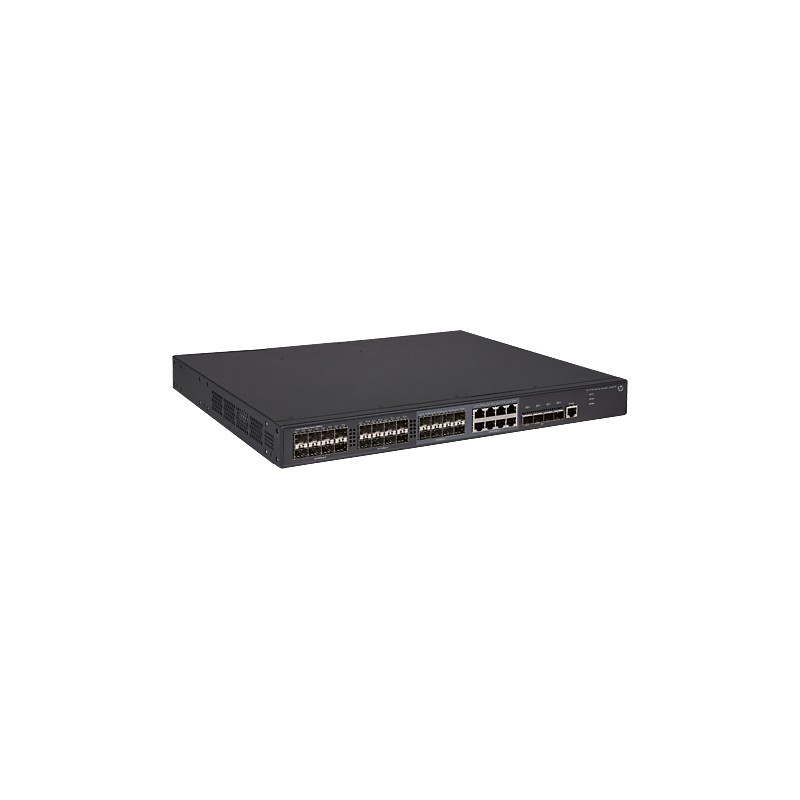

Hewlett Packard Enterprise 5130-24G-SFP-4SFP+ EI
5130-24G-SFP-4SFP+ EI - 16x SFP 100/1000, 8x SFP dual-personality, 4x SFP+, no PSU
£4,725.09
£3,937.57 Ex. VAT
5130-24G-SFP-4SFP+ EI - 16x SFP 100/1000, 8x SFP dual-personality, 4x SFP+, no PSU
