The HP FlexFabric 5700 Switch Series provides an open door for expanding your enterprise network by adding capacity with local switching and L2/L3 support. Take advantage of IRF enhancements for spine/leaf configurations, to simplify network management and expand server connectivity. Resilience and ease of management come hand–in-hand with the FlexFabric 5700.
While IRF reduces management complexities by up to 88%, it also delivers <50msec convergence time. You can rely on the FlexFabric 5700 to lower TCO with up to a 25% lower cost than competing devices.
Features
Expand Your Data Center Network with Confidence
The HP FlexFabric 5700 Switch Series expands your enterprise network by adding local switching capacity for better scalability, so that you can support more customers.
Up to thirty (30) HP FlexFabric switches can be added to the network and managed by one Controlling Bridge (CB) switch improving server connectivity. (future)
The FlexFabric 5700 Switch Series gives you choices that fit your budget and environment by offering 1/10GbE ports supporting SFP and BASE-T with 10/40GbE uplinks.
High-Performance Data Center Switching
The HP FlexFabric 5700 Switch Series delivers 960Gbps switching capacity for the most demanding applications.
Provides local switching and participates in the network unlike competing port multiplexers.
Low latency, under 1.5us 10GbE latency, provides improved throughput and fewer lost packets.
Business Agility and Resilience with Comware 7
The HP FlexFabric 5700 Switch Series delivers IRF <50msec convergence time enabling faster application response time.
The 5700 Switch Series supports spine/leaf IRF to enhance network agility with ECMP and faster convergence.
In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, in the background.
Simplicity and Lower TCO
The HP FlexFabric 5700 Switch Series simplifies switch management by up to 88% with IRF.
No extra hidden costs with simple one license per switch for all OS features.
Up to 25% lower cost than competing port multiplexers for lower TCO.
Automate tedious tasks with software defined network (SDN) and reclaim wasted resources.
While IRF reduces management complexities by up to 88%, it also delivers <50msec convergence time. You can rely on the FlexFabric 5700 to lower TCO with up to a 25% lower cost than competing devices.
Features
Expand Your Data Center Network with Confidence
The HP FlexFabric 5700 Switch Series expands your enterprise network by adding local switching capacity for better scalability, so that you can support more customers.
Up to thirty (30) HP FlexFabric switches can be added to the network and managed by one Controlling Bridge (CB) switch improving server connectivity. (future)
The FlexFabric 5700 Switch Series gives you choices that fit your budget and environment by offering 1/10GbE ports supporting SFP and BASE-T with 10/40GbE uplinks.
High-Performance Data Center Switching
The HP FlexFabric 5700 Switch Series delivers 960Gbps switching capacity for the most demanding applications.
Provides local switching and participates in the network unlike competing port multiplexers.
Low latency, under 1.5us 10GbE latency, provides improved throughput and fewer lost packets.
Business Agility and Resilience with Comware 7
The HP FlexFabric 5700 Switch Series delivers IRF <50msec convergence time enabling faster application response time.
The 5700 Switch Series supports spine/leaf IRF to enhance network agility with ECMP and faster convergence.
In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, in the background.
Simplicity and Lower TCO
The HP FlexFabric 5700 Switch Series simplifies switch management by up to 88% with IRF.
No extra hidden costs with simple one license per switch for all OS features.
Up to 25% lower cost than competing port multiplexers for lower TCO.
Automate tedious tasks with software defined network (SDN) and reclaim wasted resources.
| 10G support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Colour of product | Black |
| Console port | RJ-45 |
| Depth | 460 mm |
| Dimensions (WxDxH) | 439.9 x 460 x 43.7 mm |
| Flash memory | 512 MB |
| Flow control support | Yes |
| Form factor | 1U |
| Height | 43.7 mm |
| I/O ports | 40 fixed 1000/10000 SFP+ ports; 2 QSFP+; Included |
| IGMP snooping | Yes |
| Input voltage | 100 - 240 VAC; -48 to -60 VDC (depending on power supply chosen) |
| Internal memory | 2048 MB |
| Jumbo frames support | Yes |
| Latency | 10 Gb/s Latency: < 1.5 µs |
| Latency (10 Gbps) | 1.5 µs |
| Link aggregation | Yes |
| MAC address table | 128000 entries |
| Management platform | IMC - Intelligent Management Center; command-line interface; out-of-band management; SNMP Manager; Telnet; FTP |
| Management protocols | SNMP, Telnet, FTP, NTP, SNTP |
| Memory and processor | 512 MB flash; packet buffer size: 9 MB; 2 GB SDRAM |
| Noise level | 70.6 dB |
| Number of VLANs | 4096 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating relative humidity range | 10 to 90 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating temperature range (T-T) | 0 - 45 °C |
| Packet buffer memory | 9 MB |
| Port mirroring | Yes |
| Power consumption (typical) | 162 W |
| Power over Ethernet (PoE) | No |
| Power supply included | No |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Redundant power supply (RPS) support | Yes |
| Security algorithms | 802.1x RADIUS |
| Spanning tree protocol | Yes |
| Stackable | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 960 Gbit/s |
| Throughput | 714.2 Mpps |
| USB 2.0 ports quantity | 1 |
| Virtual stacking (units) | 9 |
| VLAN support | Yes |
| Weight | 10000 g |
| Width | 440 mm |
| Installed SFP+ modules quantity | 40 |
| QSFP+ module slots quantity | 40 |
Specific References
- EAN13
- 0888182312902

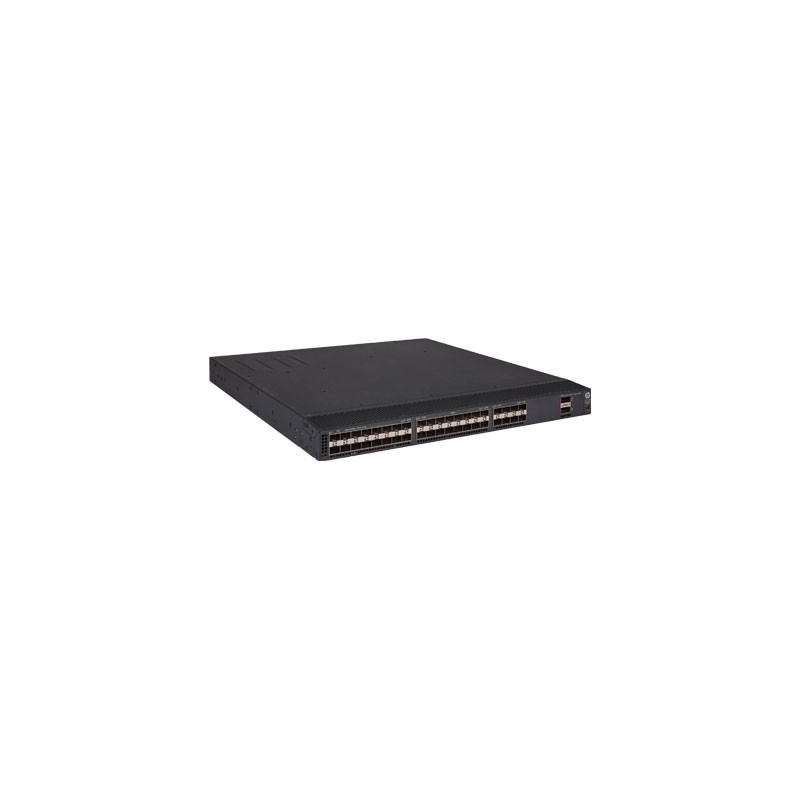

Hewlett Packard Enterprise FlexFabric 5700-40XG-2QSFP+
FlexFabric 5700-40XG-2QSFP+ - 40 1000/10000 SFP+, 2 QSFP+, 512 MB flash, 2GB SDRAM, 714.2 Mpps, 960 Gbps, 10 kg
£9,685.50
£8,071.25 Ex. VAT
FlexFabric 5700-40XG-2QSFP+ - 40 1000/10000 SFP+, 2 QSFP+, 512 MB flash, 2GB SDRAM, 714.2 Mpps, 960 Gbps, 10 kg
