Does your enterprise data center demand uncompromised performance and cutting-edge resiliency at a lower total cost of ownership?

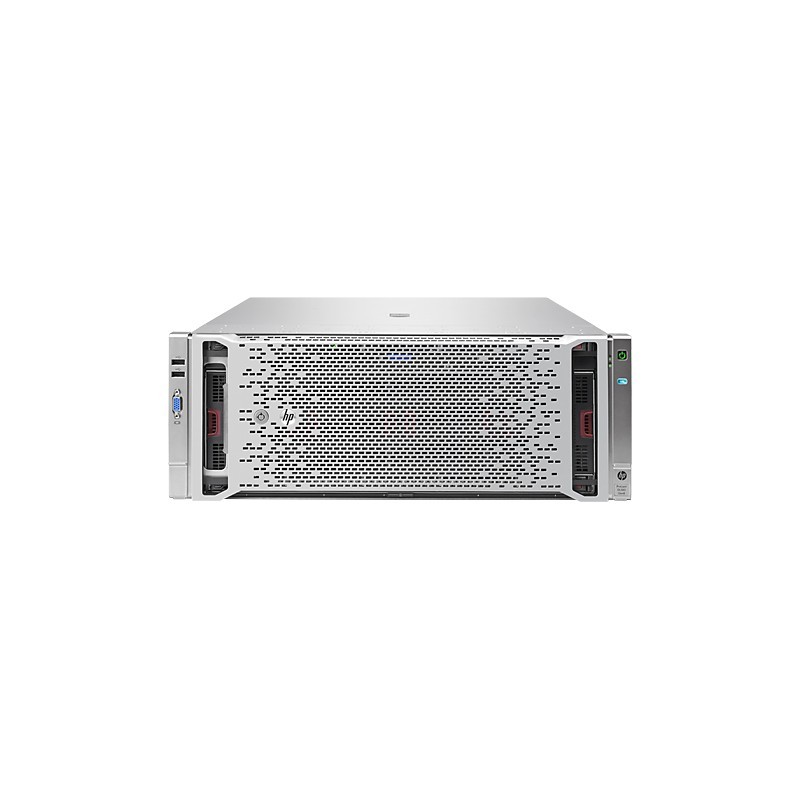

The HP ProLiant DL580 Gen8 Server is an enterprise-grade four socket (4S) x86 server offering breakthrough performance, rock-solid reliability, and compelling consolidation and manageability efficiencies. It is ideal for mission-critical enterprise, business intelligence, and database applications.
Featuring Intel® Xeon® E7-4800 v2 processors, the HP DL580 Gen8 offers blazing fast results with enhanced processor performance, more memory slots (96 DIMMs), greater IO bandwidth (9 PCIe Gen3.0 slots), and increased storage performance (12 Gbps SAS) over the HP DL580 G7 systems.
HP ProLiant DL580 Gen8 has security and data protection features for system resiliency that your business can depend on. With intelligent manageability through HP OneView, iLO 4, and user-inspired features, you get faster, lower cost infrastructure management.
Breakthrough Performance and Scalability
• The HP ProLiant DL580 Gen8 Server provides up to 2x processor performance and 50% more cores with Intel Xeon E7-4800 v2 processors than the previous generation.
Leading Availability and Reliability
• The HP ProLiant DL580 Gen8 Server provides increased system availability and less need for service with enhanced error recovery, improved error diagnosis, and built-in redundancy.
Compelling Efficiencies with Intelligent Manageability and Scale-up Consolidation
• The HP ProLiant DL580 Gen8 Server provides total cost of ownership savings with scale-up consolidation efficiencies and software licensing cost savings.
Chassis type |
Rack (4U) |
Compatible operating systems |
Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
VMware |
Energy Star certified |
No |
Ethernet LAN |
Yes |
Ethernet LAN (RJ-45) ports |
4 |
Graphics adapter |
G200 |
Graphics adapter family |
Matrox |
Hard drive interface |
Serial ATA, Serial Attached SCSI (SAS) |
Hard drive size |
2.5 " |
Height |
175 mm |
Internal memory type |
DDR3-SDRAM |
L3 cache |
37.5 MB |
Memory slots |
96 DIMM |
Motherboard chipset |
Intel C602J |
Operating system installed |
No |
PCI Express x16 (Gen 3.x) slots |
4 |
Power supply |
1500 W |
Processor boost frequency |
3.4 GHz |
Processor family |
Intel Xeon |
Processor frequency |
2.8 GHz |
Processor model |
E7-4890V2 |
RAID support |
Yes |
Redundant power supply (RPS) support |
Yes |
Serial ports quantity |
1 |
System bus rate |
8 GT/s |
USB 2.0 ports quantity |
6 |
VGA (D-Sub) ports quantity |
1 |
Weight |
52800 g |
Specific References
- EAN13
- 0887758465127
