Meter the Input, branch, individual outlets & IT equipment across A and B feed
ePDU G3 Metered Outlet models allow device level metering over multiple power feeds, and includes kWh, peak power and current draw. Clearly view and understand the consumption of individual devices powered over A and B feeds and see available power. Metered Outlet units have no switching. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
ePDU G3 Metered Outlet models allow device level metering over multiple power feeds, and includes kWh, peak power and current draw. Clearly view and understand the consumption of individual devices powered over A and B feeds and see available power. Metered Outlet units have no switching. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Cable length | 3 m |
| Certification | CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011\nIEC 60950-1, EN 61000-6-2:2005\nEN 50581 : 2012, REACH, WEEE\nISO 9001:2008 / ISO 14001:2004 |
| Colour of product | Black |
| Dimensions (WxDxH) | 445 x 203 x 43 mm |
| Display | LCD |
| Ethernet LAN (RJ-45) ports | 1 |
| Firmware upgradeable | Y |
| Input frequency | 50 Hz |
| LED indicators | Y |
| Management protocols | SNMP, Telnet |
| Maximum current | 16 A |
| Maximum power | 4000 W |
| Mounting | Horizontal |
| Nominal input voltage | 230 V |
| Package depth | 570 mm |
| Package height | 195 mm |
| Package weight | 5600 g |
| Package width | 375 mm |
| PDU types | Metered |
| Power plug | C20 coupler |
| Rack mounting | 1U |
| RoHS compliance | Y |
| Serial ports quantity | 1 |
| Supported network protocols | HTTP, HTTPS, SSL, FTP, SMTP, DNS, DHCP, LDAP, RADIUS |
| Type | Single-phase |
| Weight | 3200 g |
| Firmware upgradeable via | Network,USB |
Specific References
- EAN13
- 3553340696213
Eaton EMOH28

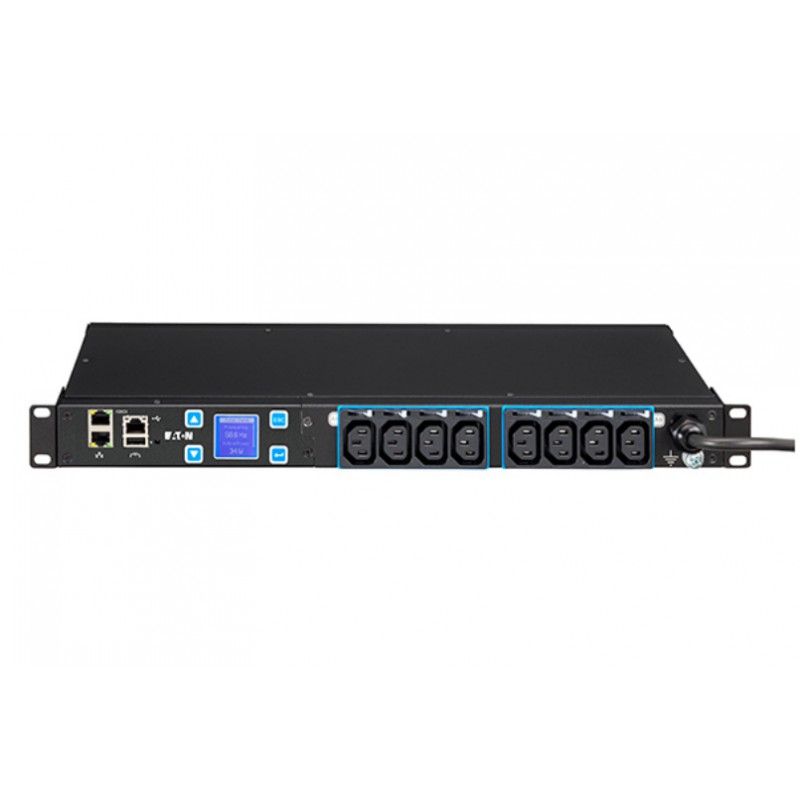

ePDU G3 Metered Outlet, 8 x C13 Out, C20 In, 230V, 1U
£774.84
£645.70 Ex. VAT
ePDU G3 Metered Outlet, 8 x C13 Out, C20 In, 230V, 1U
