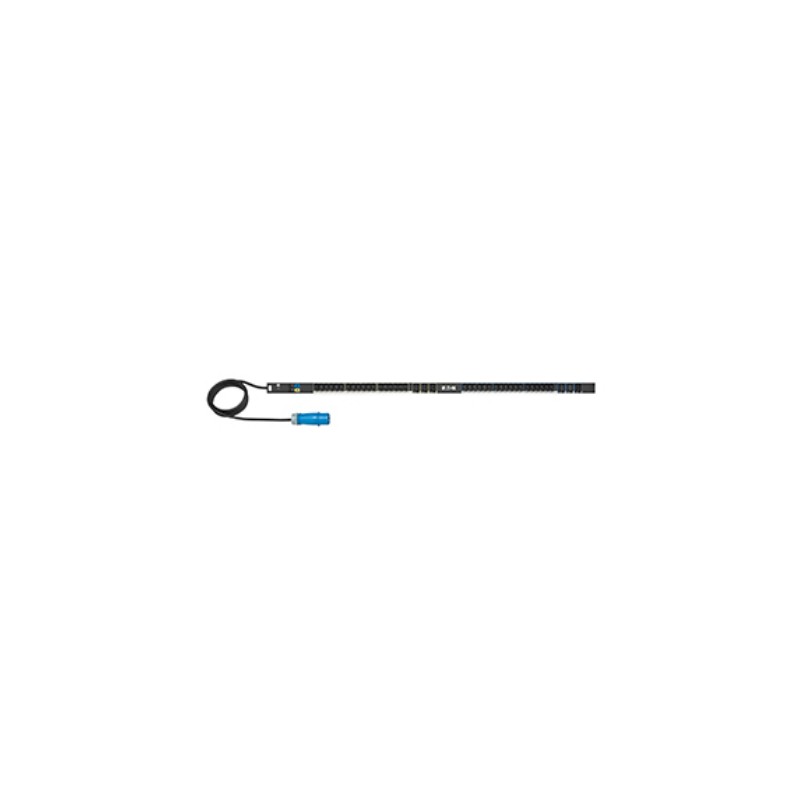

Eaton EBAB32 30AC outlet(s) 0U Black power distribution unit (PDU)
  • Eaton EBAB32 30AC outlet(s) 0U Black power distribution unit (PDU)
  • Eaton EBAB32 30AC outlet(s) 0U Black power distribution unit (PDU)
  • Eaton EBAB32 30AC outlet(s) 0U Black power distribution unit (PDU)
  • Eaton EBAB32 30AC outlet(s) 0U Black power distribution unit (PDU)
  • Eaton EBAB32 30AC outlet(s) 0U Black power distribution unit (PDU)
  • Eaton EBAB32 30AC outlet(s) 0U Black power distribution unit (PDU)
  • Eaton EBAB32 30AC outlet(s) 0U Black power distribution unit (PDU)
Designed for reliable and cost effective power distribution, the ePDU G3 Basic models feature Eaton’s patented IEC outlet grip plug retention, color-coded outlet sections, a low-profile form factor and a high operating temperature. 0U models include both rear and side button mounting system and Eaton’s patented variable mounting system.
AC outlet types C13 coupler,C19 coupler
AC outlets quantity 30 AC outlet(s)
Cable length 3 m
Certification CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011\nIEC 60950-1, EN 61000-6-2:2005\nEN 61000-6-4:2007+A1:2011\nEN 50581 : 2012, REACH, WEEE\nISO 9001:2008 / ISO 14001:2004
Colour of product Black
Dimensions (WxDxH) 52 x 53 x 1604 mm
Input frequency 50 Hz
LED indicators Y
Maximum current 32 A
Maximum power 22000 W
Mounting vertical
Nominal input voltage 400 V
Output connections 24 x C13 & 6 x C19
Package depth 214 mm
Package height 1730 mm
Package width 200 mm
PDU types Basic
Power plug IEC 60309
Rack mounting 0U
RoHS compliance Y
Type Three-phase
Weight 5200 g

Specific References

EAN13
3553340696312

EBAB32.pdf

Eaton EBAB32 Data Sheet

Eaton EBAB32

ePDU G3 Basic, 24 x C13 & 6 x C19 Out, IEC 60309 3Ph In, 400V, 0U
Out of Stock
£1,017.88
£848.23 Ex. VAT
Reference: EBAB32
Quantity
