Meter the Input, branch, individual outlets & IT equipment across A and B feed



ePDU G3 Metered Outlet models allow device level metering over multiple power feeds, and includes kWh, peak power and current draw. Clearly view and understand the consumption of individual devices powered over A and B feeds and see available power. Metered Outlet units have no switching. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity24 AC outlet(s)
Cable length3 m
CertificationCB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011\nIEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010\nEN 55024:2010\nISO 9001:2008 / ISO 14001:2004
Colour of productBlack
Dimensions (WxDxH)53 x 1604 x 52 mm
DisplayLCD
Input frequency50 Hz
LED indicatorsYes
Maximum current32 A
Mountingvertical
Nominal input voltage230 V
Output connections20 x C13 & 2 x C19 & 2 x DIN
PDU typesMetered
Power plugIEC 60309
Rack mounting0U
RoHS complianceYes

EMOB18.pdf

Eaton EMOB18 Data Sheet

Download (1.28M)

Similar products

  • Eaton EMIB04
    Eaton EMIB04
  • Eaton EMIB03
    Eaton EMIB03
  • Eaton EMIB00
    Eaton EMIB00
  • Eaton EBAB22
    Eaton EBAB22
  • Eaton EBAB19
    Eaton EBAB19

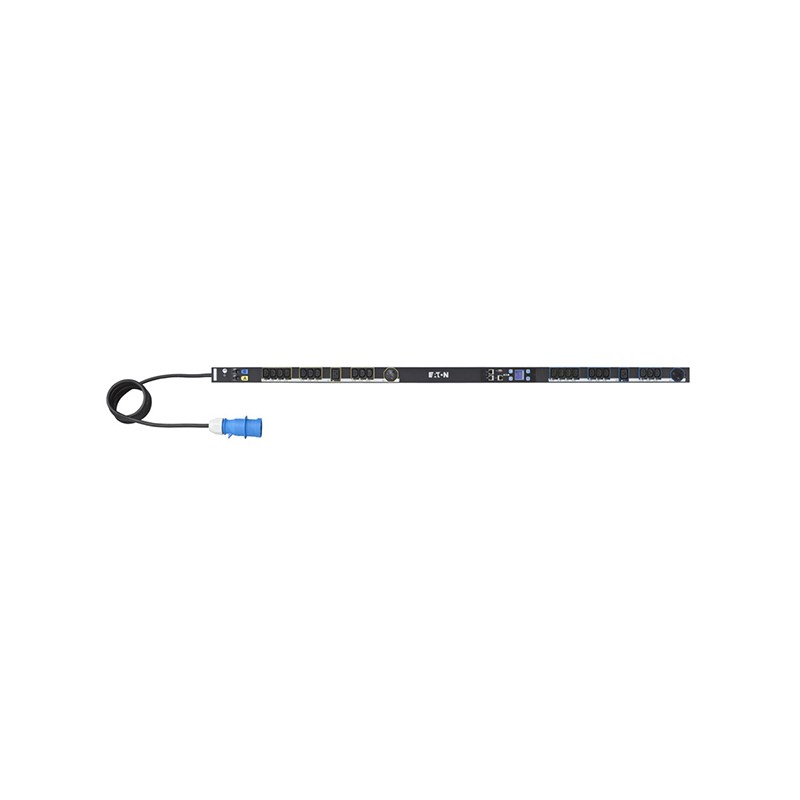

Eaton EMOB18

ePDU G3 Metered Outlet, IEC 60309 32A In, 20 x C13 & 2 x C19 & 2 x DIN Out, 0U

EMOB18

Out of Stock

£1,146.41
£955.34 Ex VAT.
