ePDU G3 Switched models allow lights-out control of devices including switching devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 24 |
| Cable length | 3 m |
| Colour of product | Black |
| Dimensions (WxDxH) | 53 x 1604 x 52 mm |
| Input frequency | 50 Hz |
| LED indicators | Yes |
| Maximum current | 32 A |
| Nominal input voltage | 230 V |
| Operating temperature (T-T) | 0 - 60 °C |
| PDU types | Switched |
| Rack mounting | 0U |
| RoHS compliance | Yes |
Specific References
- EAN13
- 3553340696022

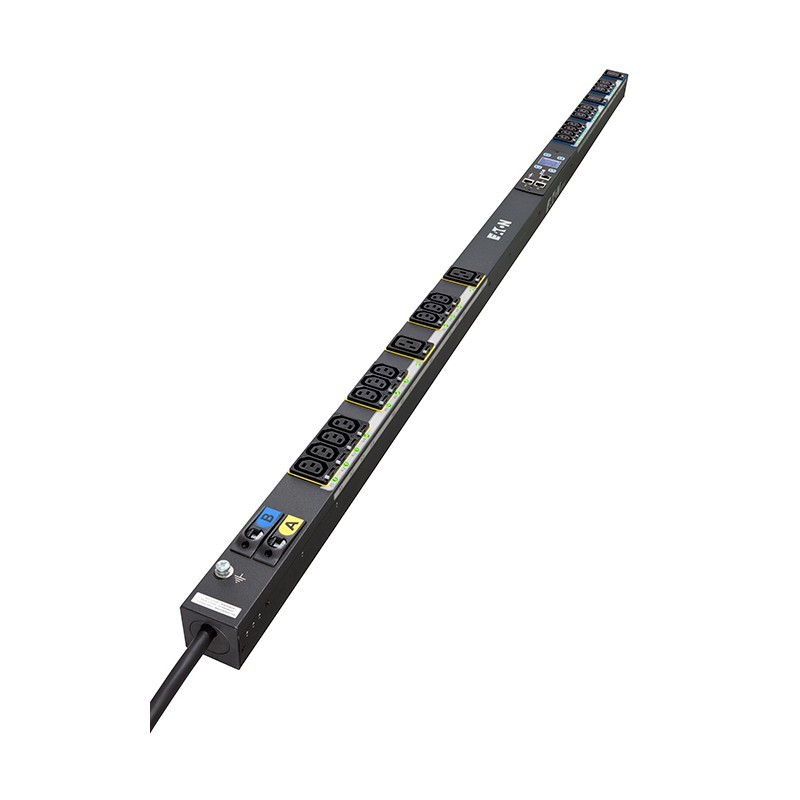

Eaton ESWB05
Switched, 7kW, 230V In, IEC 60309 (32A, Single-phase) In, 20x C13 Out, 4x C19 Out
£973.54
Tax excluded
Switched, 7kW, 230V In, IEC 60309 (32A, Single-phase) In, 20x C13 Out, 4x C19 Out
