Meter the Input, branch, individual outlets & IT equipment across A and B feed
ePDU G3 Metered Outlet models allow device level metering over multiple power feeds, and includes kWh, peak power and current draw. Clearly view and understand the consumption of individual devices powered over A and B feeds and see available power. Metered Outlet units have no switching. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
ePDU G3 Metered Outlet models allow device level metering over multiple power feeds, and includes kWh, peak power and current draw. Clearly view and understand the consumption of individual devices powered over A and B feeds and see available power. Metered Outlet units have no switching. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 24 |
| Cable length | 3.0 m |
| Certification | CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011\nIEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010\nEN 55024:2010\nISO 9001:2008 / ISO 14001:2004 |
| Colour of product | Black |
| Dimensions (WxDxH) | 53 x 1604 x 52 mm |
| Display | LCD |
| Input frequency | 50 Hz |
| LED indicators | Yes |
| Maximum current | 16 A |
| Mounting | vertical |
| Nominal input voltage | 230 V |
| Output connections | 20 x C13 & 4 x C19 |
| PDU types | Metered |
| Rack mounting | 0U |
| RoHS compliance | Yes |
Specific References
- EAN13
- 3553340698026

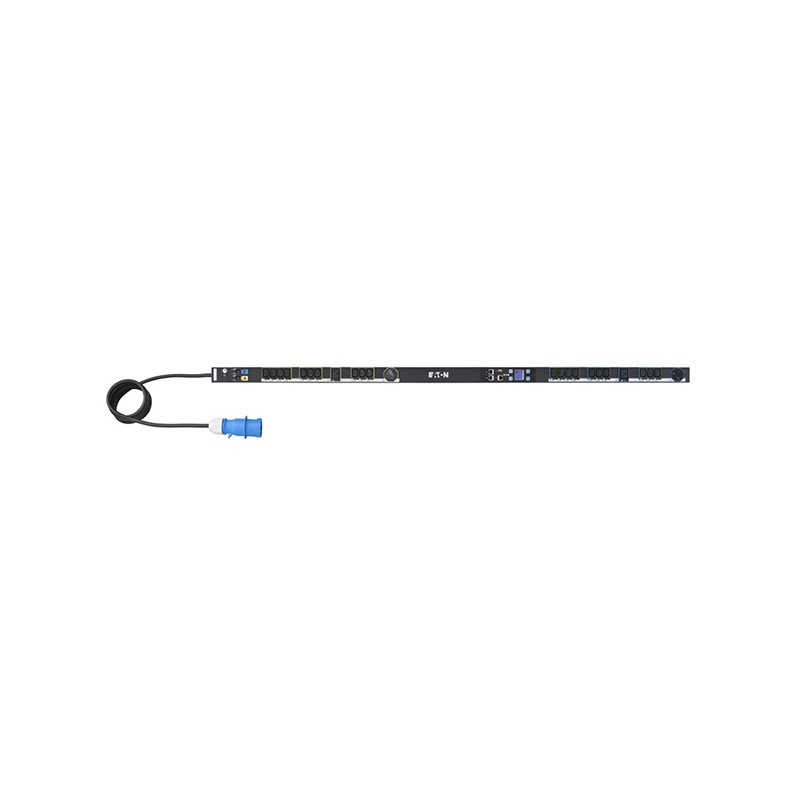

Eaton EMOB04
ePDU G3 Metered Outlet, IEC 60309 16A In, 20 x C13 & 4 x C19 Out, 0U
£853.51
Tax excluded
ePDU G3 Metered Outlet, IEC 60309 16A In, 20 x C13 & 4 x C19 Out, 0U
