Switch and meter outlets & IT equipment across A and B feed: Combines both Switched and Metered Outlet functionality together in 1 ePDU
ePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
ePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 24 |
| Cable length | 3 m |
| Colour of product | Black |
| Dimensions (WxDxH) | 65 x 1829 x 52 mm |
| Input frequency | 50 Hz |
| LED indicators | Yes |
| Maximum current | 32 A |
| Nominal input voltage | 230 V |
| Operating temperature (T-T) | 0 - 60 °C |
| PDU types | Metered, Switched |
| Rack mounting | 0U |
| RoHS compliance | Yes |
Specific References
- EAN13
- 3553340697050

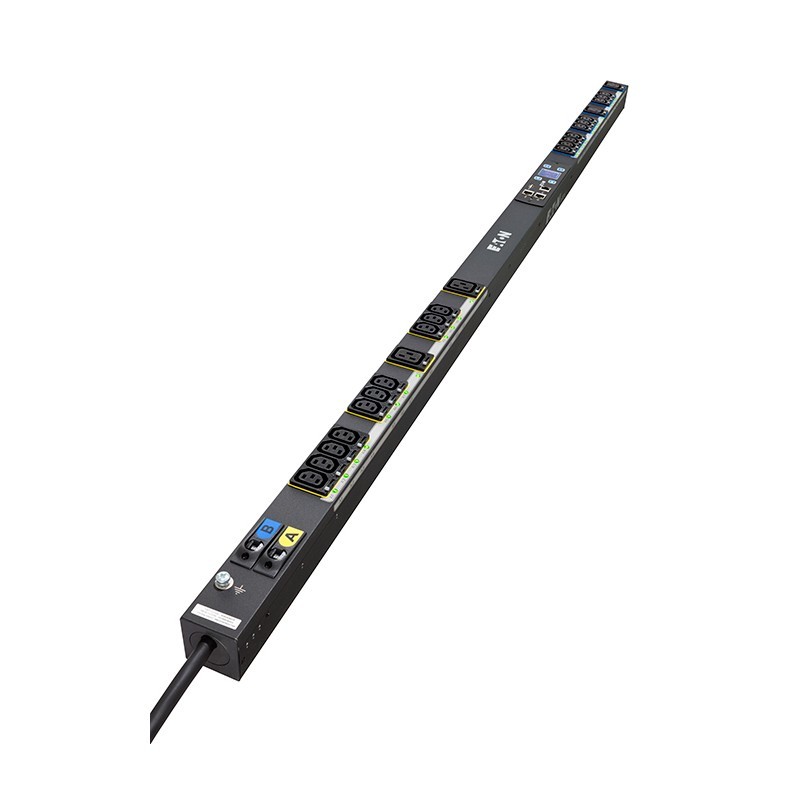

Eaton EMAB33
ePDU G3 Managed, 22kW, 230V In, IEC 60309 (32A, Three-phase) In, 18x C13 Out, 6x C19 Out
£1,554.72
Tax excluded
ePDU G3 Managed, 22kW, 230V In, IEC 60309 (32A, Three-phase) In, 18x C13 Out, 6x C19 Out
