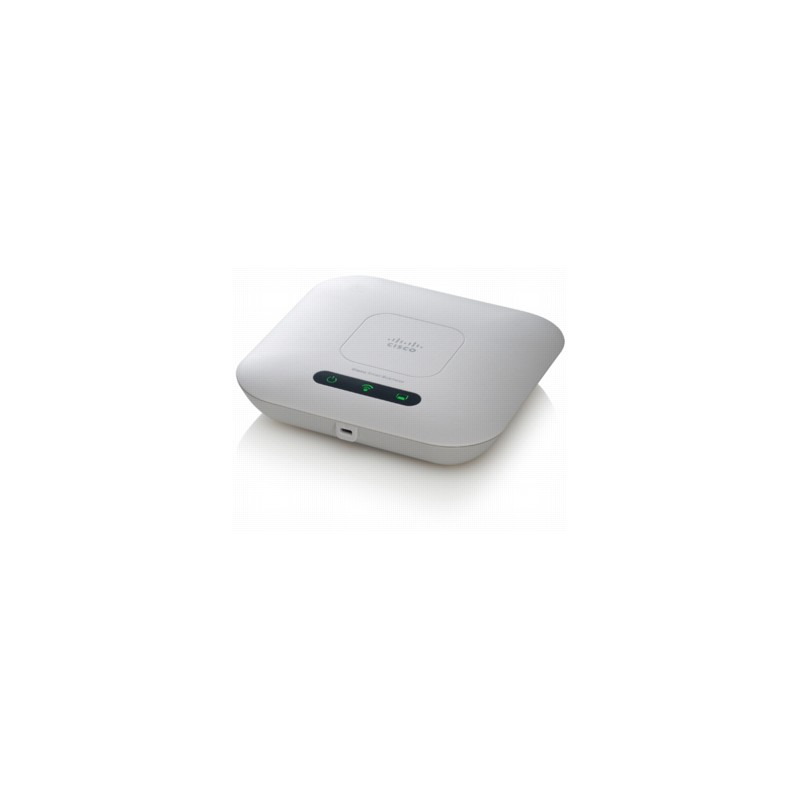

As business applications become more powerful and sophisticated, organizations are looking for new ways to extend the performance and reach of their office networks. Delivering secure, high-speed wireless connectivity to employees, partners, and guests anywhere in the office is key. The Cisco® WAP321 Wireless-N Selectable-Band Access Point with PoE makes it easy to deliver advanced 802.11n wireless networking with business-class features - at an affordable price. This flexible solution is perfect for connecting up to 20 employees and can be expanded to accommodate additional users and changing business needs.
Built specifically for small businesses, the Cisco WAP321 offers selectable-band 802.11n wireless technology to deliver high throughput and extended range throughout your office. Advanced quality-of-service (QoS) features let you prioritize traffic to support bandwidth-sensitive applications. This sophisticated control enables you to take advantage of voice over WLAN (VoWLAN) to place or receive calls over the wireless LAN infrastructure.
Designed for growing organizations, the Cisco WAP321 offers the ability to smoothly scale your network by bridging wired LANs together wirelessly, to reduce cabling and installation costs. It supports multiple Service Set Identifiers (SSIDs) to enable you to segregate traffic for different departments, users, and communication devices.
For companies that need to provide secure wireless guest access, the Cisco WAP321 offers captive portal support that lets you create a wireless hotspot with visitor authentication.
The Cisco WAP321 is simple to set up and use, with intuitive wizard-based configuration to get you up and running in minutes. A sleek, compact design with flexible mounting options enables the access point to smoothly blend into any small business environment. Power over Ethernet (PoE) support makes the device easy to install without the need for separate power plugs or expensive new wiring.
To enhance reliability and safeguard sensitive business information data, the Cisco WAP321 supports Wi-Fi Protected Access (WPA2), encoding all your wireless transmissions with powerful encryption. 802.1X RADIUS authentication helps keep unauthorized users out.
With the Cisco WAP321, you can build on your existing network to deliver high-performance wireless access - with the scalability you need as your business grows and evolves.
AC adapter included |
N |
Antenna gain level (max) |
2 dBi |
Cable lock slot |
Kensington |
Cables included |
LAN (RJ-45) |
Cabling technology |
5e |
Certification |
FCC B, CE, IC |
Channels quantity |
13 channels |
Data transfer rate (max) |
300 Mbit/s |
DC-in jack |
Y |
Detachable antenna(s) |
N |
DHCP client |
Y |
DHCP server |
N |
Frequency band |
2.4 - 5 GHz |
Internal |
N |
LED indicators |
Link,Power,WLAN |
Networking standards |
IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11i,IEEE 802.11n,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3,IEEE 802.3u |
Number of users |
32 user(s) |
Operating relative humidity (H-H) |
10 - 85 % |
Operating temperature (T-T) |
0 - 40 °C |
Power LED |
Y |
Power over Ethernet (PoE) |
Yes |
Power requirements |
DC12V/0.5A |
Power supply type |
DC |
Quality of Service (QoS) support |
Y |
Rack mounting |
No |
Receiver sensitivity |
802.11b: 11Mbps, -86dBm
802.11g: 54Mbps, -71dBm
802.11n: 300Mbps, -64dBm |
Security algorithms |
WEP,WPA,WPA2 |
Storage relative humidity (H-H) |
5 - 90 % |
Storage temperature (T-T) |
-20 - 70 °C |
WAN connection |
Wi-Fi |
2.4 GHz |
Y |
5 GHz |
Y |
Specific References
- EAN13
- 0882658434884
