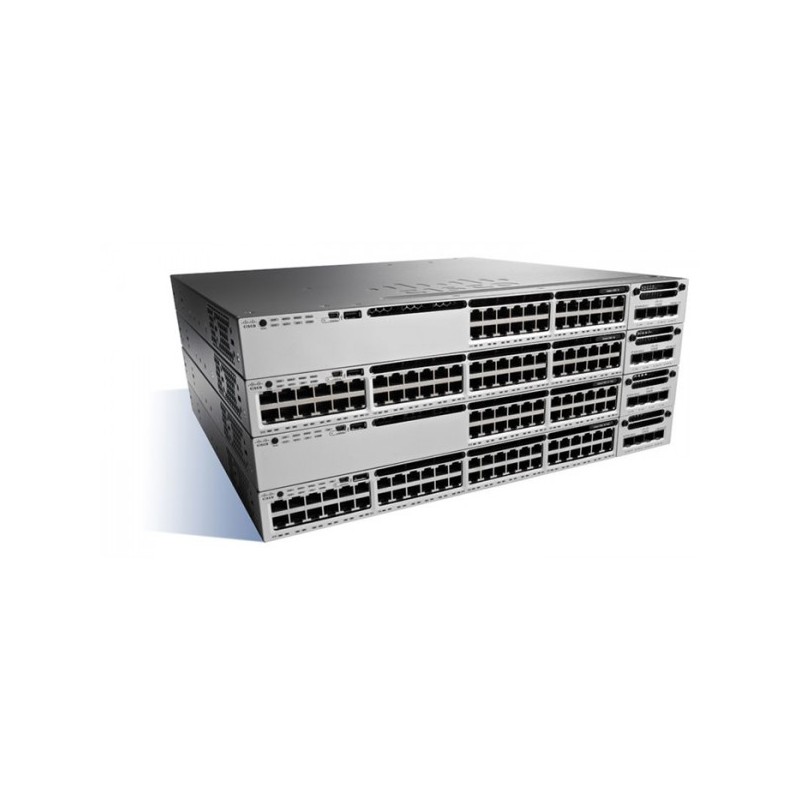

Cisco Catalyst 3850
Catalyst 3850 Enables Unified Access



Cisco Unified Access is the convergence of the wired and wireless networks into one physical infrastructure with greater intelligence, simplicity, performance, and open interfaces. One network starts with Cisco Catalyst 3850 switches, which combine wired and wireless by supporting wireless tunnel termination and full wireless LAN controller functionality.



Best-in-Class Stackable Access Switch

The Cisco Catalyst 3850 Switch currently offers the industry's highest 480 Gbps stacking bandwidth to meet network demand, including gigabit desktop and 802.11ac wireless. The switch delivers advanced capabilities such as a high-performance 24/48 port GE switch, 480 G stacking, Power over Ethernet Plus, StackPower and Flexible NetFlow on all ports.



Converged Wired and Wireless Access

The Cisco Catalyst 3850 Switch brings Cisco IOS excellence to wireless by extending wired infrastructure features, resiliency, granular QoS, and scalability. It provides built-in wireless controller capabilities with 40 G wireless throughput, support for 50 access points and 2000 wireless clients per switch or stack, and support for 802.11ac.



Distributed Intelligent Services

The Cisco Catalyst 3850 Switch delivers common intelligent services across wired and wireless for security and policy, application visibility and control, network resiliency, smart operations, and more. The switch can enable multi-level QoS based on granular information such as SSID, client, radio, application, and fair share policies for wireless.



Foundation for Cisco Open Network Environment

The heart of Cisco Catalyst 3850 is the new ASIC with programmability for future features and intelligence with investment protection. The new ASIC provides a foundation for converged APIs across wired and wireless, software-defined networking (SDN) support, and Cisco One Platform Kit (OnePK).
AC input frequency50/60 Hz
AC input voltage100-240 V
Access Control List (ACL)Yes
Bandwidth480 Gbit/s
Basic switching RJ-45 Ethernet ports quantity48
CertificationRoHS
Colour of productBlack,Grey
CompatibilityAironet 3600, 3500, 2600, 1600, 1260, 1140, 1040
Depth45 mm
Electromagnetic compatibility47CFR, AS/NZS CISPR22 2, CISPR22, EN55022, ICES003, EN61000-3-2, KCC, EN55024, KN24
Ethernet LAN (RJ-45) ports quantity48
Flash memory2048 MB
Gigabit Ethernet (copper) ports quantity48
Height445 mm
IGMP snoopingYes
Internal memory4096 MB
IP routingYes
Jumbo frames supportYes
LED indicatorsYes
Link aggregationYes
MAC address table32000 entries
Management protocolsSNMP v1, SNMP v2c, SNMP v3
ManualYes
Mean time between failures (MTBF)303660 h
Media types supported100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, DWDM/CWDM SFP; 0GBASE-SR, LR, LRM, CX1 (v02 +) SFP+
Memory typeDRAM
Multicast supportYes
Networking standardsIEEE 802.11ac,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of power supply units1
Number of VLANs4000
Operating temperature (T-T)-5 - 45 °C
Operating temperature range (T-T)-5 - 45 °C
Ports quantity48
Power LEDYes
Power supply350 W
Power supply typeAC
Quality of Service (QoS) supportYes
Rate limitingYes
Relative humidity10 - 95 %
Routing entries24000
SafetyUL 60950-1, CAN/CSA-C22.2, EN 60950-1, IEC 60950-1, GOST, NOM
Security algorithms802.1x RADIUS
Security algorithms supported802.1x RADIUS
Source data-sheetIcecat.biz
Spanning tree protocolYes
StackableYes
Storage temperature (T-T)-40 - 70 °C
Storage temperature range (T-T)-40 - 70 °C
Switch typeManaged
Switching capacity176 Gbit/s
VLAN supportYes
Weight7700 g
Width445 mm

Similar products

  • Cisco Catalyst 3650
    Cisco Catalyst 3650
  • Cisco Catalyst 3650
    Cisco Catalyst 3650
  • Cisco WS-C4948E-S
    Cisco WS-C4948E-S
  • Cisco 5548UP
    Cisco 5548UP
  • Cisco WS-C4948E-E
    Cisco WS-C4948E-E

Cisco WS-C3850-48T-E

Stackable 48 10/100/1000 Ethernet ports, with 350WAC power supply 1 RU, IP Services feature set

WS-C3850-48T-E

Out of Stock

£22,642.47
£18,868.73 Ex VAT.
