Images are for illustrative purposes only.

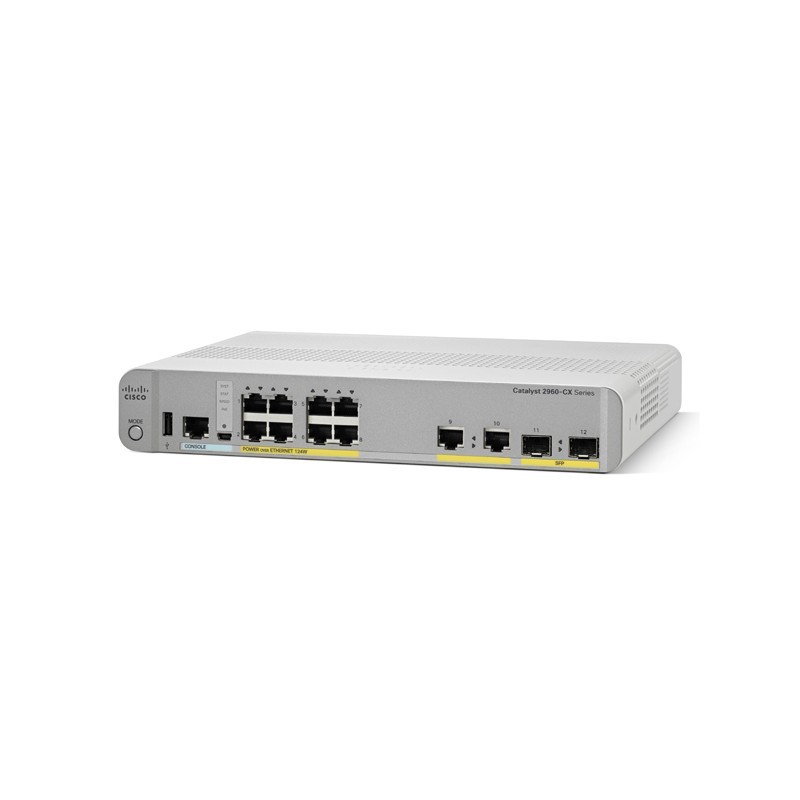

Cisco 2960-CX

8x GE PoE+, 2x 1G SFP and 2x 1G copper PoE+ LAN Base

More details

WS-C2960CX-8PC-L

In Stock

The Cisco Catalyst Compact Switches easily extend your Cisco Catalyst switching infrastructure outside the wiring closet to ... Read More

Free tester with every 5 boxes of cable

New product

£675.96 Inc. VAT

£563.30

Checkout

  • More Info

  • Details

  • Spec Sheet

The Cisco Catalyst Compact Switches easily extend your Cisco Catalyst switching infrastructure outside the wiring closet to enable new workspaces, extend wireless LANs, and connect Power over Ethernet (PoE) devices. These fanless, small form-factor switches are ideal for space-constrained deployments where multiple cable runs would be challenging.



With increased bandwidth, double the PoE capacity, faster CPU, and more memory, the Cisco Catalyst 3560-CX and 2960-CX bring a multifold improvement in performance to the Cisco Catalyst Compact Switch product line. They offer many smart and innovative features for management, simplicity, and scale.



New features include:

- 8 or 12 Gigabit Ethernet ports with line-rate forwarding performance

- Gigabit copper Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks

- Power over Ethernet Plus (PoE+) support with up to 240W of PoE budget

- Advanced Layer 2 (LAN Base) and Layer 3 (IP Base) support with an option to upgrade to IP Services

- Perpetual PoE for powering a powered device even when the device is booting

- Cisco Catalyst Instant Access (optional with 10G) for management simplicity

- Network plug-and-play (PnP) support for automating device configuration

- Cisco TrustSec capability for role-based access security

- Innovative power management features, including Energy Efficient Ethernet and switch hibernation mode

- NetFlow Lite for application visibility at the access network



Upgrade Paths

Cisco Catalyst 3560-CX and 2960-CX Series Switches build upon the success of the 3560-C and 2960-C compact switches and offer superior performance and scale. They come in the same form factor as the older switches, and you can use them anywhere you used the older switches. Customers migrating to the new compact switches will benefit from the increased scalability and performance, innovative new features, and proven performance.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100-240 V
Basic switching RJ-45 Ethernet ports quantity12
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationFCC, CE, CFR 47, EN 55022, EN 55024, AS/NZS, CISPR22:2004, EN55022, VCCI, KCC, ANATEL, CCC, GOST
Colour of productWhite
Combo SFP ports quantity2
Console portRJ-45
Copper ethernet cabling technology1000BASE-T,100BASE-T,10GBASE-T
Data link protocolsUDP, TFTP, IP, TCP, FTP
DC-in jackYes
Depth238 mm
DHCP serverYes
Flash memory128 MB
Full duplexYes
Gigabit Ethernet (copper) ports quantity10
Heat dissipation1023.6 BTU/h
Height44.4 mm
IGMP snoopingYes
Input current3.25 A
Internal memory512 MB
Jumbo frames supportYes
LED indicatorsYes
Link aggregationYes
Management protocolsTelnet, RIP, SNMP, NTP, TACACS+, RMON, HTTP, RADIUS
Mean time between failures (MTBF)569530 h
Multicast supportYes
Networking standardsIEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3z
Number of VLANs1023
Operating altitude0 - 3048 m
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Power consumption (max)280 W
Power consumption (typical)24.5 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) supportYes
Power over Ethernet plus (PoE+) ports quantity8
Quality of Service (QoS) supportYes
Rack mountingNo
Rate limitingYes
SafetyUL 60950-1, CAN/CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CE, GB 4943, IEC 60825
Spanning tree protocolYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 70 °C
Supported network protocolsICMP, ARP, BOOTP, OSPF, DHCP
Switch layerL2
Switch typeManaged
Switching capacity12 Gbit/s
Throughput17.9 Mpps
Total Power over Ethernet (PoE) budget124 W
VLAN supportYes
Web-based managementYes
Weight2270 g
Width269 mm
SFP module slots quantity2
EAN0882658794292
ManufacturerCisco
