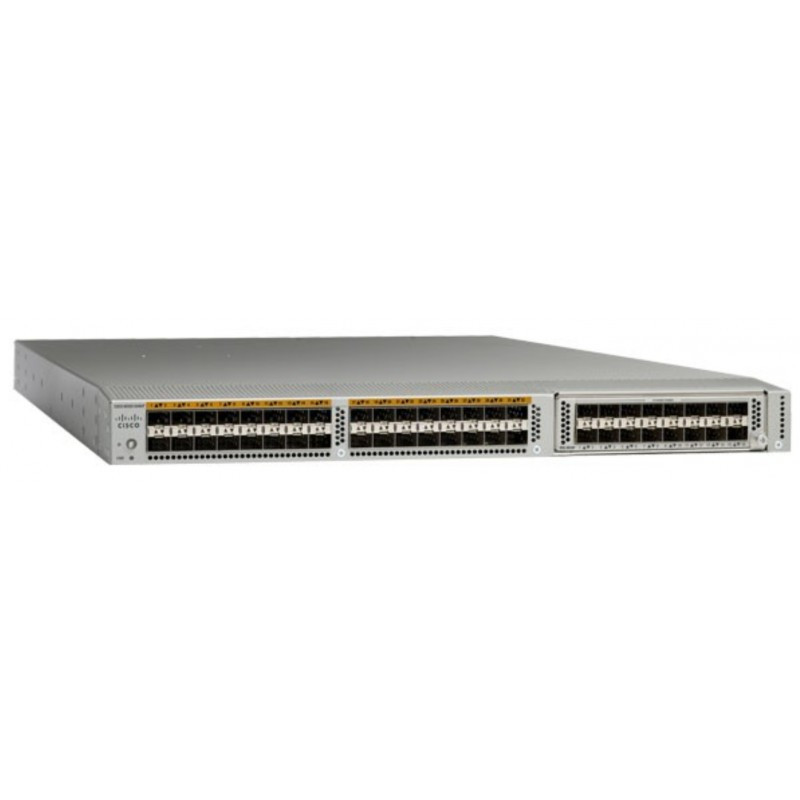

The Cisco Nexus 5548UP (Figure 2) is a 1RU 10 Gigabit Ethernet, Fibre Channel, and FCoE switch offering up to 960 Gbps of throughput and up to 48 ports. The switch has 32 unified ports and one expansion slot.
Nexus 5548UP - Switch - Managed - 32 x SFP+ - rack-mountable - with 4x Cisco Nexus 2248TP GE Fabric Extender, 32x 10G SFP+ module (FET-10G)
Nexus 5548UP - Switch - Managed - 32 x SFP+ - rack-mountable - with 4x Cisco Nexus 2248TP GE Fabric Extender, 32x 10G SFP+ module (FET-10G)
| 10G support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Colour of product | Grey |
| DC-in jack | Yes |
| Depth | 749 mm |
| DHCP client | Yes |
| DHCP server | Yes |
| Flow control support | Yes |
| Form factor | 1U |
| Heat dissipation | 1331 BTU/h |
| Height | 44 mm |
| IGMP snooping | Yes |
| LED indicators | Yes |
| MAC address table | 32 entries |
| Management protocols | SNMP, MIBs, XML, Cisco CLI, IGMP, |
| MIB support | SNMP, UDP, TCP, OSPF, BGP4, |
| Multicast support | Yes |
| Networking standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ad,IEEE 802.3ae |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 390 W |
| Power over Ethernet (PoE) | No |
| Power over Ethernet (PoE) support | No |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Spanning tree protocol | Yes |
| Storage temperature (T-T) | -40 - 70 °C |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 160 Gbit/s |
| System event log | Yes |
| Throughput | 240 Mpps |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 15880 g |
| Width | 439 mm |
| SFP+ module slots quantity | 32 |
