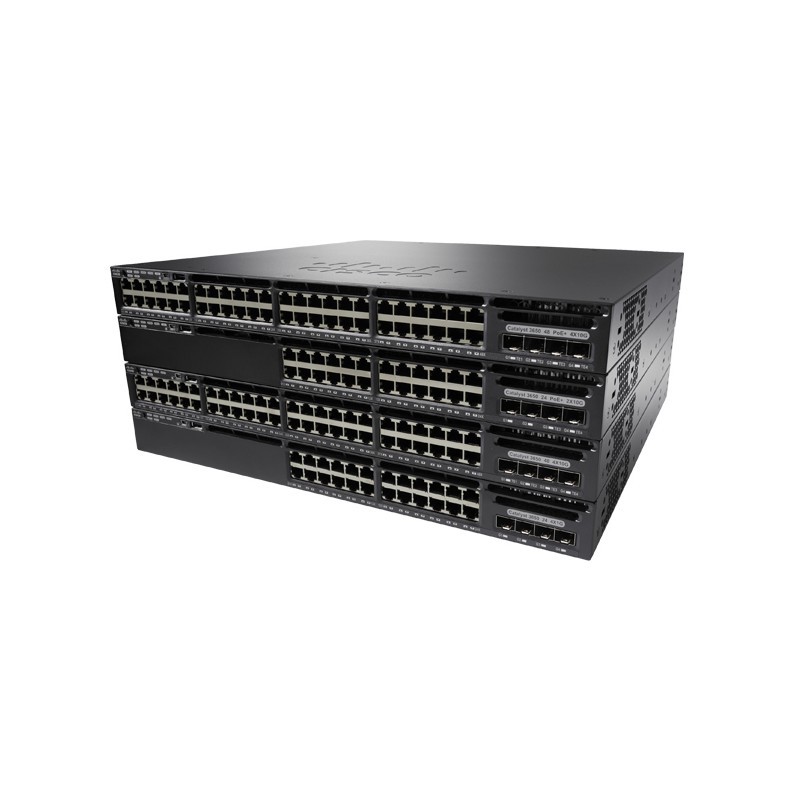

Cisco Catalyst 3650
The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100-240 V
Access Control List (ACL)Yes
Auto MDI/MDI-XYes
Bandwidth160 Gbit/s
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Certification47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)\nAS/NZS CISPR22 Class A\nCISPR22 Class A\nEN55022 Class A\nICES003 Class A\nVCCI Class A\nEN61000-3-2\nEN61000-3-3\nKN22 Class A\nKCC\nCNS13438 Class A\nEN55024\nCISPR24\nKN24
Colour of productBlack
Depth448 mm
DHCP serverYes
Flash memory2000 MB
Form factor1U
Full duplexYes
Height44 mm
IGMP snoopingYes
Internal memory4096 MB
IP routingYes
Jumbo frames supportYes
LED indicatorsYes
Link aggregationYes
MAC address table32000 entries
Mean time between failures (MTBF)528280 h
Memory typeDRAM
Multicast supportYes
Networking standardsIEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Noise level48 dB
Non-operating altitude0 - 5000 m
Number of power supply units1
Number of VLANs4094
Operating altitude0 - 1500 m
Operating relative humidity (H-H)5 - 96 %
Operating temperature (T-T)-5 - 50 °C
Operating temperature range (T-T)-5 - 50 °C
Power consumption (typical)67.75 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) supportYes
Power over Ethernet plus (PoE+) ports quantity24
Quality of Service (QoS) supportYes
Rack mountingYes
Rate limitingYes
Redundant power supply (RPS) supportYes
SafetyUL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
Spanning tree protocolYes
SSH/SSL supportYes
StackableYes
Storage temperature (T-T)-40 - 70 °C
Storage temperature range (T-T)-40 - 70 °C
Switch layerL3
Switch typeManaged
Switching capacity88 Gbit/s
Total Power over Ethernet (PoE) budget390 W
VLAN supportYes
Web-based managementYes
Weight7260 g
Width445 mm
SFP+ module slots quantity4

Similar products

  • Cisco Catalyst 3650
    Cisco Catalyst 3650
  • Cisco WS-C4948E-S
    Cisco WS-C4948E-S
  • Cisco 5548UP
    Cisco 5548UP
  • Cisco WS-C4948E-E
    Cisco WS-C4948E-E

Cisco Catalyst 3650

Catalyst 3650-24PD-E, Standalone, 1U, 24 x 10/100/1000 Ethernet PoE+, 2x10G Uplink ports, DRAM 4GB, Flash 2GB, 640W, IP Services

WS-C3650-24PD-E

Out of Stock

£12,456.72
£10,380.60 Ex VAT.
