Cisco Nexus 7700 F3
  • Cisco Nexus 7700 F3
  • Cisco Nexus 7700 F3

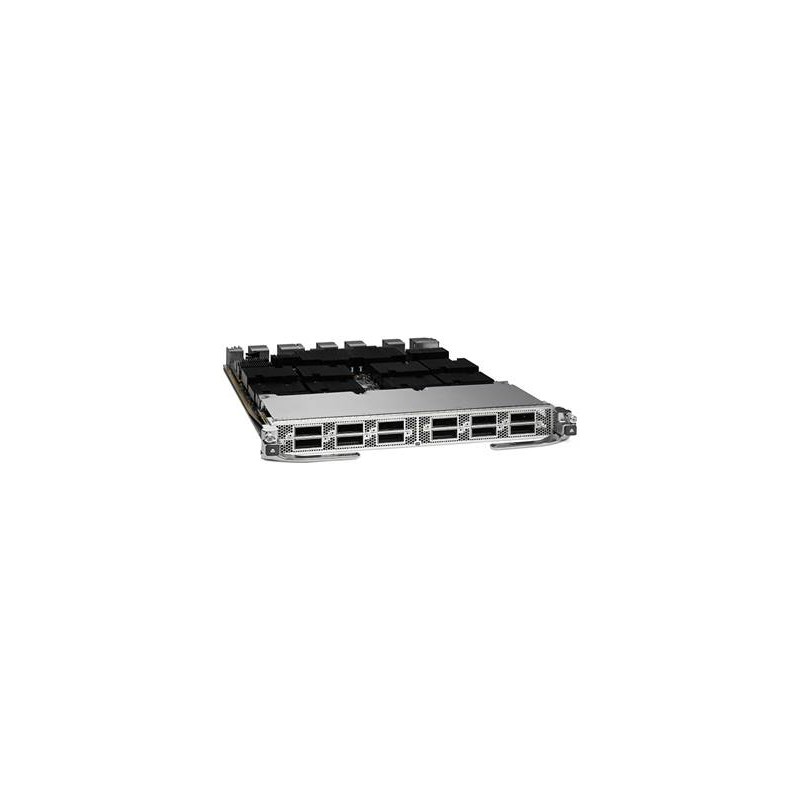

The Cisco Nexus® 7700 F3-Series 24-Port 40 Gigabit Ethernet Module (referred to as the 7700 F3‑Series module in this document) offers outstanding feature flexibility and wire-rate performance on each port. The module enables the deployment of high-density, low-latency, scalable data center architecture.

Powering Cisco Unified Fabric Architecture

The Cisco Nexus 7000 Series Switches are the foundation of the Cisco® Unified Fabric solution. Designed to meet the requirements of mission-critical data centers, these switches deliver exceptional availability, outstanding scalability, and the proven and comprehensive Cisco NX-OS Software data center switching feature set.

The Cisco Nexus 7700 platform is the latest extension to the 7000 Series modular switches. With more than 83 terabits per second (Tbps) of overall switching capacity, the 7700 platform delivers the highest-capacity 10, 40, and 100 Gigabit Ethernet ports in the industry, with up to 768 native 10-Gbps ports, 384 40-Gbps ports, and 192 100‑Gbps ports. This high system capacity is designed to meet the scalability requirements of the largest cloud environments.

The 7700 platform switches have operation and feature consistency with the existing 7000 Series switches, using

a common system architecture, the same application-specific integrated circuit (ASIC) technology, and the same proven NX-OS releases.

The 7700 F3-Series module is a low-latency, high-performance, high-density 40 Gigabit Ethernet module designed for the 7700 platform to deliver up to 384 wire-rate 40 Gigabit Ethernet ports in a single Cisco Nexus 7700 18-Slot Switch chassis.
Access Control List (ACL)Yes
CompatibilityCisco Nexus 7000
Dimensions (WxDxH)403.9 x 553.7 x 44 mm
Electromagnetic compatibilityFCC Part 15 (CFR 47) (USA) Class A, ICES-003 (Canada) Class A, EN55022 (Europe) Class A, CISPR22 (International) Class A, AS/NZS CISPR22 (Australia and New Zealand) Class A, VCCI (Japan) Class A, KN22 (Korea) Class A, CNS13438 (Taiwan) Class A, CISPR24, E
Ethernet LAN data rates40000 Mbit/s
Fiber optic connectorQSFP+
Fiber ports quantity24
Jumbo frames supportYes
MAC address table64000 entries
Networking standardsIEEE 802.3
Number of VLANs4096
Operating relative humidity (H-H)5 - 90 %
Operating temperature (T-T)0 - 40 °C
Power over Ethernet (PoE)No
Queues per port8
SafetyUl/CSA/IEC/EN 60950-1, AS/NZS 60950
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-40 - 70 °C
Weight7700 g
Buffer size per port144 MB


Cisco Nexus 7700 F3 Data Sheet

Download (476.97k)

Cisco Nexus 7700 F3

Nexus 7700 F3-Series 24x 40G Ethernet Module (QSFP+), Spare


Out of Stock

£47,297.82 Ex VAT.
