Cisco Nexus 7000 F2e | Cisco Switch Modules
  • Cisco Nexus 7000 F2e | Cisco Switch Modules
  • Cisco Nexus 7000 F2e | Cisco Switch Modules

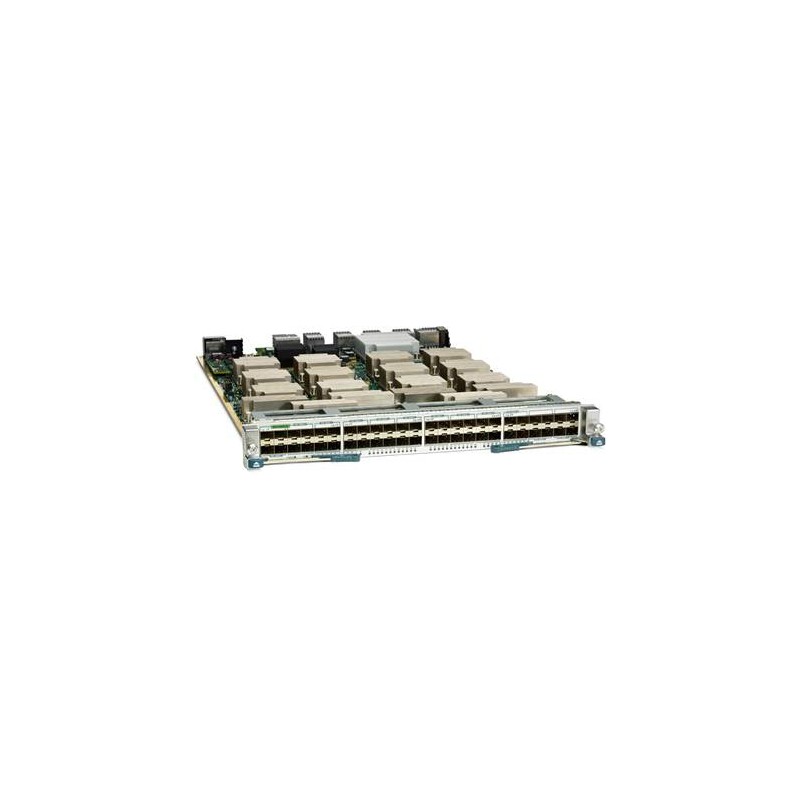

The Cisco Nexus® 7000 Enhanced F2-Series 48-Port Fiber 1 and 10 Gigabit Ethernet Module (referred to as the Cisco Nexus 7000 F2e-Series Fiber Module in this document) offers outstanding flexibility and wire-rate performance on each port. The module enables the deployment of high-density, low-latency, scalable data center architecture.



The Cisco Nexus 7000 Switches provide the foundation for the Cisco® Unified Fabric. They are a modular data center-class product line designed for highly scalable 10 Gigabit Ethernet networks. The fabric architecture scales beyond 15 terabits per second (Tbps), designed to support future 40 and 100 Gigabit Ethernet interfaces. To meet the requirements of the most mission-critical network environments, the switches deliver continuous system operations and virtualized services. The Cisco Nexus 7000 Switches is powered by the proven Cisco NX-OS Software operating system, with enhanced features to deliver real-time system upgrades with exceptional manageability and serviceability. Its innovative unified fabric design is purpose built to support consolidation of IP and storage networks on a single lossless Ethernet fabric.
Access Control List (ACL) Yes
Bandwidth 480 Gbit/s
Compatibility Cisco Nexus 7000
Dimensions (WxDxH) 389 x 556 x 44 mm
Electromagnetic compatibility FCC Part 15 (CFR 47) (USA) Class A, ICES-003 (Canada) Class A, EN55022 (Europe) Class A, CISPR22 (International) Class A, AS/NZS CISPR22 (Australia and New Zealand) Class A, VCCI (Japan) Class A, KN22 (Korea) Class A, CNS13438 (Taiwan) Class A, CISPR24, E
Ethernet LAN data rates 1000 Mbit/s
Fiber optic connector SFP,SFP+
Fiber ports quantity 48
Flow control support Yes
Forwarding rate 720 Mpps
MAC address table 16384 entries
Management platform DCNM
Networking standards IEEE 802.1Qaz,IEEE 802.1Qbb
Operating relative humidity (H-H) 5 - 90 %
Operating temperature (T-T) 32 - 104 °F
Power consumption (typical) 350 W
Quality of Service (QoS) support Yes
Safety Ul/CSA/IEC/EN 60950-1, AS/NZS 60950
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 70 °C
Weight 6300 g
Buffer size per port 72 MB

Specific References

EAN13
0882658522123

N7K-F248XP-25E.pdf

Cisco Nexus 7000 F2e Data Sheet

Cisco Nexus 7000 F2e

Nexus 7000 Enhanced F2-Series 48x 1G/10G Ethernet Module, SFP/SFP+, Spare
Out of Stock
£35,586.63
£29,655.53 Ex. VAT
Reference: N7K-F248XP-25E=
Quantity
