- Expansion PoE module for IE-3000-4TC, IE-3000-8TC, IE-3000-4TC-E, and IE-3000-8TC-E switches, support 4 ports 10/100 PoE/PoE+. External power source is required (44-57 VDC for PoE/50-57 VDC for PoE+)
- Minimum IOS release 15.0(2)EY2
- Minimum IOS release 15.0(2)EY2
| Compatibility | Cisco IE-3000-4TC, IE-3000-8TC |
| Copper ethernet cabling technology | 10Base-T,100Base-TX |
| Dimensions (WxDxH) | 89 x 112 x 147 mm |
| Electromagnetic compatibility | FCC Part 15 Class A, EN 55022, CISPR 22, CISPR11, VCCI Class A, AS/NZS 3548 Class A, CNS 13438 Class A, KN 22 Class A |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| MAC address table | 8000 entries |
| Mean time between failures (MTBF) | 1494990 h |
| Non-operating altitude | 0 - 4572 m |
| Operating altitude | 0 - 3962 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 70 °C |
| Power consumption (typical) | 7.3 W |
| Power over Ethernet (PoE) | Yes |
| Safety | UL/CSA, CE (Europe), C-Tick (Australia/New Zealand), KCC (Korea), ANATEL (Brazil), China RoHS |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight | 1080 g |
Specific References
- EAN13
- 8826585377694

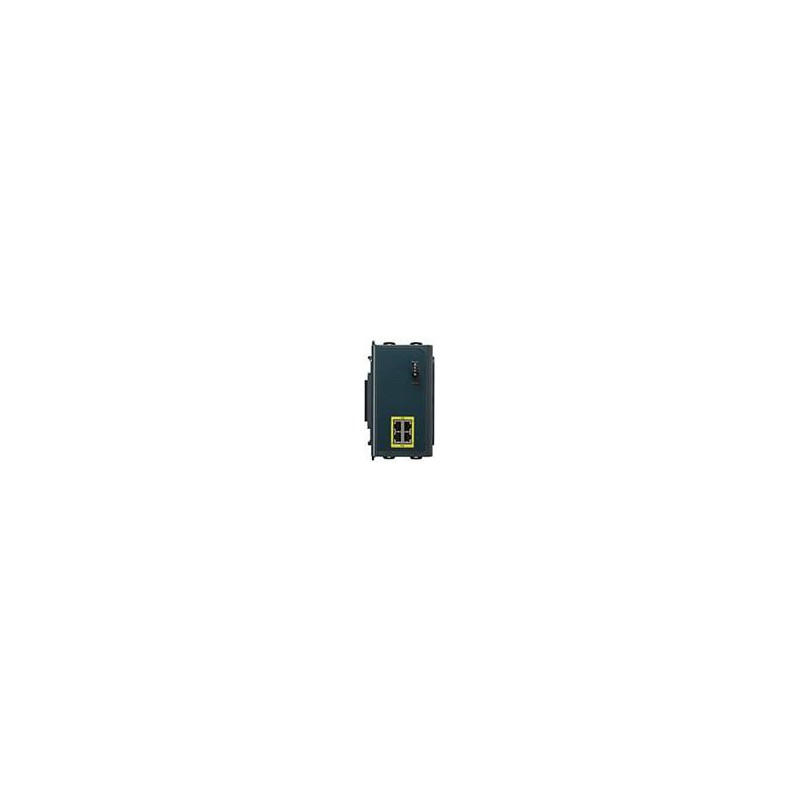

Cisco IEM-3000-4PC
Expansion PoE/PoE+ module for Cisco IE-3000-4TC and IE-3000-8TC
£1,064.72
£887.27 Ex. VAT
Expansion PoE/PoE+ module for Cisco IE-3000-4TC and IE-3000-8TC
