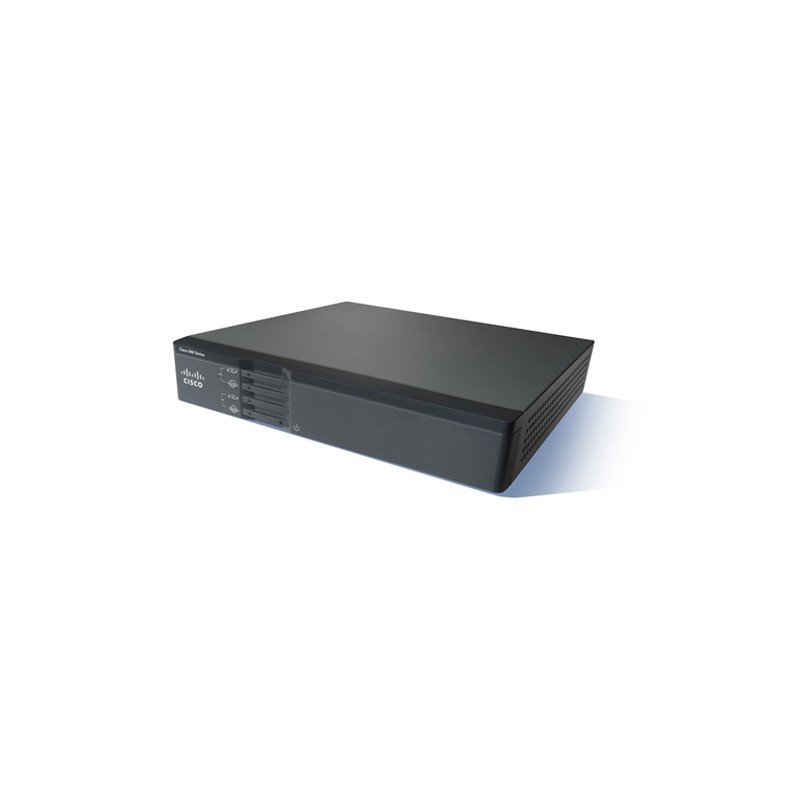

The new Cisco ® 860VAE Series Integrated Services Routers (ISRs) are part of the Cisco Integrated Services Routers Generation 2 (ISR G2) portfolio. Cisco 860VAE routers support Gigabit Etherne t (GE) or very - high - speed DSL 2/asymmetric DSL2+ (VDSL2/ADSL2+) on a single, fixed ISR. The Cisco 860VAE Series can provide cost - effective basic or secure wired or wireless connectivity for a casual or enterprise teleworker as well as serve as managed cust omer premises equipment (CPE) for service providers.
Cisco 860VAE Series ISRs are entry - level, fixed - configuration routers that serve a range of business needs from providing basic connectivity for the casual teleworker to providing s ecure collaboration for the enterprise teleworker. For service providers, the Cisco 860VAE ISRs present an opportunity for tiered basic or secure managed CPE devices. With multiple WAN technologies offered within a single box (GE, ADSL2+, or VDSL2), the Ci sco 860VAE, which shares a common architecture across its variants, allows for consistent management across various deployment scenarios. The Cisco 860VAE ISRs that come in a compact fanless desktop form factor provide improved performance, state - of - the - ar t xDSL features, and significantly better interoperability over the older Cisco 860 Series ISRs.
The Cisco 860VAE Series Integrated Services Routers offer:
- Cost-effective basic or secure connectivity with quality of service (QoS) for teleworkers and managed CPE devices for service providers
- Compact metallic desktop form factor featuring a fanless ISR for convenient home or office deployment
- WAN diversity with either Gigabit Ethernet or Multimode VDSL2/ADSL2+ on the same router to span multiple deployment scenarios with common architecture, embedded management, and consistent configurability
- State-of-the-art xDSL features and interoperability and enhanced ISR performance with services
- Four-port 10/100 Fast Ethernet (FE) managed switch for base models with five VLANs; additionally, one Gigabit Ethernet LAN port for the Cisco 860VAE secure routers
- Three 10/100 Fast Ethernet switch ports and two Gigabit Ethernet switch ports in the wireless models with 2.4 GHz 802.11n FCC-or ETSI-compliant wireless LAN
AC adapter included |
Yes |
AC input frequency |
50/60 Hz |
AC input voltage |
100-240 V |
Auto MDI/MDI-X |
Yes |
Cabling technology |
10/100/1000Base-T(X) |
Certification |
47 CFR, CISPR22: 2005, EN300386: V1.3.3: 2005, EN55022: 2006, EN61000, ICES-003, KN 22: 2005, VCCI |
Colour of product |
Black |
DC-in jack |
Yes |
Depth |
198 mm |
DHCP client |
Yes |
DHCP server |
Yes |
DSL specification |
VDSL2/ADSL2+ |
Ethernet LAN |
Yes |
Ethernet LAN (RJ-45) ports |
5 |
Ethernet LAN data rates |
10,100,1000 Mbit/s |
Firewall |
Yes |
Flash memory |
64 MB |
Form factor |
1U |
Height |
38.5 mm |
Internal memory |
256 MB |
Internal modem |
No |
LED indicators |
Yes |
MAC address filtering |
Yes |
Management protocols |
SNMPv3, HTTP/HTTPS |
Networking standards |
IEEE 802.1Q,IEEE 802.3ab,IEEE 802.3u |
Non-operating altitude |
0 - 4570 m |
Operating altitude |
0 - 3000 m |
Operating relative humidity (H-H) |
10 - 85 % |
Operating temperature (T-T) |
0 - 40 °C |
Output voltage |
12 V |
Power over Ethernet (PoE) |
Yes |
Power source type |
AC |
Power supply |
60 W |
Quality of Service (QoS) support |
Yes |
Rack mounting |
Yes |
Routing protocols |
BGP,IP,RIP-1,RIP-2 |
Storage relative humidity (H-H) |
5 - 95 % |
Storage temperature (T-T) |
-20 - 65 °C |
Supported network protocols |
IPv6 |
USB ports quantity |
1 |
USB version |
2.0 |
VPN tunnels quantity |
10 |
WAN connection |
ADSL (RJ-11),Ethernet (RJ-45) |
Web-based management |
Yes |
Weight |
2500 g |
Width |
206 mm |
xDSL connection type |
ADSL2+ |
