Cisco® 3900 Series Integrated Services Routers build on 25 years of Cisco innovation and product leadership. The new Cisco Integrated Services Routers Generation 2 (ISR G2) platforms are architected to enable the next phase of branch-office evolution, providing rich-media collaboration and virtualization to the branch office while maximizing operational cost savings. The new routers support new high-capacity digital signal processors (DSPs) for future enhanced video capabilities, high-powered service modules with improved availability, multicore CPUs, Gigabit Ethernet switching with Cisco Enhanced Power over Ethernet (ePoE), and new energy visibility and control capabilities while enhancing overall system performance. Additionally, a new Cisco IOS® Software Universal image and Cisco Services Ready Engine (SRE) module enable you to decouple the deployment of hardware and software, providing a flexible technology foundation that can quickly adapt to evolving network requirements. Overall, the Cisco 3900 Series offers exceptional total cost of ownership (TCO) savings and network agility through the intelligent integration of market-leading security, unified communications, wireless, and application services.



Cisco ISR G2 Voice and Voice Security bundles enable unified communications through a rich signaling and media-processing infrastructure, including a variety of protocols, media interworking, signal and media security, transcoding, conferencing, and quality of service (QoS). You can order these bundles with optional licenses for Cisco Unified Communications Manager Express (Unified CME) or Survivable Remote Site Telephony (SRST).



All the Unified Communications bundles on Cisco 3900 and 2900 Series routers include the new PVDM3, which has been optimized for concurrent voice and video support. The PVDM3 modules support all voice-gateway functions of earlier generations of PVDMs, and they add higher density and more processing power to support emerging rich-media applications.
AC input frequency 47/63 Hz
AC input voltage 100-240 V
Built-in processor Yes
Cabling technology 10/100/1000Base-T(X)
Colour of product Black
Data network Not supported
Depth 476.25 mm
DHCP client No
DHCP server No
Electromagnetic compatibility 47 CFR, Part 15, ICES-003 Class A, EN55022 Class A, CISPR22 Class A, AS/NZS 3548 Class A, VCCI V-3, CNS 13438, EN 300-386, EN 61000 (Immunity), EN 55024, CISPR 24, EN50082-1
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 4
Ethernet LAN data rates 10,100,1000 Mbit/s
Flash memory 256 MB
Form factor 3U
Height 133.35 mm
Input current 7.1 A
Internal memory 1024 MB
LED indicators Yes
Networking standards IEEE 802.1Q,IEEE 802.1ag,IEEE 802.3
Non-operating altitude 0 - 4750 m
On/off switch Yes
Operating altitude 0 - 4000 m
Operating relative humidity (H-H) 5 - 85 %
Operating temperature (T-T) 0 - 40 °C
Power consumption (typical) 150 W
Power source type AC
Quality of Service (QoS) support Yes
Rack mounting Yes
Reset button Yes
Routing protocols BGP,EIGRP,IGRP,IS-IS,OSPF
Safety UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950-1, IEC 60950-1
Security algorithms IPSEC,SSL/TLS
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 70 °C
Supported network protocols IPSec
Supported protocols IPv4, IPv6, OSPF, EIGRP, BGP, IS‑IS, IGMPv3, PIM SM, SSM, DVMRP, IPv4-to-IPv6 Multicast, MPLS, VPN, IPSec, L2TPv3, BFD, IEEE802.1ag, and IEEE802.3ah
Switching protocols MPLS
USB ports quantity 2
USB version 2.0
WAN connection Ethernet (RJ-45)
Weight 27200 g
Width 438.15 mm
xDSL connection type No
Installed SFP modules quantity 2

Download

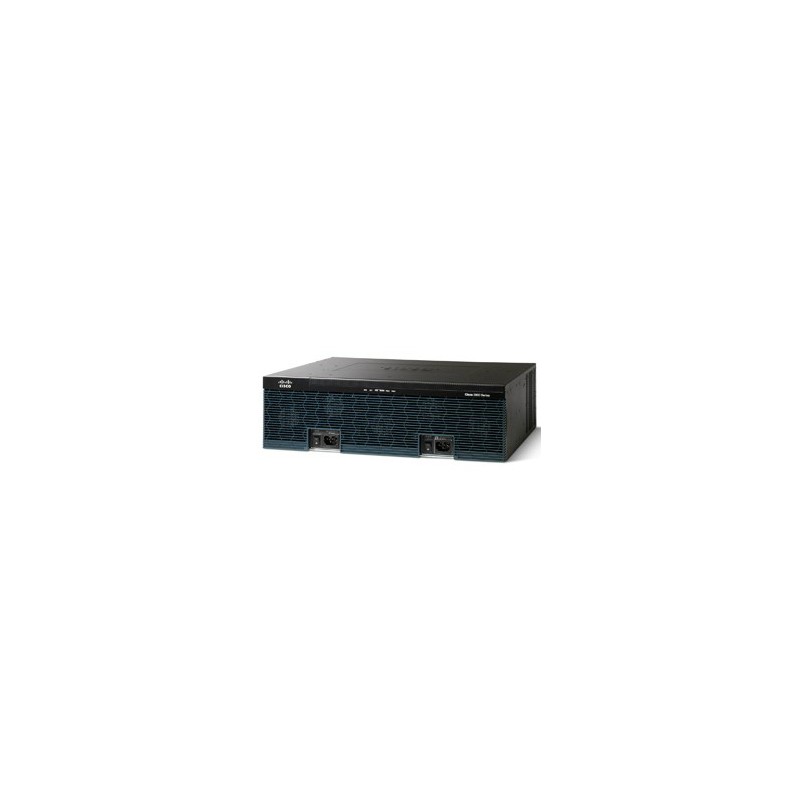

Cisco 3925E

3925E Voice Bundle, PVDM3-64, UC License PAK, 4x Gigabit Ethernet, C3900-SPE200/K9, 3x EHWIC slots, 3DSPx slots, 2 SM slots, 256MB CF, 1 GB DRAM, IP Base
Out of Stock
£12,423.20
Tax excluded
Reference: CISCO3925E-V/K9
Quantity
