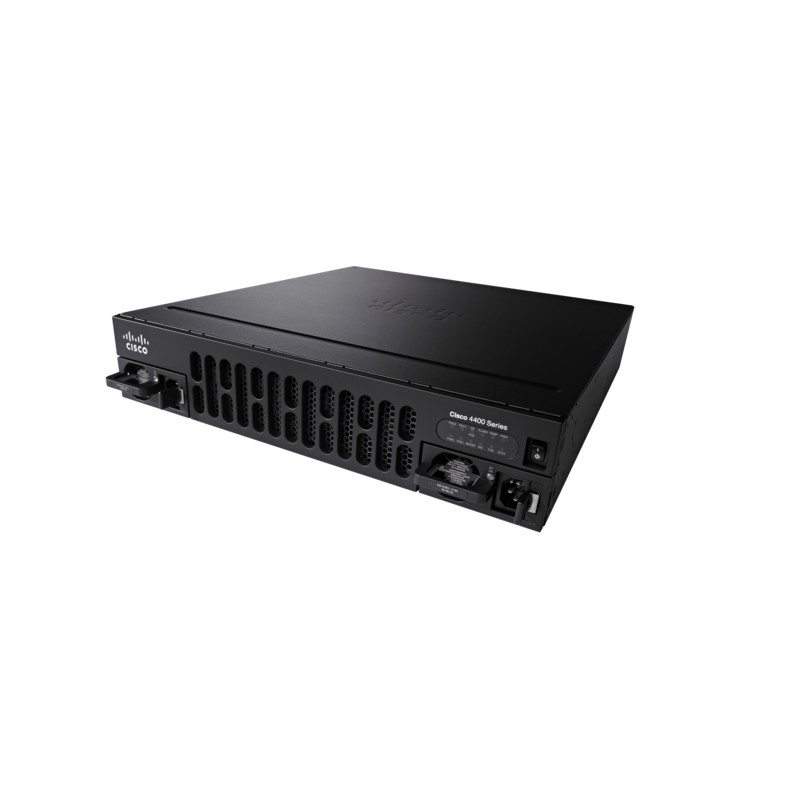

Cisco ISR 4431 AX Bundle
  • Cisco ISR 4431 AX Bundle
  • Cisco ISR 4431 AX Bundle
Cisco® Application Experience (AX) routers revolutionize the delivery of application-aware services in the branch office and WAN, with comprehensive solutions for application visibility, control, and optimization to enable customers to successfully deploy, monitor, and troubleshoot their applications from anywhere.



Cisco Intelligent WAN with Akamai Connect

Cisco Intelligent WAN (IWAN) with Akamai Connect is a fully integrated solution from Cisco and Akamai that provides the next-generation application and network optimization. It integrates the best-in-class advanced WAN optimization and intelligent caching techniques directly into the Cisco Integrated Services Routers with Application Experience (ISR-AX) at the branch office. It effectively extends the Akamai Intelligent Platform across the last mile from the Internet directly into the branch office with edge caching, thus significantly offloading traffic from the WAN and providing a superior user experience over bandwidth-constrained networks. Akamai Connect provides faster content delivery regardless of device, connectivity, or cloud, including the corporate private cloud and the public Internet cloud, where most business traffic traverses. Each Cisco 2911-AX, 2921-AX, and 2951-AX ISR, Cisco 3900-AX and 4400-AX Series ISR-AX, and Cisco 4351 and 4331-AX router bundle also includes the option to add Akamai Connected Cache licenses.
AC input frequency47/63 Hz
AC input voltage100-240 V
Authentication methodRSA (748/1024/2048 bit), ECDSA (256/384 bit) ; Integrity: MD5, SHA, SHA-256, SHA-384, SHA-512
Cabling technology10/100/1000Base-T(X)
Colour of productBlack
DC-in jackYes
Depth507.2 mm
Ethernet LANYes
Ethernet LAN (RJ-45) ports8
Ethernet LAN data rates10,100,1000 Mbit/s
FirewallYes
Flash memory16000 MB
Form factor1U
Height43.9 mm
Input current3 A
Internal memory16384 MB
LED indicatorsYes
MAC address filteringYes
Maximum memory card size32 GB
Networking standardsIEEE 802.1Q,IEEE 802.1ag,IEEE 802.3,IEEE 802.3ah
Non-operating altitude0 - 4570 m
On/off switchYes
Operating altitude0 - 3048 m
Operating relative humidity (H-H)5 - 90 %
Operating temperature (T-T)0 - 40 °C
Package depth730.25 mm
Package height200.2 mm
Package width565.1 mm
Power consumption (typical)65 W
Power source typeAC
Power supply250 W
Quality of Service (QoS) supportYes
Rack mountingYes
Reset buttonYes
Routing protocolsBGP,EIGRP,IS-IS,OSPF
RS-232 ports2
SafetyUL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950-1, IEC 60950-1, GB-4943
Security algorithms128-bit AES,256-bit AES,AES,DES
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 70 °C
Supported network protocolsIPv4, IPv6, RIP, RIPv2, IGMPv3
USB ports quantity3
USB version2.0
WAN connectionEthernet (RJ-45)
Web-based managementYes
Width438.15 mm

Similar products

  • Cisco ISR 4451
    Cisco ISR 4451
  • Cisco C891F-K9
    Cisco C891F-K9
  • Cisco 888
    Cisco 888
  • Cisco C897VAB-K9
    Cisco C897VAB-K9
  • Cisco C891-24X/K9
    Cisco C891-24X/K9

Cisco ISR 4431 AX Bundle

ISR 4431 AX Bundle, with IPBase, APP and SEC licenses

ISR4431-AX/K9

Out of Stock

£17,842.00
£14,868.34 Ex VAT.
