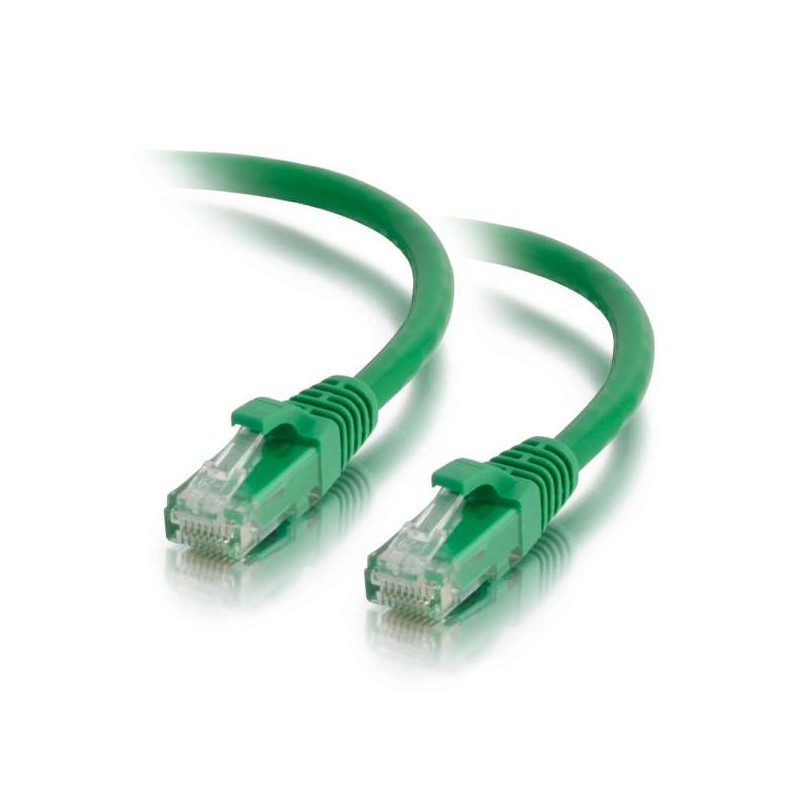

For fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6A TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs are bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimises Near-End Crosstalk (NEXT) levels with a LSZH outer jacket. The moulded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colours to easily colour-code your network installation. Each cable is individually labelled with the length for ease of use.
Connector 1: (1) RJ-45 Male
Connector 2: (1) RJ-45 Male
- Low Smoke Zero Halogen (LSZH) cable Jacketing
- Snagless booted design for network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Snagless booted design protects clips when plugging and unplugging
- Standard RJ45 connectors and unshielded twisted pair wires
- Available in various colours to colour-code a network
- Available in lengths up to 5m
AWG wire size |
24 |
Cable colour |
Green |
Cable length |
5 m |
Cable shielding |
U/UTP (UTP) |
Cable standard |
Cat6a |
Cabling technology |
10/100/1000Base-T(X) |
Certification |
CE |
Colour of product |
Green |
Connector 1 |
RJ-45 |
Connector 2 |
RJ-45 |
Connector contacts plating |
Gold |
Gender |
Male/Male |
Input impedance |
100 Ω |
Jacket material |
Low smoke zero halogen (LSZH) |
Networking standards |
IEEE 802.3,IEEE 802.5 |
Outer diameter |
5.3 mm |
Package type |
Polybag |
Quantity per pack |
1 |
Weight |
200 g |
Specific References
- EAN13
- 0757120825128
