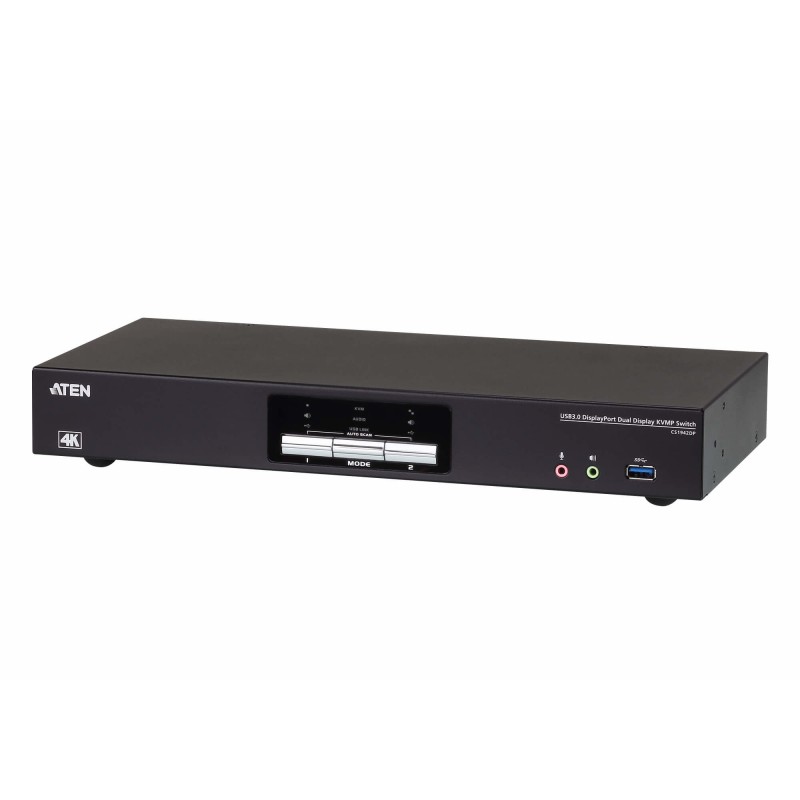

Aten CS1942DP KVM switch Black
  • Aten CS1942DP KVM switch Black
  • Aten CS1942DP KVM switch Black
  • Aten CS1942DP KVM switch Black
  • Aten CS1942DP KVM switch Black
  • Aten CS1942DP KVM switch Black
  • Aten CS1942DP KVM switch Black
The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.



Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.



Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.



- Superior video quality – 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates

- Quad-Display – Easily connect two CS1942DP units for a second dual-screen setup controlled through a single connection

- Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector

- DisplayPort Dual – Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
AC adapter included Y
Built-in display N
Cables included Audio (3.5mm),DisplayPort to Mini DisplayPort,USB
Console ports 3.5mm headphone,3.5mm mic,DisplayPort,USB A
Console USB ports quantity 2
Daisy chain Y
DC input voltage 12 V
DC-in jack Y
Depth 335 mm
DisplayPort version 1.2
DisplayPorts quantity 6
Ethernet LAN (RJ-45) ports 1
Firmware upgradeable Y
HD type 4K Ultra HD
HDCP Y
Headphone outputs 4
Height 44 mm
Keyboard port type USB
Manual Y
Material Metal
Maximum resolution 4096 x 2160 pixels
Mouse port type USB
Number of computers controlled 2
Number of microphone inputs 4
Operating relative humidity (H-H) 0 - 80 %
Operating temperature (T-T) 0 - 50 °C
Power source DC
Push button Y
Rack mounting No
Scan interval 1,5,99 s
Storage temperature (T-T) -20 - 60 °C
Video port type DisplayPort
Weight 1540 g
Width 156.6 mm
USB 3.0 (3.1 Gen 1) Type-A hub ports quantity 2
USB hub Y
Hot keys Y
Video bandwidth 60 Hz
Product colour Black
USB 3.0 (3.1 Gen 1) Type-B ports quantity 2
Auto scan delay (min) 1 s
Auto scan delay (max) 99 s

CS1942DP.pdf

Aten CS1942DP Data Sheet

Aten CS1942DP

CS1942DP, 4096x2160, USB 3.1, DP, 3.5mm, RJ-45, HDCP, 335x156.6x44 mm
Out of Stock
£384.90
£320.75 Ex. VAT
Reference: CS1942DP
Quantity
