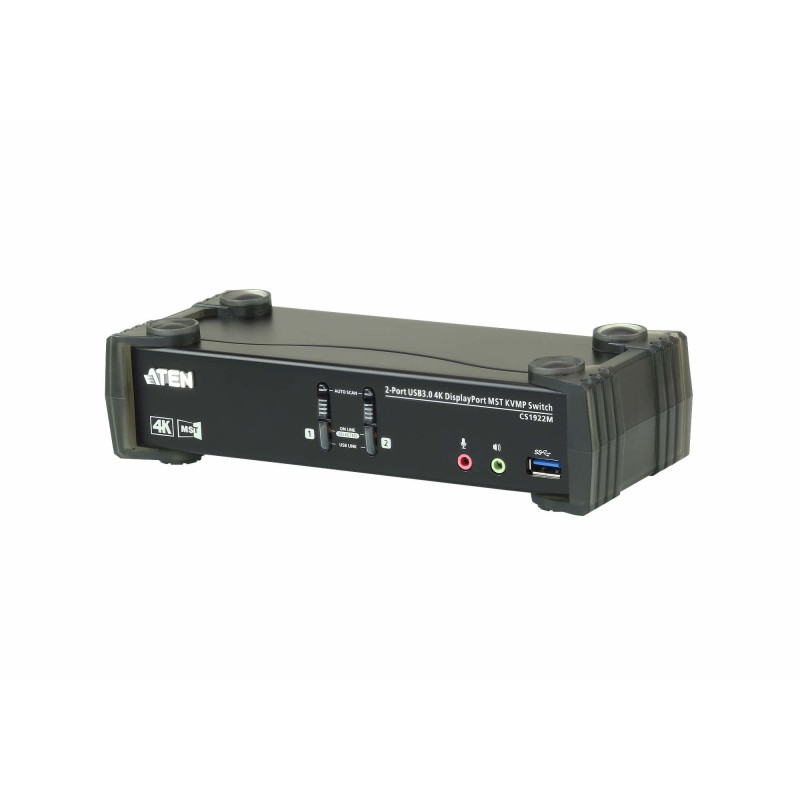

Aten CS1922M KVM switch Black
  • Aten CS1922M KVM switch Black
  • Aten CS1922M KVM switch Black
  • Aten CS1922M KVM switch Black
  • Aten CS1922M KVM switch Black
  • Aten CS1922M KVM switch Black
  • Aten CS1922M KVM switch Black
Incorporating the latest Multi-Stream Transport (MST) technology, the CS1922M 2-Port USB 3.0 4K DisplayPort MST KVMP Switch is the world’s first DisplayPort KVM switch with a built-in MST hub. The CS1922M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.



To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1922M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps – allowing you to maximize multitasking operations.



The unique independent switching feature allows the KVM switch’s focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and even allows HD audio transmitted through a DisplayPort source.



World’s First DisplayPort KVM Switch with Built-in MST Hub

- One USB keyboard/mouse and DisplayPort or HDMI monitor control 2 computers and 2 USB peripherals

- Built-in Multi-Stream Transport (MST) hub allows dual displays (DisplayPort / HDMI) from a single DisplayPort source

- Supports MST Mode, Splitter Mode, and Single Port Mode.

- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds

- DisplayPort Dual-Mode (DP++) technology supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter

- Firmware upgradeable

- Hot pluggable – add or remove computers without powering down the switch



Remarkable Audio/Video Experience

- Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)

- DisplayPort 1.2 compliant, HDCP compliant

- Supports HD audio through DisplayPort

- Full bass response for high-quality 2.1 channel surround sound systems



Intelligent Operation

- Computer selection via front panel pushbuttons, hotkeys, mouse, and RS-232 commands

- Independent switching of KVM, USB hub, and Audio focus

- Power On Detection – if a computer is powered off, the CS1922M automatically switches to the next powered-on computer

- Auto Scan Mode for monitoring all computers



Versatile Compatibility

- Keyboard emulation/bypass feature supports most gaming keyboards

- Mouse emulation/bypass feature supports most mouse drivers and multifunction mice

- Multi-platform support – Windows, Mac and Linux

- Multilingual keyboard mapping supports English, Japanese, French and German keyboards



- One USB keyboard/mouse and DisplayPort or HDMI monitor control 2 computers and 2 USB peripherals

- Built-in Multi-Stream Transport (MST) hub allows dual displays (DisplayPort / HDMI) from a single DisplayPort source

- Supports MST Mode, Splitter Mode, and Single Port Mode

- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds

- DisplayPort Dual-Mode (DP++) technology supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter

- Firmware upgradeable

- Hot pluggable – add or remove computers without powering down the switch

- Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)

- DisplayPort 1.2 compliant, HDCP compliant

- Supports HD audio through DisplayPort

- Full bass response for high-quality 2.1 channel surround sound systems

- Computer selection via front panel pushbuttons, hotkeys, mouse, and RS-232 commands

- Independent switching of KVM, USB hub, and Audio focus

- Power On Detection – if a computer is powered off, the CS1922M automatically switches to the next powered-on computer

- Auto Scan Mode for monitoring all computers

- Keyboard emulation/bypass feature supports most gaming keyboards

- Mouse emulation/bypass feature supports most mouse drivers and multifunction mice

- Multi-platform support – Windows, Mac and Linux

- Multilingual keyboard mapping supports English, Japanese, French and German keyboards
AC adapter included Y
Built-in display N
Cables included Audio (3.5mm),DisplayPort,USB
Console ports 3.5mm headphone,3.5mm mic,DisplayPort,HDMI,USB A
DC-in jack Y
Depth 210 mm
DisplayPort version 1.2
DisplayPorts quantity 3
HD type 4K Ultra HD
HDMI ports quantity 1
Height 55.5 mm
Keyboard port type USB
LED indicators Y
Manual Y
Material Metal,Plastic
Maximum resolution 4096 x 2160 pixels
Mouse port type USB
Number of computers controlled 2
Operating relative humidity (H-H) 0 - 80 %
Operating temperature (T-T) 0 - 50 °C
Output voltage 5 V
Power consumption (typical) 3.44 W
Power source DC
Push button Y
RoHS compliance Y
Scan interval 1,99 s
Storage temperature (T-T) -20 - 60 °C
USB connector type USB Type-A,USB Type-B
Video port type HDMI/DisplayPort
Weight 730 g
Width 88 mm
Video bandwidth 60 Hz
Product colour Black

Specific References

EAN13
4719264645822

CS1922M.pdf

Aten CS1922M Data Sheet

Aten CS1922M

2 port, USB, DP, HDMI, 3.5mm, RJ-11, 2x Pushbutton, 4096 x 2160 60Hz, DC 5V, 210x88x55.5 mm
Out of Stock
£469.61
£391.34 Ex. VAT
Reference: CS1922M
Quantity
