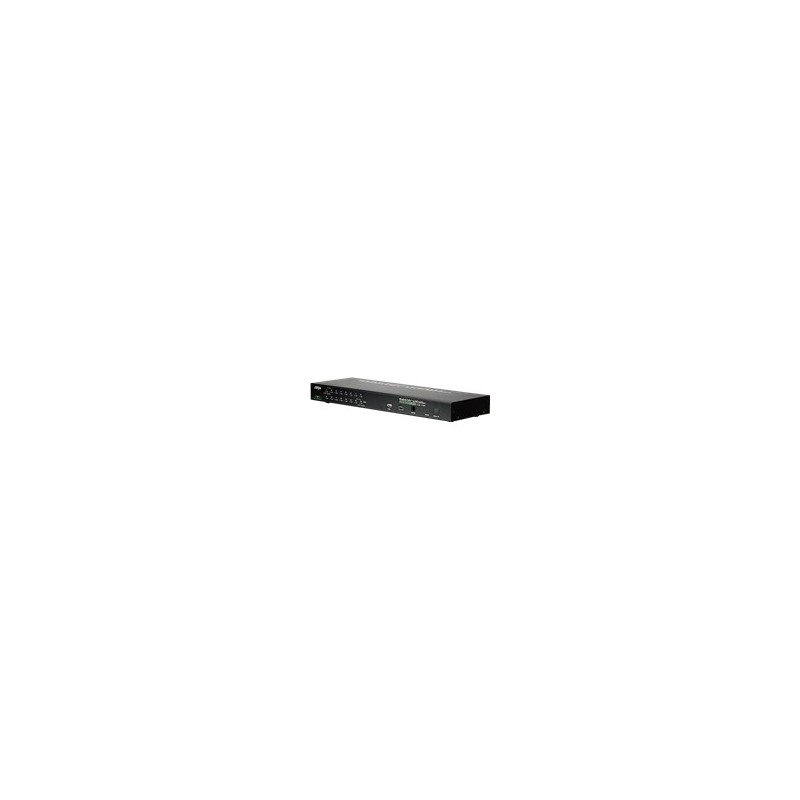

Aten CS1716I
  • Aten CS1716I
  • Aten CS1716I
  • Aten CS1716I
  • Aten CS1716I
Features

Management

- Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus

- Up to 32 concurrent logins

- Multilanguage web UI support featuring a tree-structured local and remote OSD

- Adjustable video quality for flexible adaptation to diverse network environments

- Auto Scan feature for monitoring user-selected computers

- Broadcast mode; operations simultaneously performed on all selected computers (software installation, system-wide shutdown, etc.).

- Firmware upgradable

- Backup and restore configuration and user account settings

- Event logging

- Enable/disable browser access

- IPv6 capable



Ease-to-Use Interface

- Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multilanguage interface to minimize user training time and increase productivity

- Multiplatform client support (windows, Mac OS X, Linux, Sun)

- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)

- Port names automatically reconfigured when station sequence is changed

- Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view

- Windows client and Java client software support; Java client works with all operating systems



Advanced Security

- Secure keyboard/mouse/video transmission via RC4 128 bit encryption

- 128 bit SSL browser access

- Two level password security - up to 64 user accounts with separate profiles for each

- External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory

- Support for IP/MAC Filter

- Local and remote access logged and authenticated



Virtual Remote Desktop

- Resizable remote desktop window

- Message board allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions

- Mouse DynaSync™

- On-screen keyboard with multilanguage support

- BIOS-level access



Hardware

- 16-port remote access KVM switch - monitor and control up to 16 computers from a single KVM console

- Daisy chain up to 15 additional units - control up to 256 computers from a single console*

- Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position

- Hot pluggable - add or remove computers without having to power down the switch

- Multiplatform support - Windows, Linux, Mac, and Sun

- Front panel USB hub allows connected computers to access USB peripherals

- Dual Interface - supports PS/2 or USB keyboard and mouse computer connections with automatic interface detection

- USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere

- Supports USB keyboards for PC, Mac and Sun

- Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions

- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution

- Rack mountable in a 19" (1U) system rack



Package Content

1x CS1716i KVM Switch

1x 2L-5202P PS/2 KVM Cable

1x 2L-5202U USB KVM Cable

1x LIN5-27X6-U21G Console Cable

1x Firmware Upgrade Cable

1x Mounting Kit

1x Foot Pad Set (4 pcs)

1x 0AD6-1605-24EG Power Adapter

1x Software CD

1x User Instructions
AC adapter included Yes
Browser supported IE, Mozilla, Firefox, Safari, Opera, Netscape
Built-in display No
Cables included KVM
Colour depth 24 bit
Colour of product Black
Compatible operating systems Windows, Mac OS X, Linux, Sun
Connectivity technology Wired
DC-in jack Yes
Depth 433 mm
Dimensions (WxDxH) 160 x 433 x 44 mm
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Height 44 mm
I/O ports 1 x SPHD-18 M
16 x SPHD-17 F
1 x DB-25 M
1 x DC In
1 x RJ-45 F
1 x RJ-11
1 x USB1.1 A
LED indicators Yes
Manual Yes
Material Metal
Maximum resolution 2048 x 1536 pixels
Number of computers controlled 16
Number of users 32 user(s)
Operating relative humidity (H-H) 0 - 80 %
Operating temperature (T-T) 0 - 50 °C
Plug and Play Yes
Ports quantity 16
Power consumption (typical) 11 W
Power requirements 5.3VDC
Rack mounting Yes
RoHS compliance Yes
Scan interval 255 s
Security algorithms 802.1x RADIUS,SSL/TLS
Storage temperature (T-T) -20 - 60 °C
USB powered No
Weight 3000 g
Width 160 mm

Specific References

EAN13
0672792002144

Aten CS1716I

16-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
Out of Stock
£666.91
Tax excluded
Reference: CS1716I
Quantity
