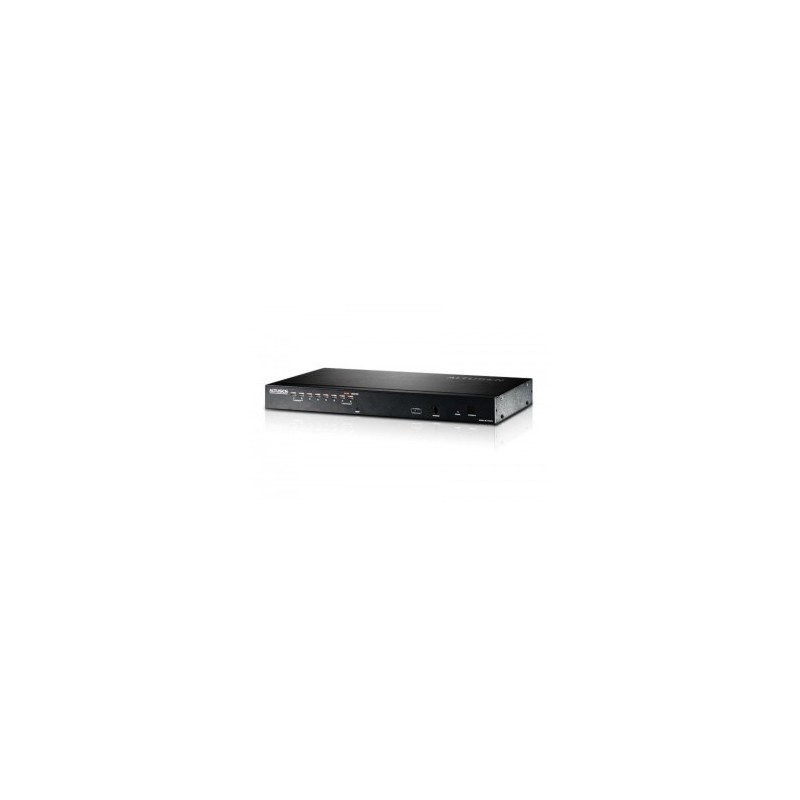

Aten KH1508A
  • Aten KH1508A
  • Aten KH1508A
  • Aten KH1508A
  • Aten KH1508A
Features



- One KVM console control up to 8 directly connected computers

- Space-Saving RJ-45 connectors and Cat 5e/6 cabling

- By daisy chaining up to 31 additional KH1508A switches, as many as 256 computers can be controlled from the original KVM console

- Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides

- Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters*

- Configue port access rights for users on a port - by - port basis

- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)

- Multiplatform support – PC, Mac, Sun, and serial

- Multiple User Accounts -Supports up to 10 user and 1 administrator accounts

- Two-Level Password Security- Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation

- Auto Scan mode enables continuous monitoring of user-selected computers

- Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously

- Adapter ID

- Firmware Upgradeable



*With KVM Adapter Cable KA7000 series.



Package Contents



- 1x KH1508A 8-port Cat 5 High-Density KVM Switch

- 1x Firmware Upgrade Cable

- 1x 0AD8-0C05-24EG Power Cord

- 1x Rack Mount Kit

- 1x Foot Pad Set (4 pcs.)

- 1x User Instructions
AC input frequency 50/60 Hz
Built-in display No
Certification Windows 7
CN ZL 98252015.8, DE 29903667.7, TW 194030, US 6160543, CN ZL 02122202.9, TW 183765, US 7386584, US 7640289, CN ZL 200410031689.0, TW I237762, DE 102004019107, US 7613854, CN ZL 200410042771.3, TW I269992, GB 2412456, FR 0500514, US 7584309, JP
Colour of product Black
Connectivity technology Wired
DC-in jack Yes
Depth 433 mm
Ethernet LAN (RJ-45) ports 8
External power adapter No
Height 44 mm
Keyboard port type PS/2
LED indicators Power,Status
Manual Yes
Material Metal
Maximum resolution 1600 x 1200 pixels
Mouse port type USB
Number of computers controlled 8
Operating relative humidity (H-H) 0 - 80 %
Operating temperature (T-T) 0 - 40 °C
Ports quantity 8
Power consumption (typical) 6 W
PS/2 ports quantity 2
Quick installation guide Yes
Rack mounting Yes
RoHS compliance Yes
Storage temperature (T-T) -20 - 60 °C
USB 2.0 ports quantity 2
Video port type VGA
Weight 2740 g
Width 160 mm

Specific References

EAN13
4710423776753

Aten KH1508A

8-Port Cat 5e/6 KVM Switch
Out of Stock
£335.81
Tax excluded
Reference: KH1508A
Quantity
