| Certification | cUL Listed, FCC Part 15 Class A, ISO 14001, ISO 9001, UL 60950, UL Listed |
| Colour of product | Black |
| Depth | 700 mm |
| Efficiency | 94.7 % |
| Emergency Power Off (EPO) | No |
| Form factor | Rackmount |
| Height | 132 mm |
| Input operation voltage (max) | 239 V |
| Input operation voltage (min) | 117 V |
| Non-operating altitude | 0 - 4500 m |
| Operating altitude | 0 - 999.9 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Output frequency regulation | 60 Hz |
| Output operation voltage (max) | 208 V |
| Output operation voltage (min) | 208 V |
| Output power | 10000 W |
| Output voltage THD | 5 % |
| Package depth | 795 mm |
| Package height | 225 mm |
| Package weight | 28050 g |
| Package width | 595 mm |
| Power supply input frequency | 60 Hz |
| RoHS compliance | Yes |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | 15 - 40 °C |
| Waveform | Sine |
| Weight | 25050 g |
| Width | 483 mm |
| Output power capacity | 10000 VA |
| UPS topology | Double-conversion (Online) |
Specific References
- EAN13
- 0746320096735

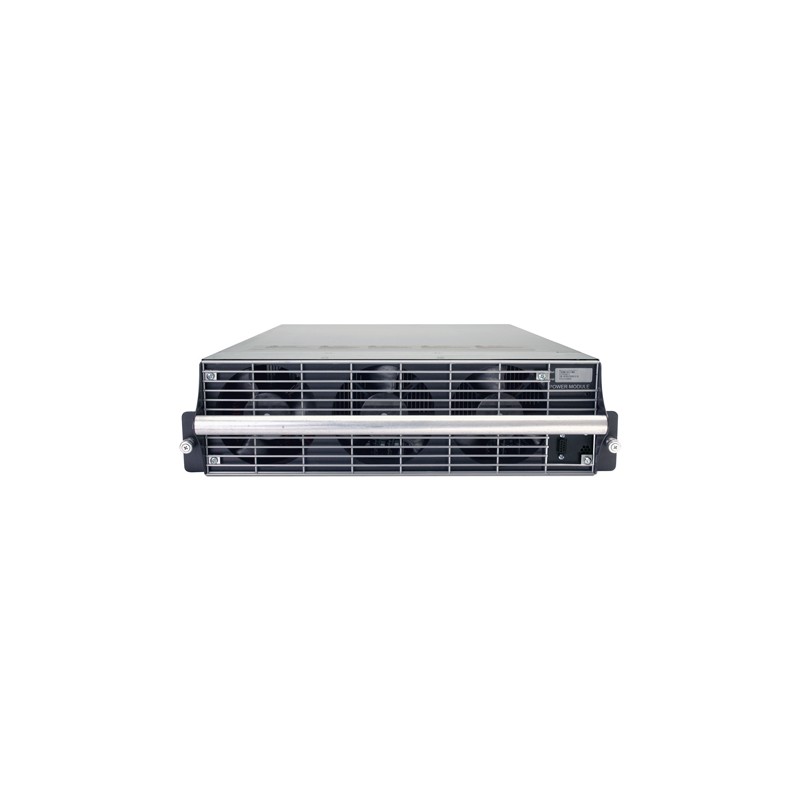

APC SYMMETRA PX
10kW/10kVA, 208V/208V 3PH, Black, 25.05kg
£5,878.72
£4,898.94 Ex. VAT
10kW/10kVA, 208V/208V 3PH, Black, 25.05kg
