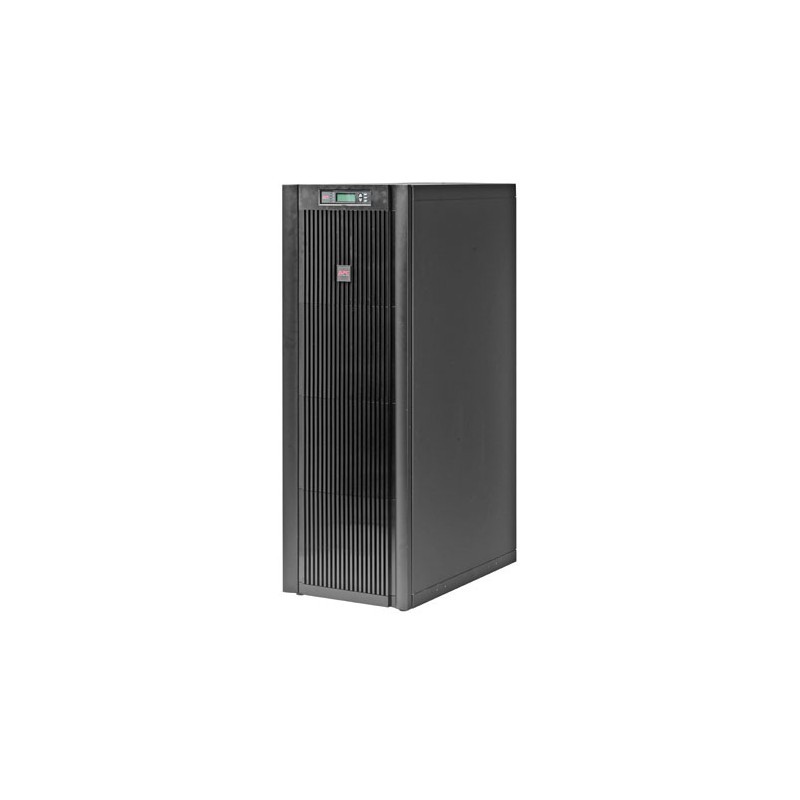

APC Smart-UPS VT 20kVA

Smart-UPS VT 20kVA, 208V, w/2 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable

More details


Out of Stock

Parallel-capacity capable Increases total power capacity by using multiple UPSs simultaneously. Parallel-redundant ... Read More

Free tester with every 5 boxes of cable

New product

£11,774.75 Inc. VAT



  • More Info

  • Details

Parallel-capacity capable

Increases total power capacity by using multiple UPSs simultaneously.

Parallel-redundant capable

Power the connected equipment with multiple UPSs to increase system redundancy

Dual mains input

Increases availability by allowing the UPS to be connected to two separate power sources.

Scalable runtime

Allows additional run time to be quickly added as needed.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS overload condition or fault.

Battery modules connected in parallel

Delivers higher availability through redundant batteries.
AC outlets quantity1
Audible alarmsYes
Battery technologySealed Lead Acid (VRLA)
Battery typeVRLA
CertificationcUL, ISO 14001, ISO 9001, UL 1778
Colour of productBlack
Depth813 mm
Efficiency94 %
Emergency Power Off (EPO)Yes
Form factorTower
Height1499 mm
Input connection type3PH + N + G
InterfaceDB-9 RS-232, SmartSlot
Noise level55 dB
Nominal output voltage120-208 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 999.9 m
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)0 - 40 °C
Output connections1x 3PH + N + G
Output power16000 W
Output power capacity (VA)20000 VA
Output voltage THD5 %
Package dimensions (WxDxH)650 x 1062 x 1643 mm
Package weight475910 g
Storage relative humidity (H-H)0 - 95 %
Weight445000 g
