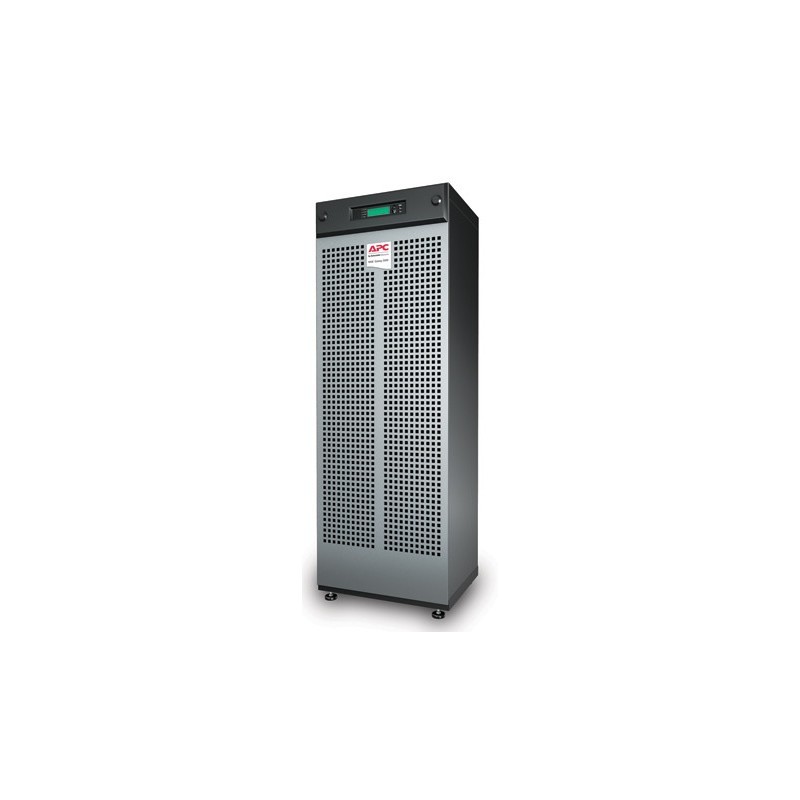

APC MGE Galaxy 3500, 16 kW / 20 kVA,Input 400V 3PH / Output 400V 3PH, Extended runtime model.
Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship instal
Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship instal
| Battery recharge time | 5h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery type | VRLA |
| Certification | CE, EN 50091-2, EN/IEC 62040-3, EN/IEC 62040-1-1, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, ISO 9001, VFI-SS-111 |
| Colour of product | Black |
| Dimensions (WxDxH) | 523 x 838 x 1491 mm |
| Emergency Power Off (EPO) | Yes |
| Input connection type | 5-wire (3PH + N + G) |
| Maximum current | 27A |
| Nominal output voltage | 400V |
| Non-operating altitude | 0 - 15000m |
| Operating altitude | 0 - 999.9m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Output connections | 1 x 4-wire (3PH + G) 1 x 5-wire (3PH + N + G) 1 x Screw Terminals |
| Output power | 16000W |
| Output power capacity (VA) | 20000 VA |
| Output voltage note | +/-1%, +/- 5% |
| Package dimensions (WxDxH) | 650 x 1062 x 1643 mm |
| Package weight | 565 kg |
| Power supply input frequency | 40/70 Hz |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Weight | 535 kg |
Specific References
- EAN13
- 0731304274957
APC MGE Galaxy 3500 20kVA 400V
APC MGE Galaxy 3500 20kVA 400V, 20000 VA, 16000W, 40/70 Hz, Sealed Lead Acid (VRLA), VRLA, 5h
£9,925.66
£8,271.38 Ex. VAT
APC MGE Galaxy 3500 20kVA 400V, 20000 VA, 16000W, 40/70 Hz, Sealed Lead Acid (VRLA), VRLA, 5h
