SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.



APC surge protectors undergo stringent testing by IEEE, and are awarded "let-through ratings", which indicate the maximum voltage level that can possibly reach your equipment after a surge or voltage spike has passed through an electric surge protector. Lower IEEE let-through ratings indicate better protection and performance. The APC Essential SurgeArrest series offers optimal performance with a let-through rating of less than 330V for North American products, and a rating of less than 15% for products sold worldwide. All APC products comply with local agency safety requirements, including UL in North America and CE/Kema/Gost/C-tick/A-Tick/Telepermit in their respective regions.
AC outlets quantity 1 AC outlet(s)
Certification CE
Colour of product White
Depth 42 mm
Height 100 mm
Input frequency 50 Hz
Nominal input voltage 230 V
Non-operating altitude 0 - 4500 m
Number of products included 1 pc(s)
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) 5 - 40 °C
Package depth 88 mm
Package height 106 mm
Package weight 0.2 kg
Package width 70 mm
Peak current, common mode 13000 A
Peak current, normal mode 13000 A
Power plug BS1363A
Quantity per pallet 1008 pc(s)
RoHS compliance Yes
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -5 - 40 °C
Surge energy rating 918 J
Weight 130 g
Width 63 mm

Specific References

EAN13
0731304313618

APC SurgeArrest

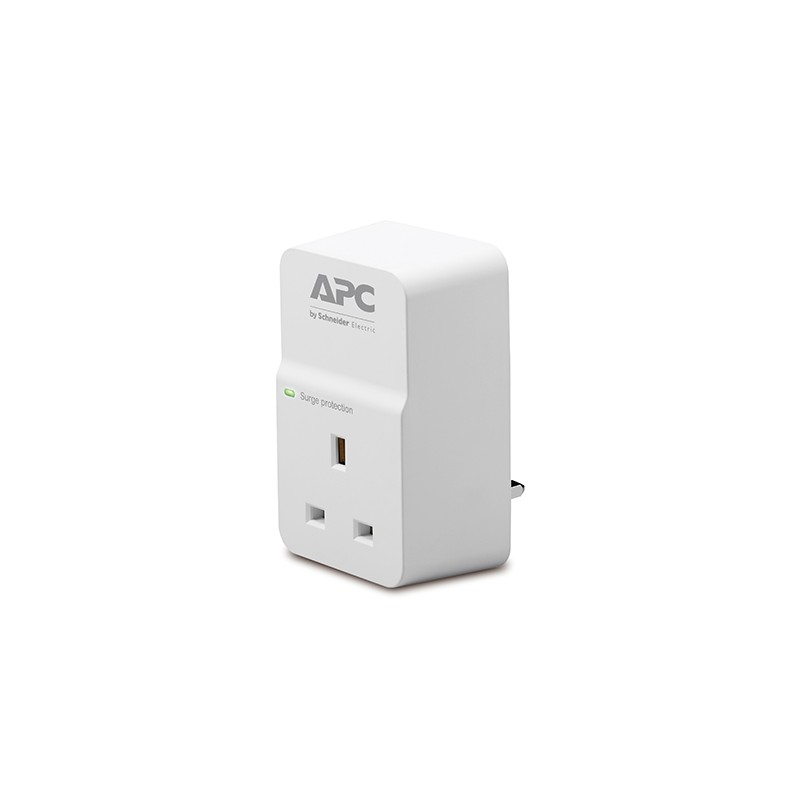

Essential SurgeArrest, 1 outlet, 230V, United Kingdom
Out of Stock
£19.03
£15.86 Ex. VAT
Reference: PM1W-UK
Quantity
