The APC by Schneider Electric service bypass panel (SBP), provides utility power to connected
equipment during UPS maintenance.
equipment during UPS maintenance.
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 230 V |
| Certification | CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778\nREACH: Contains No SVHCs |
| Colour of product | Black |
| Connector(s) | (8) IEC 320 C19 |
| Depth | 572 mm |
| Height | 178 mm |
| Input current | 125 A |
| Manual | Yes |
| Operating altitude | 0 - 4500 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -20 - 50 °C |
| Output voltage note | 220 - 240 V |
| Package depth | 843 mm |
| Package height | 305 mm |
| Package weight | 31360 g |
| Package width | 610 mm |
| Power protection features | Overload |
| RoHS compliance | Yes |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
| Weight | 18780 g |
| Width | 432 mm |
Specific References
- EAN13
- 0731304266969

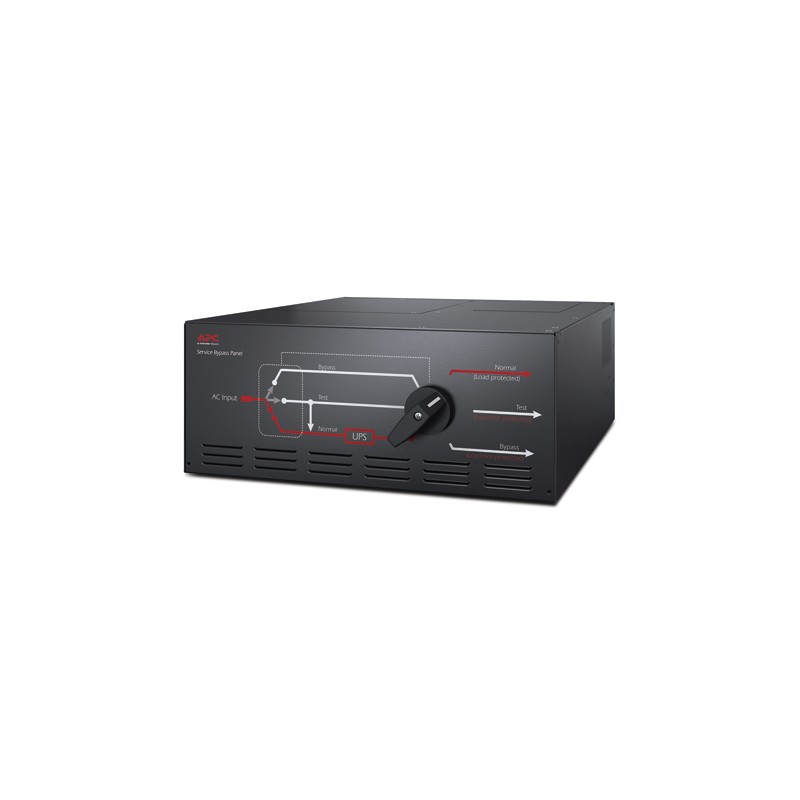

APC Service Bypass Panel
Service Bypass Panel 230V 125A HW input IEC-320 output (8) C19
£2,434.99
£2,029.16 Ex. VAT
Service Bypass Panel 230V 125A HW input IEC-320 output (8) C19
