Transformer for Step-down or Step-up or Isolation
Step down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer
Meets UL Requirements
| Certification | CSA,UL 1778,UL Listed |
| Dimensions (WxDxH) | 445 x 610 x 89 mm |
| Input connection type | Hard Wire 3-wire (2PH + G) |
| Load capacity | 5000 VA |
| Maximum input current per phase | 26 A |
| Nominal input voltage | 208 V |
| Nominal output voltage | 120 V |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Output connections | 1x Hard Wire 3-wire (H N + G) |
| Package dimensions (WxDxH) | 622 x 953 x 254 mm |
| Package weight | 50000 g |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -25 - 65 °C |
| Weight | 43180 g |
| Product colour | Black |
Specific References
- EAN13
- 0731304249153

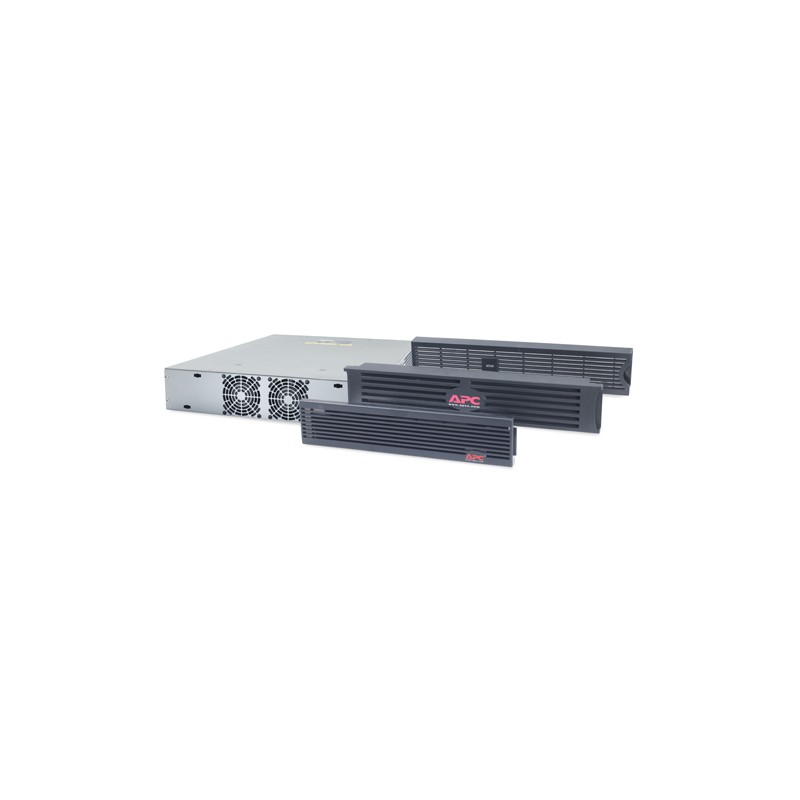

APC Step-Down Transformer RM 2U
Step-Down Transformer RM 2U 208V IN 120V OUT w/Hardwire Input/Output
£21,821.59
£18,184.66 Ex. VAT
Step-Down Transformer RM 2U 208V IN 120V OUT w/Hardwire Input/Output
