19 inch Rack-Mountable
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Resettable circuit breakers
Enables a quick recovery from overload events.
Vertical mounting capability.
Horizontal mounting capability.
| AC input frequency | 50 - 60 Hz |
| Cable length | 3.66 m |
| Dimensions (WxDxH) | 447 x 57 x 44 mm |
| Input connection type | NEMA L5-30P |
| Load capacity | 2880 VA |
| Maximum input current per phase | 30 A |
| Maximum total current draw per phase | 24 A |
| Nominal input voltage | 120 V |
| Nominal output voltage | 120 V |
| Operating temperature (T-T) | -15 - 45 °C |
| Output connections | 10x NEMA 5-20R |
| Storage temperature (T-T) | -25 - 65 °C |
| Weight | 2500 g |
Specific References
- EAN13
- 0731304192930

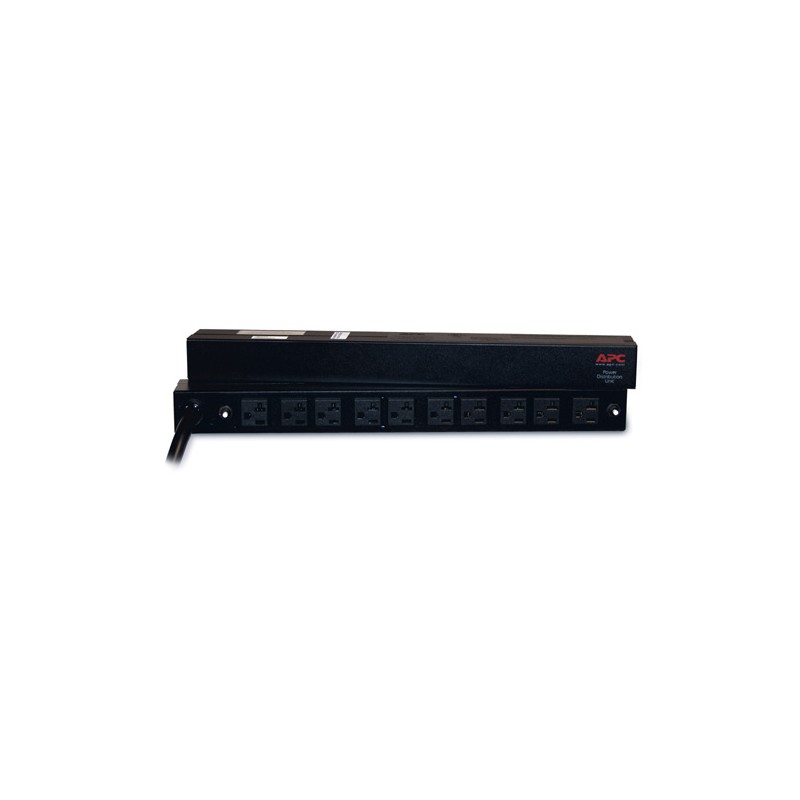

APC Rack PDU, Basic, 1U, 30A, 120V
Basic Rack PDU , Input: 120V , Input Connections: NEMA L5-30P , Cord Length: 12 feet ( 3.66 meters ) , Output: 120V , Output Connections: NEMA 5-20R
£253.66
£211.38 Ex. VAT
Basic Rack PDU , Input: 120V , Input Connections: NEMA L5-30P , Cord Length: 12 feet ( 3.66 meters ) , Output: 120V , Output Connections: NEMA 5-20R
