APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
| AC outlets quantity | 42 AC outlet(s) |
| Cable length | 1.83 m |
| Certification | cUL, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC, ICES-003, UL, VCCI |
| Colour of product | Black |
| Dimensions (WxDxH) | 56 x 51 x 1829 mm |
| Input connection type | CS8365 |
| Input frequency | 50/60 Hz |
| Load capacity | 10000 VA |
| Maximum input current per phase | 35 A |
| Maximum total current draw per phase | 35 A |
| Mounting | vertical |
| Nominal input voltage | 208 V |
| Nominal output voltage | 208 V |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 55 °C |
| Output connections | 36 x IEC 320 C13\n6 x IEC 320 C19 |
| Package dimensions (WxDxH) | 170 x 112 x 2050 mm |
| Package weight | 11360 g |
| PDU types | Metered |
| Power protection features | Overload |
| Rack mounting | 0U |
| RoHS compliance | Y |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -25 - 65 °C |
| Weight | 8520 g |
Specific References
- EAN13
- 0731304289920

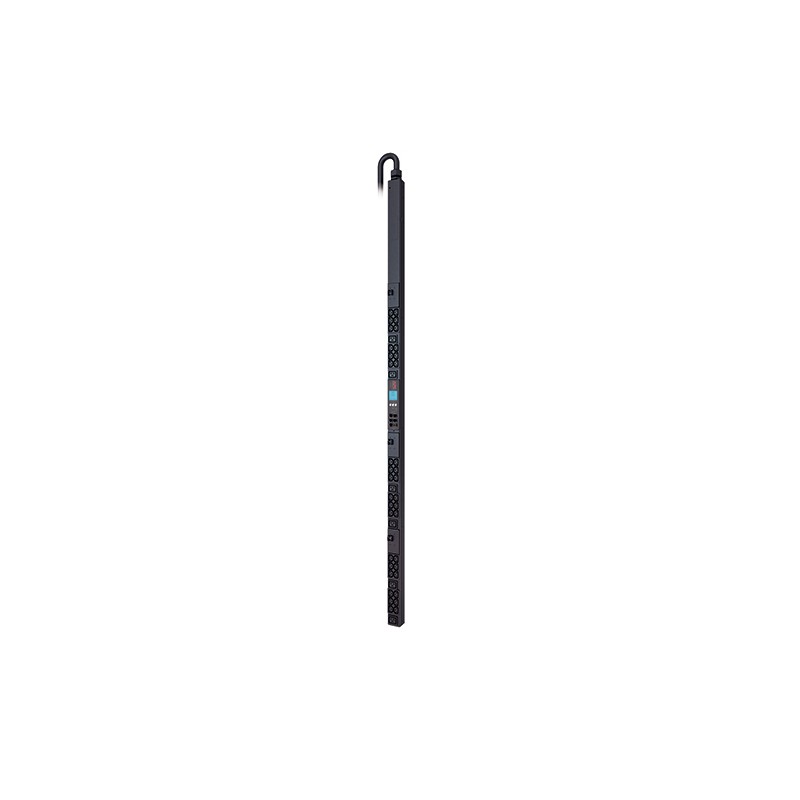

APC AP8868
36 x C13 & 6 x C19, Metered, ZeroU, 10 kVA, 208V, Black
£1,173.24
Tax excluded
36 x C13 & 6 x C19, Metered, ZeroU, 10 kVA, 208V, Black
