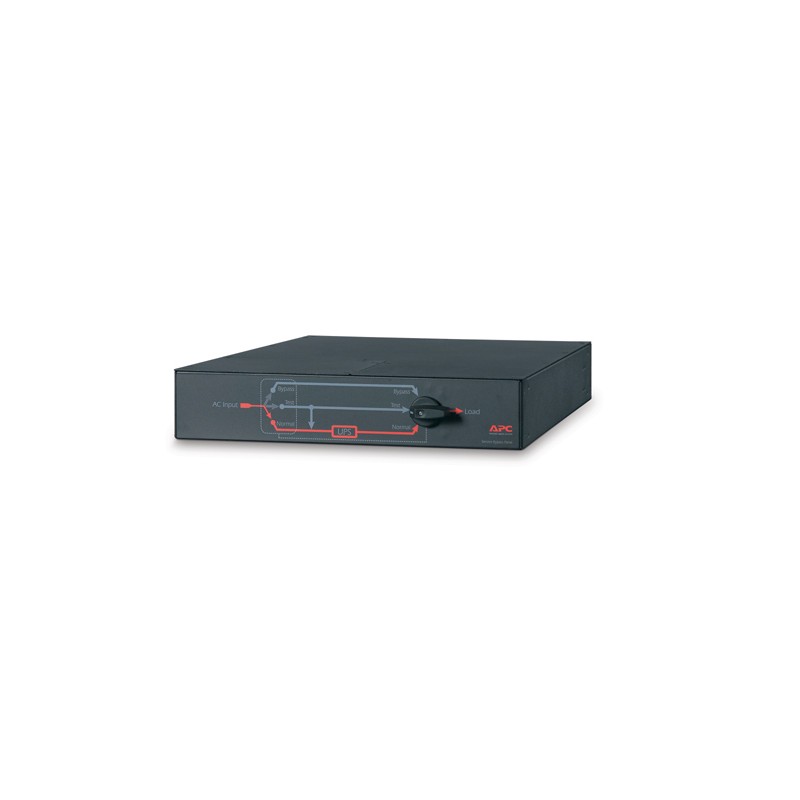

APC Service Bypass Panel - 200/208/240V Black power distribution unit (PDU)
  • APC Service Bypass Panel - 200/208/240V Black power distribution unit (PDU)
  • APC Service Bypass Panel - 200/208/240V Black power distribution unit (PDU)
  • APC Service Bypass Panel - 200/208/240V Black power distribution unit (PDU)
19 inch Rack-Mountable

Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.



Quick Transfer Rate

Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.



Wrap Around System Bypass

(3) Breaker maintenance bypass panel to isolate the UPS from the critical load



Meets UL Requirements
Cable length 3.05 m
Certification CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778
Colour of product Black
Dimensions (WxDxH) 432 x 660 x 89 mm
Input connection type NEMA L6-30P
Input frequency 50/60 Hz
Load capacity 5000 VA
Maximum input current per phase 24 A
Maximum total current draw per phase 24 A
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) -20 - 50 °C
Output connections 2x NEMA L6-20R
2x NEMA L6-30R
Package dimensions (WxDxH) 610 x 991 x 203 mm
Package weight 24540 g
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -25 - 65 °C
Weight 13640 g

APC Service Bypass Panel - 200/208/240V

Service Bypass Panel - 200/208/240V; 30A; BBM; L6-30P input; (2) L6-30R (2) L6-20R output
Out of Stock
£1,117.08
£930.90 Ex. VAT
Reference: SBP5000RMT2U
